Hina ESS

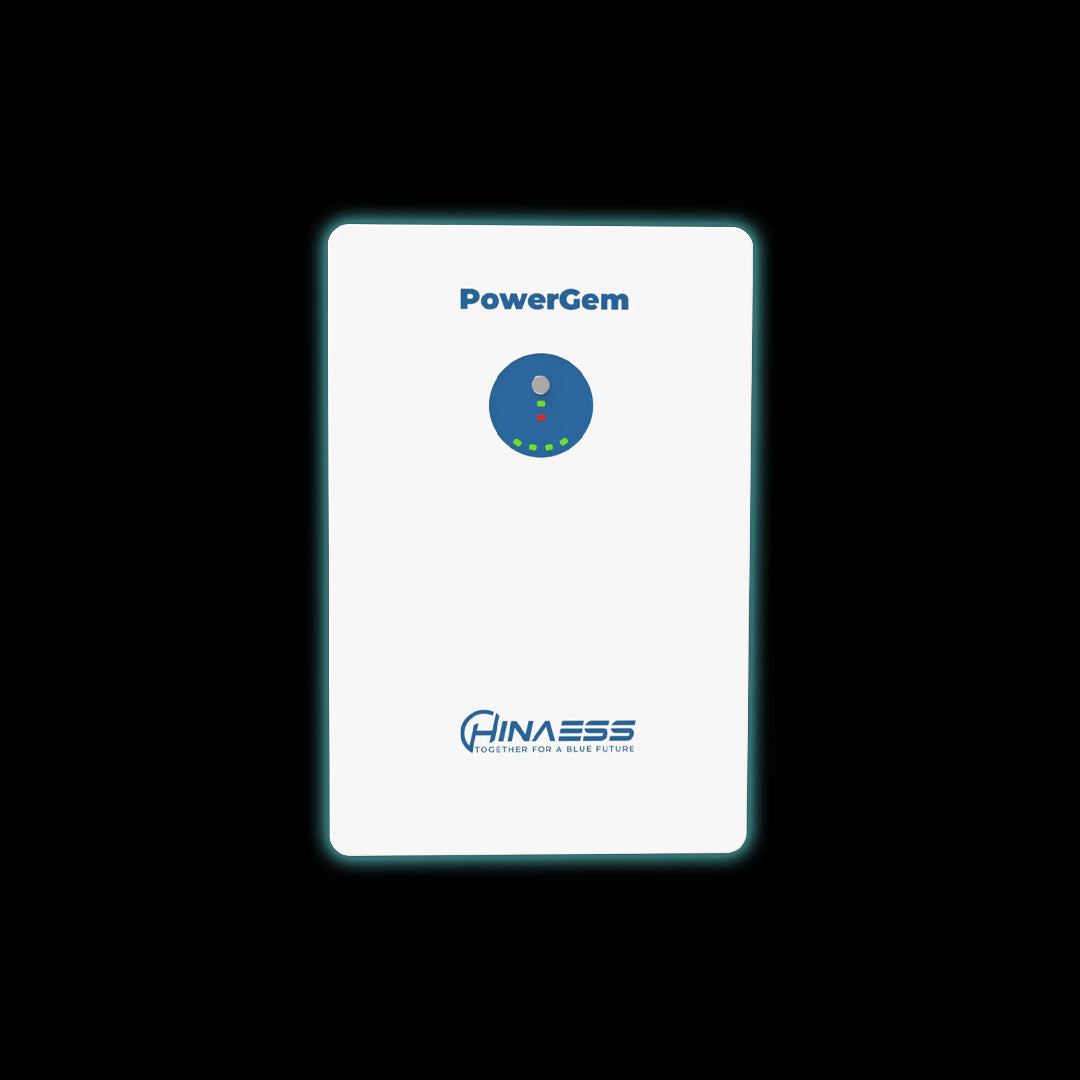

HinaESS 5.12kWh PowerGem Lithium Battery
HinaESS 5.12kWh PowerGem Lithium Battery
Couldn't load pickup availability
CONTACT US FOR RESELLER PRICING
The HinaESS 5.12kWh PowerGem is a compact, high‑performance lithium battery designed for residential solar energy storage, backup power, and hybrid or off‑grid systems. Built with ultra‑safe Lithium Iron Phosphate (LFP) technology and an intelligent Smart BMS, the PowerGem delivers reliable daily cycling, long service life, and scalable performance in a sleek, space‑saving design.
With 1C continuous charge and discharge capability, flexible installation options, and wide inverter compatibility, the PowerGem is ideal for load shedding protection and energy independence.
Key Features and Benefits
- 5.12kWh lithium energy storage capacity suitable for daily cycling
- Ultra‑safe LFP battery chemistry with excellent thermal stability
- 1C continuous charge and discharge rate for high power availability
- Up to 32 batteries expandable in parallel without additional devices
- Smart BMS with auto‑addressing for stable master‑slave operation
- Remote monitoring and firmware upgrade support with backup protection
- Slave battery auto‑recovery ensures uninterrupted system performance
- Elegant enclosure design with floor‑standing or wall‑mount installation
- 10‑year warranty with up to 6000 cycles at 90% depth of discharge
Technical Specifications
Model: PowerGem
Rated Energy: 5.12kWh
Rated Capacity: 100Ah
Nominal Voltage: 51.2V
Charge Voltage: 57.2V
Cell Type: Lithium Iron Phosphate (LFP)
Maximum Charge / Discharge Current: 100A
Peak Discharge Current:
- 105A for 15 seconds
- 150A for 0.5 seconds
Depth of Discharge: 90%
Cycle Life: Up to 6000 cycles
Operating Temperature: -20°C to +55°C
Humidity Range: 5%–85% RH (non‑condensing)
Ingress Protection: IP20
Dimensions: 640 × 428 × 166 mm
Weight: 54 kg
Inverter Compatibility
The HinaESS PowerGem supports CAN and RS485 communication and is compatible with many leading inverter brands, including:
Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Sol‑Ark, SRNE, Must
Safety, Protection and Certification
- Overcharge, over‑discharge, over‑current, voltage, and temperature protection
- Short circuit and reverse connection protection
- Strong active cell balancing and low state‑of‑charge protection
- CE Certified
- UN38.3 Transport Safety
- IEC 62619 Compliant
Ideal Applications
- Residential solar battery storage
- Load shedding and backup power systems
- Hybrid and off‑grid solar installations
- Modular battery banks with future expansion needs
- Homes and small businesses seeking reliable lithium storage
Why Choose the HinaESS PowerGem
The HinaESS 5.12kWh PowerGem combines compact design, high power capability, and long lifespan in a scalable lithium battery solution. With intelligent BMS control, wide inverter compatibility, and proven safety certifications, it is a dependable choice for modern solar and backup energy systems.
Designed for durability, flexibility, and long‑term energy reliability.
Specification Document

-
