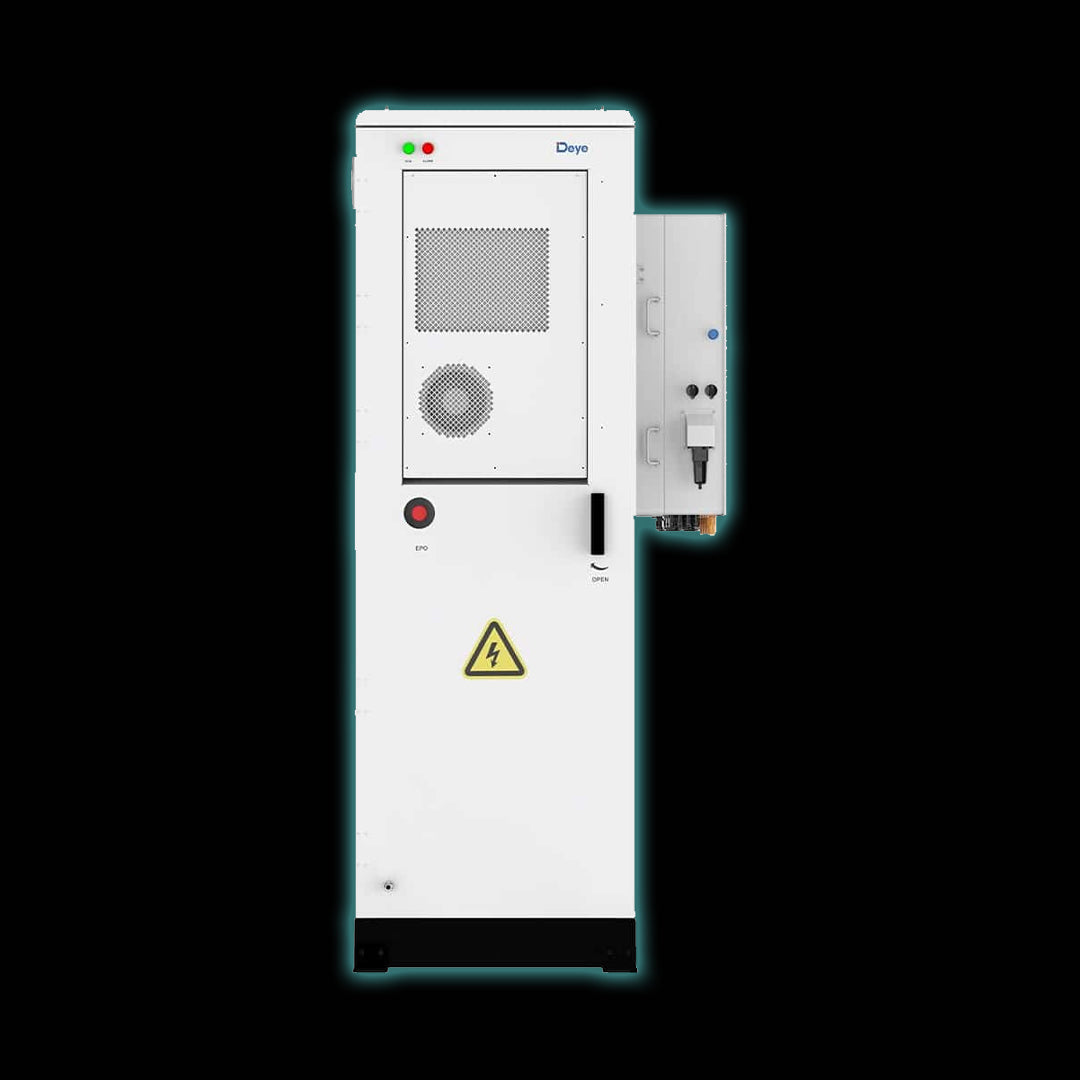

Deye 61.44kWh GE-F60 All in One ESS

The Deye GE-F60 61.44kWh All‑in‑One Energy Storage System is a high‑performance, commercial and industrial lithium battery solution designed for reliable energy storage, peak shaving, backup power, and off‑grid or hybrid operation. Built by Ningbo Deye ESS Technology, this integrated ESS combines LiFePO4 batteries, advanced Battery Management System (BMS), Energy Management System (EMS), and hybrid inverter technologies into a single, factory‑assembled cabinet.

Engineered for demanding environments, the GE‑F60 delivers long cycle life, high efficiency, and advanced multi‑layer safety protection, making it ideal for warehouses, factories, commercial buildings, renewable energy projects, and grid‑support applications.

Key Features and Benefits

High-Capacity Energy Storage
• Total system energy of 61.44kWh with 55.29kWh usable energy at 90% depth of discharge
• High‑voltage system design for improved efficiency and reduced losses

All-in-One Integrated Design
• Lithium Iron Phosphate (LiFePO4) battery modules
• Integrated BMS, EMS, hybrid inverter coordination, and power distribution
• Factory‑tested solution reduces installation time and complexity

Advanced Safety Architecture
• Multiple protection layers including temperature, smoke, and combustible gas detection
• Built‑in aerosol fire suppression system at both battery pack and system level
• Active ventilation and exhaust design
• High‑voltage hazard indicators and alarm systems

High Performance and Longevity
• Rated DC power: 61.44kW
• Recommended charge/discharge current: 50A, nominal 100A
• Peak discharge current: 125A (2 minutes at 25°C)
• Cycle life ≥6000 cycles (EOL 70% at 25°C, 0.5C charge/discharge)
• 10‑year warranty

Scalable and Future‑Ready
• Supports battery expansion up to 360kWh
• Parallel operation support for larger systems
• Suitable for grid‑tied, hybrid, and off‑grid applications
• Black start capability and off‑grid operation support

Technical Specifications

Battery Chemistry: Lithium Iron Phosphate (LiFePO4)
System Energy: 61.44kWh
Usable Energy: 55.29kWh
System Nominal Voltage: 614.4V
Operating Voltage Range: 480–700V
Depth of Discharge (Recommended): 90%
Cycle Life: ≥6000 cycles
Ingress Protection: IP55
Operating Temperature:
• Charge: 0°C to 55°C
• Discharge: -20°C to 55°C

Dimensions (W × D × H): 735 × 1045 × 2235 mm
Weight: Approx. 1010 kg
Installation Type: Rack-mounted cabinet
Communication: CAN 2.0 / RS485

Certifications: UN38.3, CB, CE, CEC, IEC 62040

Typical Applications

• Commercial and industrial energy storage
• Solar and renewable energy integration
• Peak shaving and load shifting
• Backup power and microgrid systems
• Off‑grid and hybrid energy solutions
• Data centers, factories, warehouses, and commercial buildings

Why Choose the Deye GE-F60 ESS

The Deye GE‑F60 stands out as a safe, scalable, and long‑lasting energy storage solution backed by advanced engineering and proven LiFePO4 chemistry. Its all‑in‑one architecture reduces installation risk and operational complexity while delivering reliable power where uptime and safety matter most.

This system is ideal for businesses seeking energy independence, cost optimization, and future‑proof battery storage technology.
