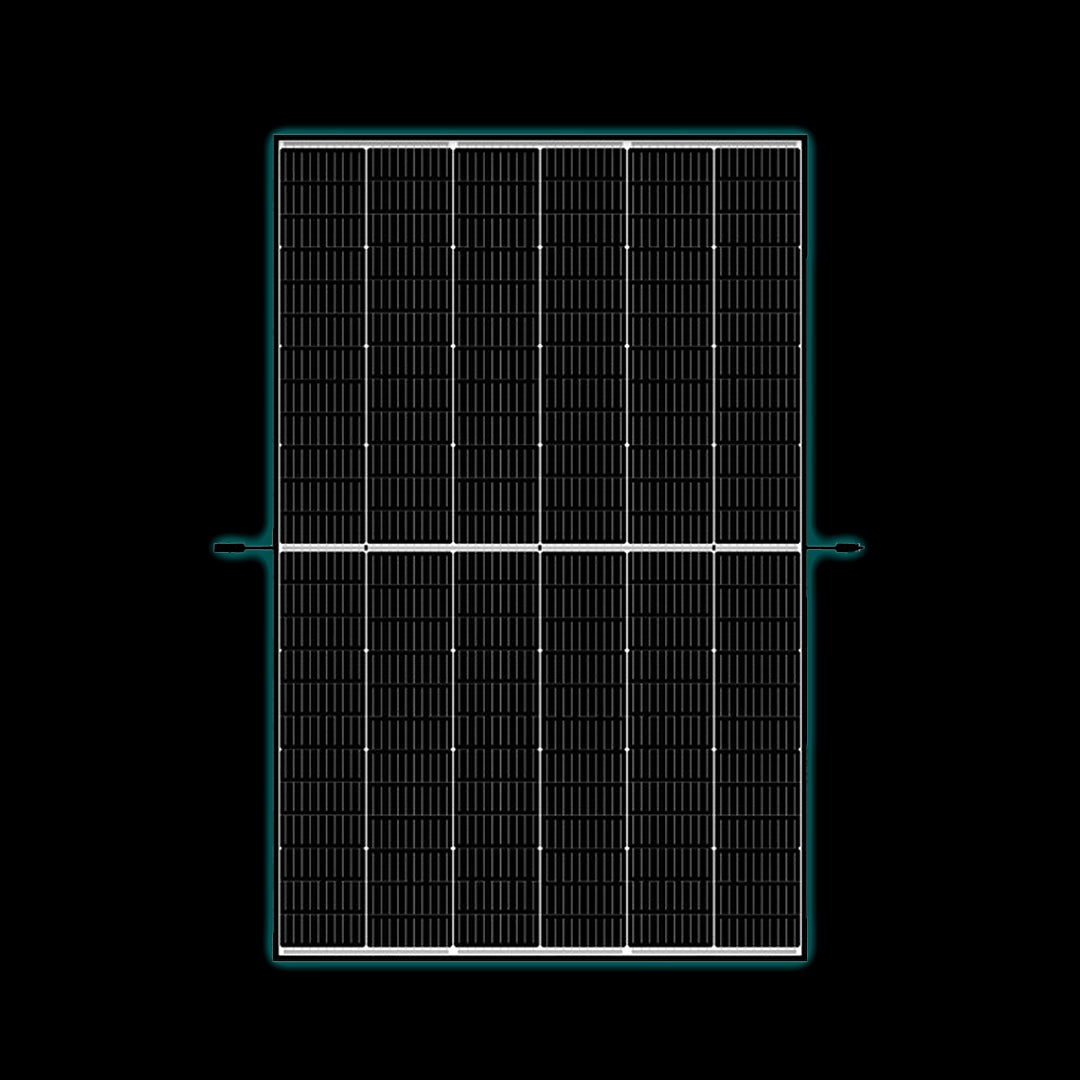

420W Trina Solar DE09R.08

Unlock high-efficiency solar power with the Trina Solar DE09R.08 420W monocrystalline module. Engineered for residential and commercial rooftop systems, this panel combines cutting-edge technology with robust durability to deliver reliable energy performance in any environment.

Key Features:

• High Power Output: Delivers up to 435W with a module efficiency of 21.8%, thanks to advanced high-density interconnect and multi-busbar technology.
• Compact & Powerful: Small form factor ideal for limited space installations without compromising energy yield.
• Durability & Reliability: Built to withstand up to 6000 Pa positive and 4000 Pa negative mechanical loads. PID-resistant and micro-crack minimized via non-destructive cutting.
• Temperature Performance: Low temperature coefficient (-0.34%/°C) ensures better performance in warm climates.
• Certified Quality: IEC61215, IEC61730, UL61730, ISO 9001, ISO 14001, ISO 45001, and ISO 14064 certified.
• Warranty Protection: 15-year product warranty and 25-year performance warranty with only 2% first-year degradation and 0.55% annual power attenuation.

Technical Specifications:

• Module Type: TSM-DE09R.08
• Cell Type: Monocrystalline, 144 cells
• Dimensions: 1762 × 1134 × 30 mm
• Weight: 21.8 kg
• Max Power (Pmax): 420W
• Voltage at Max Power (Vmp): 41.3V
• Current at Max Power (Imp): 10.17A
• Open Circuit Voltage (Voc): 49.7V
• Short Circuit Current (Isc): 10.69A
• Connector Type: MC4 EVO2 / TS4
• Operating Temperature: -40°C to +85°C
• Max System Voltage: 1500V DC

Applications:

Perfect for residential rooftops, commercial installations, and industrial solar systems. Compatible with mainstream inverters, optimizers, and mounting systems.

420W Trina Solar DE09R.08 Specifications Document
