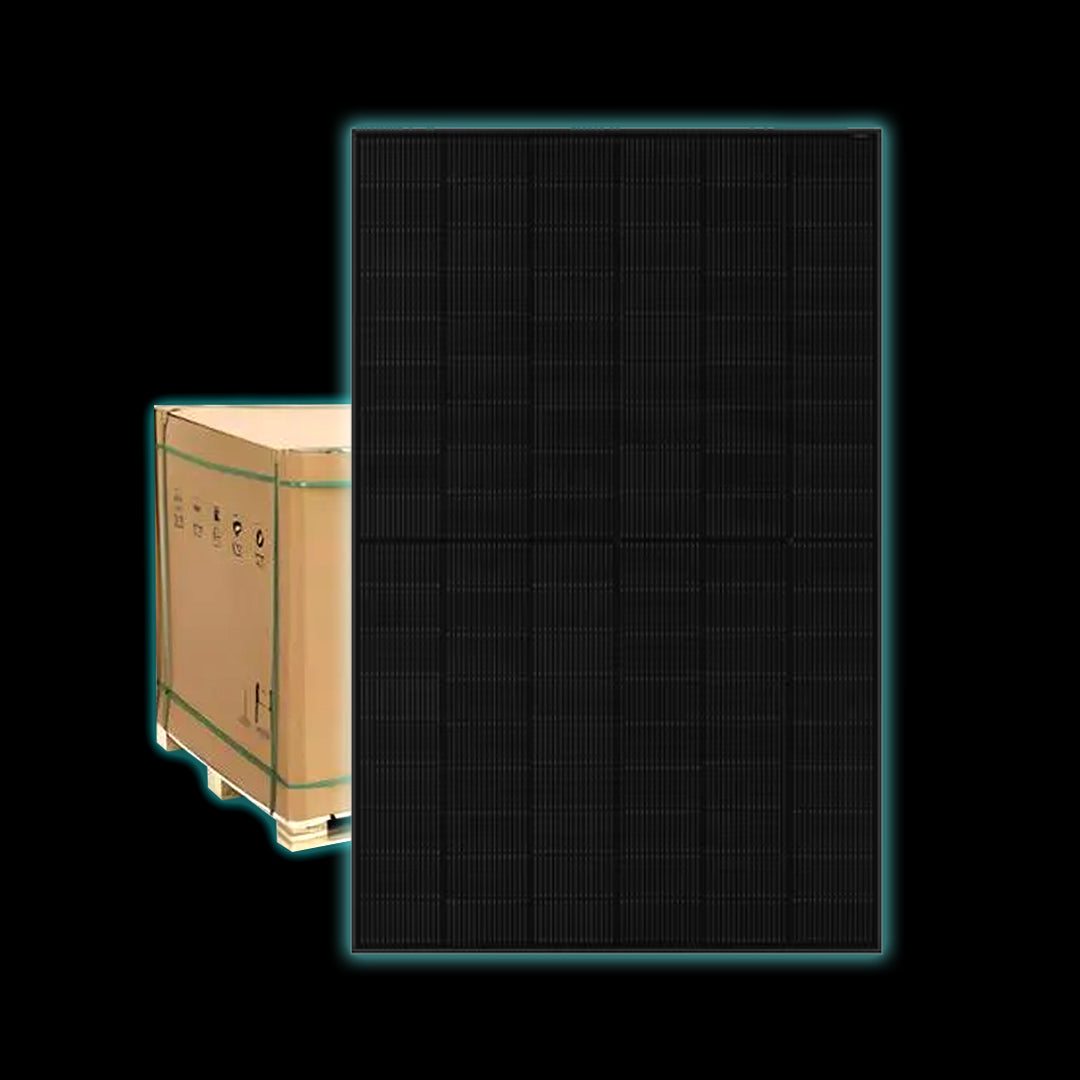

435W JA Solar Full Black (Pallet of 36 Panels)

Boost your solar energy system with the high-efficiency JA Solar 435W Full Black N-Type Bifacial Double Glass Solar Panel. Designed for superior performance and durability, this panel features advanced N-Type cell technology and a bifacial double-glass structure for maximum energy yield.

Key Features:

• Nominal Power: 435 Watts
• Module Efficiency: 22.28%
• N-Type Bifacial Technology: Generates power from both sides for increased output
• Double Glass Construction: Enhances durability and weather resistance
• Full Black Design: Aesthetic appeal for residential and commercial rooftops
• Low Light Performance: Optimized for better response under low irradiance
• Temperature Coefficient: -0.29%/°C for improved performance in hot climates
• Warranty: 25-year product warranty and 30-year linear power output warranty

Technical Specifications:

• Dimensions: 1722 mm (L) × 1134 mm (W) × 30 mm (H)
• Weight: 21.5 kg
• Number of Cells: 108 (6×18)
• Maximum System Voltage: 1500 V
• Connector Type: Stäubli MC4-EVO2
• Cable Length: 1200 mm (+) / 1200 mm (-)
• Snow Load: Up to 5400 Pa
• Wind Load: Up to 2400 Pa

Certifications:

• IEC 61215, IEC 61730
• ISO 9001:2015 (Quality Management)
• ISO 14001:2015 (Environmental Management)
• ISO 45001:2018 (Occupational Health & Safety)
• IEC 62941:2019 (PV Module Manufacturing Quality)

Part of JA Solar’s Deep Blue 4.0 Pro series, this panel is engineered for long-term performance and lower Levelized Cost of Energy (LCOE). Ideal for residential, commercial, and utility-scale installations.
