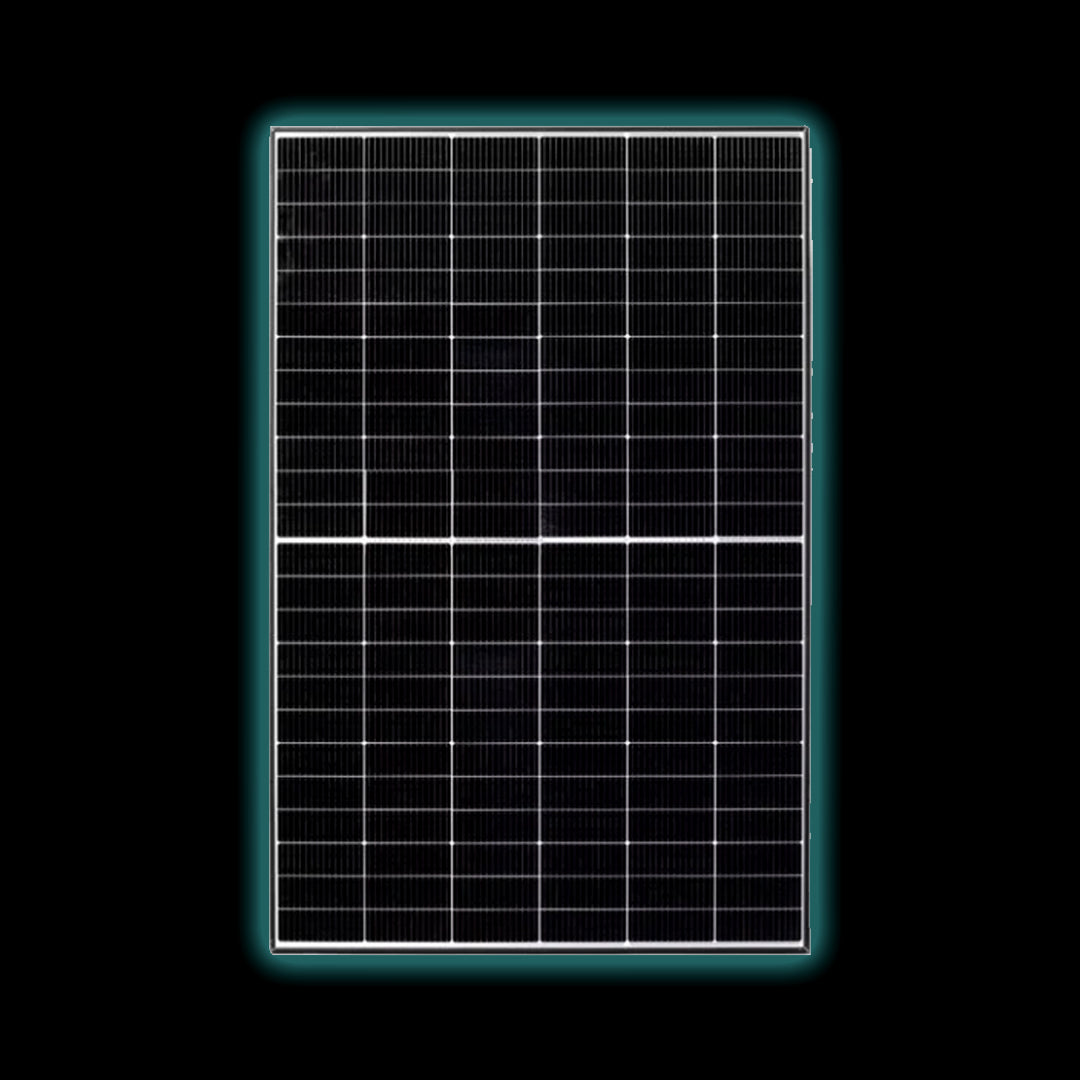

450W Trina Solar Panels TSM-NEG9R.28

The Trina Solar TSM-NEG9R.28 450W panel is a compact, high-performance solution designed for residential and commercial rooftop installations. Built with advanced N-type i-TOPCon cell technology and a dual-glass structure, this module delivers exceptional power output, reliability, and long-term durability.

Key Features:

• High Power Output: Delivers up to 450W with 22.5% module efficiency using high-density interconnect and multi-busbar technology.
• N-Type i-TOPCon Cells: Enables lower degradation rates—only 1% in the first year and 0.4% annually thereafter—ensuring long-term performance.
• Dual-Glass Design: Enhances durability and fire resistance, withstanding up to 5,400 Pa snow load and 4,000 Pa wind load.
• Compact & Lightweight: Ideal for residential and C&I rooftops, with optimized dimensions (1762 × 1134 × 30 mm) and weight (21.0 kg) for easy handling and installation.
• Broad Compatibility: Works seamlessly with mainstream inverters, optimizers, and mounting systems.
• Extended Warranty: Includes a 25-year product workmanship warranty and a 30-year power performance warranty.

Technical Specifications:

• Module Type: TSM-NEG9R.28
• Cell Type: N-type Monocrystalline (144 cells)
• Efficiency: Up to 22.5%
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1500V DC
• Connector Options: MC4 EVO2 / TS4
• Frame: 30mm anodized aluminum alloy, black
• Glass: 1.6mm dual heat-strengthened glass with AR coating
• Packaging: 36 modules per box, 936 per 40' container

Certifications: IEC61215, IEC61730, IEC61701, IEC62716, ISO 9001, ISO 14001, ISO 45001, EU WEEE Compliant

450W Trina Solar Panels TSM-NEG9R.28 Specification Document
