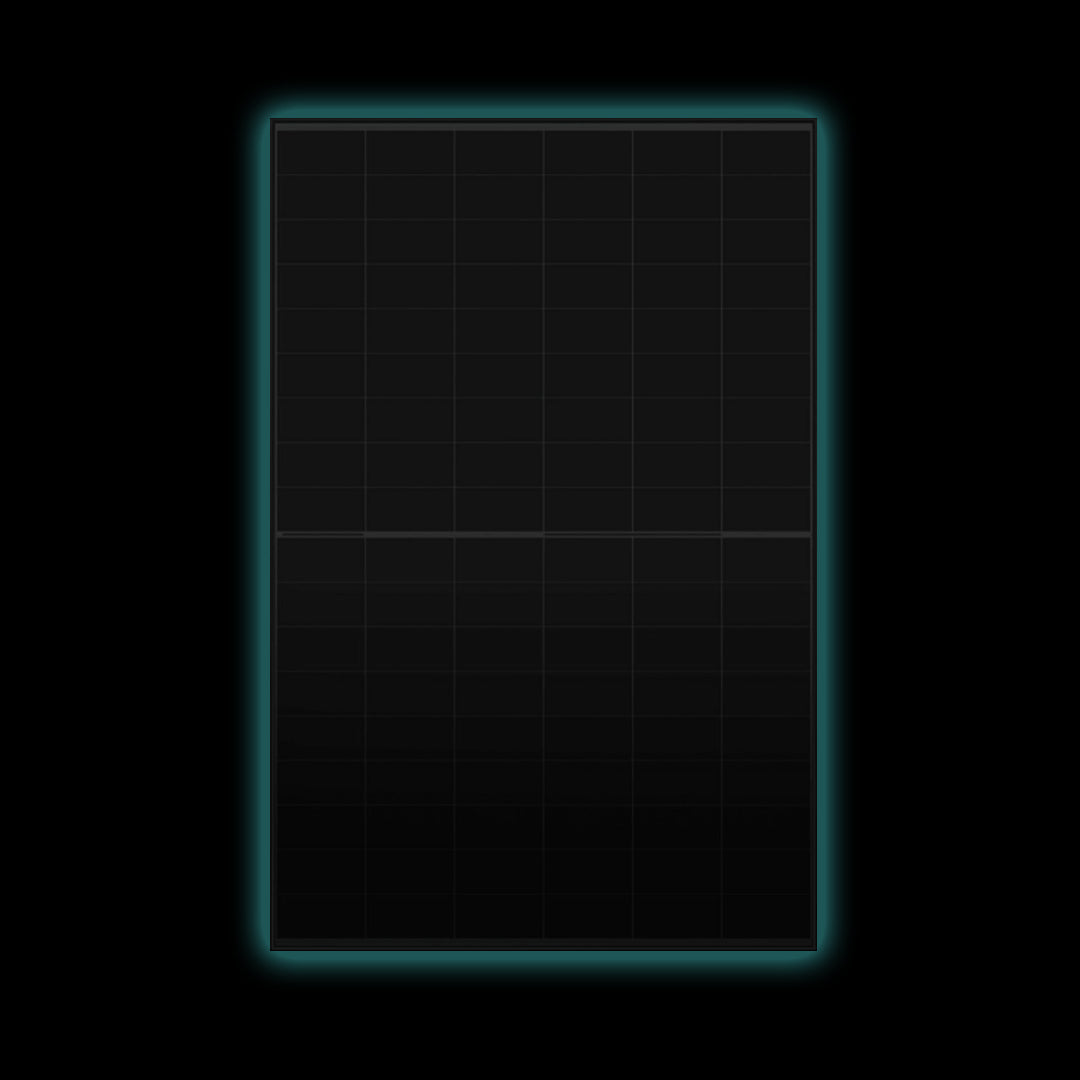

455W Aiko Full Black Solar Panel – Neostar 2S Mono-Glass Module

Upgrade your solar energy system with the AIKO 455W Full Black Mono-Glass Panel, part of the advanced Neostar 2S series. Engineered for high performance and durability, this module features cutting-edge N-Type ABC cell technology and a sleek black anodized aluminum frame, delivering both aesthetic appeal and superior efficiency.

Key Features:

• High Efficiency: 455W output with up to 22.6% module efficiency under STC conditions.
• Advanced Cell Technology: N-Type ABC cells for enhanced performance and reliability.
• Durability: Micro-crack resistance and hail-tested (40mm at 27.5 m/s) for extreme weather resilience.
• Temperature Performance: Excellent temperature coefficients:
  • Isc: +0.05%/°C
  • Voc: -0.22%/°C
  • Pmax: -0.26%/°C
• Low Degradation: ≤1% first-year degradation, ≤0.35% annual degradation from year 2–30.
• Certifications: IEC 61730 (2023), IEC 61215 (2021), ISO 9001, ISO 14001, ISO 45001.
• Warranty: 25-year product warranty and 30-year linear performance warranty.
• Design: Full-black aesthetic with no front grid, ideal for residential and commercial installations.

Specifications:

• Dimensions: 1757 × 1134 × 30 mm
• Weight: 21.5 kg ±3%
• Connector: Staubli EVO2
• Junction Box: IP68 rated with three bypass diodes
• Cable Length: 1200 mm (customizable)
• Maximum System Voltage: DC1500V
• Static Load Capacity: Front 5400Pa / Back 2400Pa
• Fire Rating: IEC Class C

Packaging:

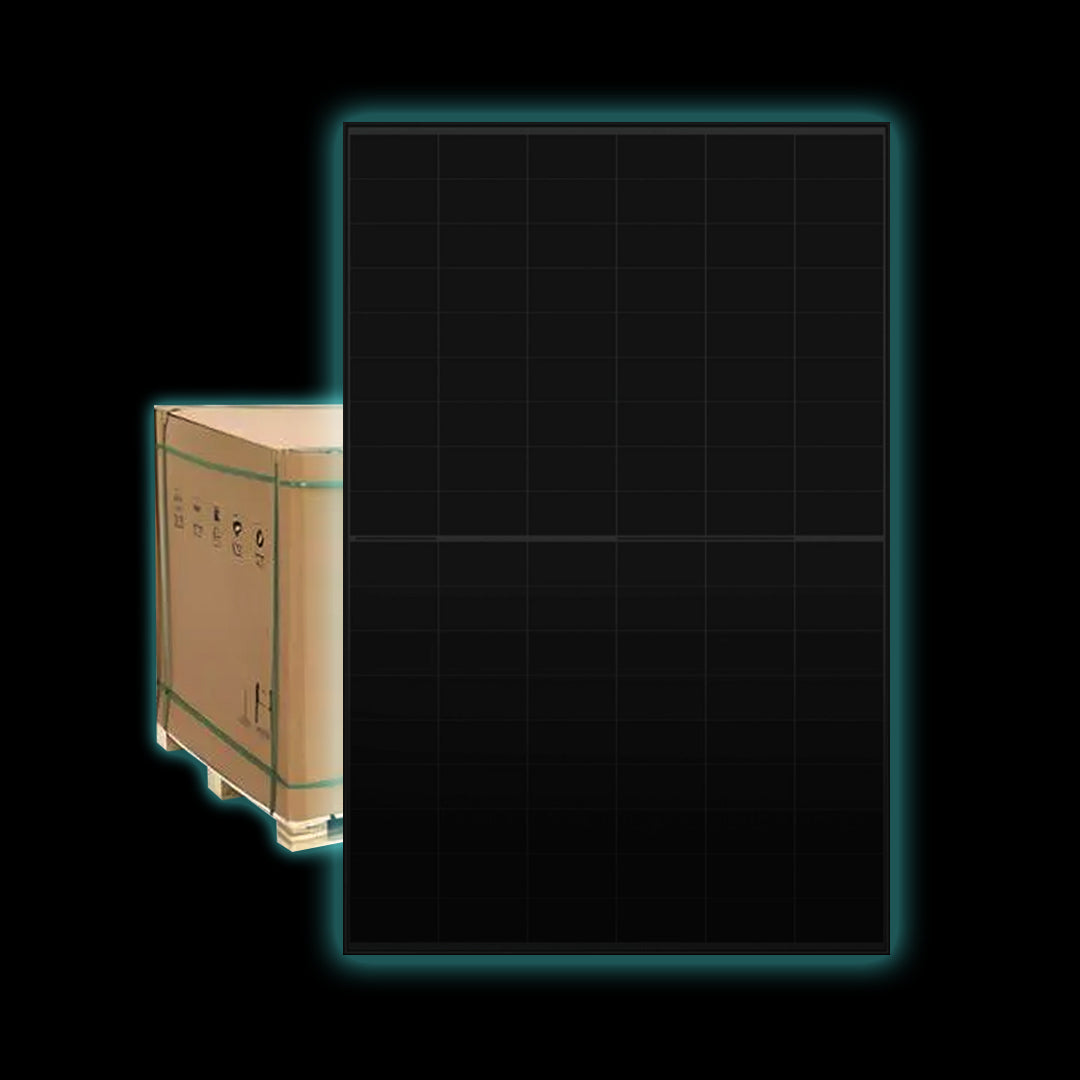

• 36 panels per pallet

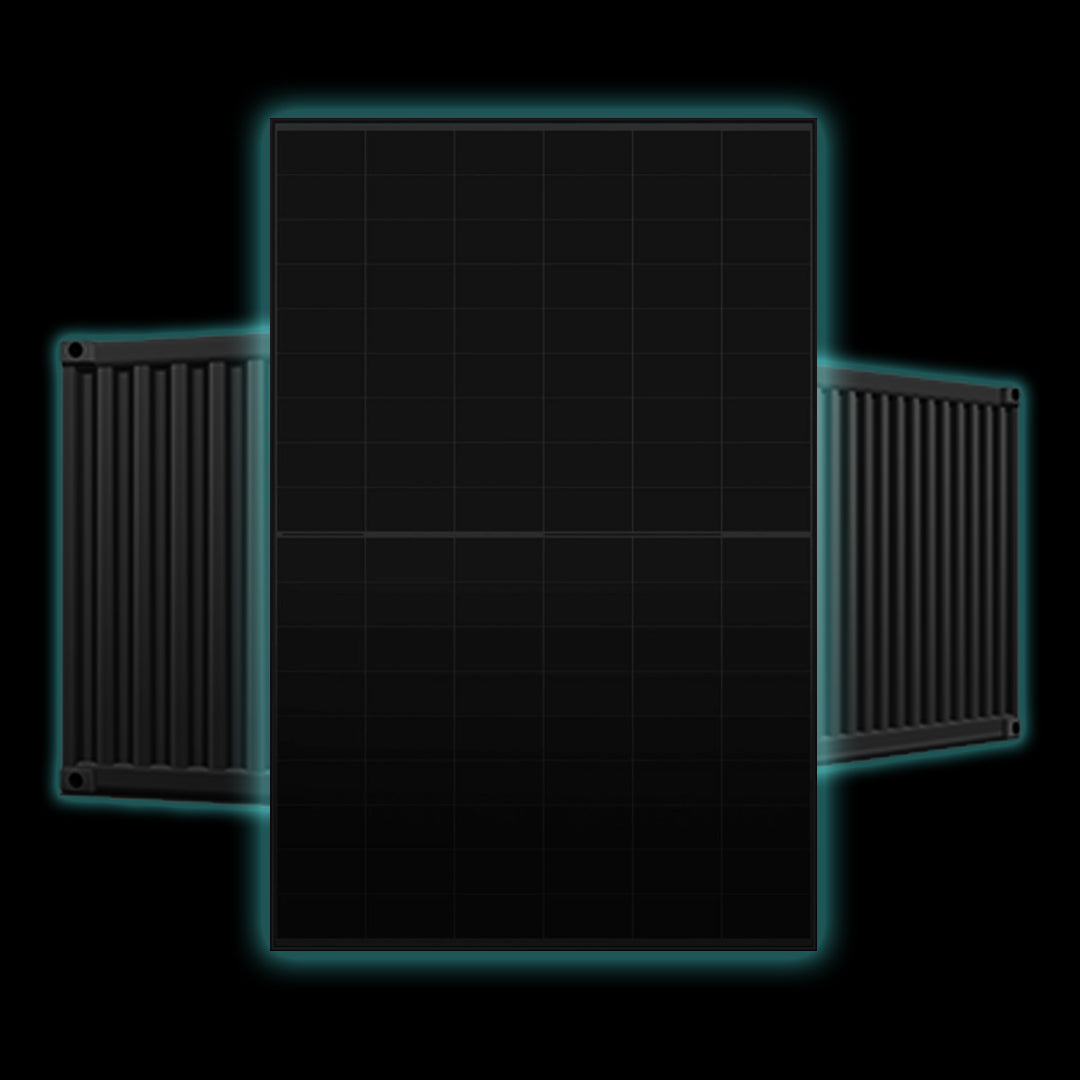

• 216 panels per 20' GP container
• 936 panels per 40' HQ container

Applications: Ideal for residential rooftops, commercial buildings, and utility-scale solar projects seeking high power output and long-term reliability.
