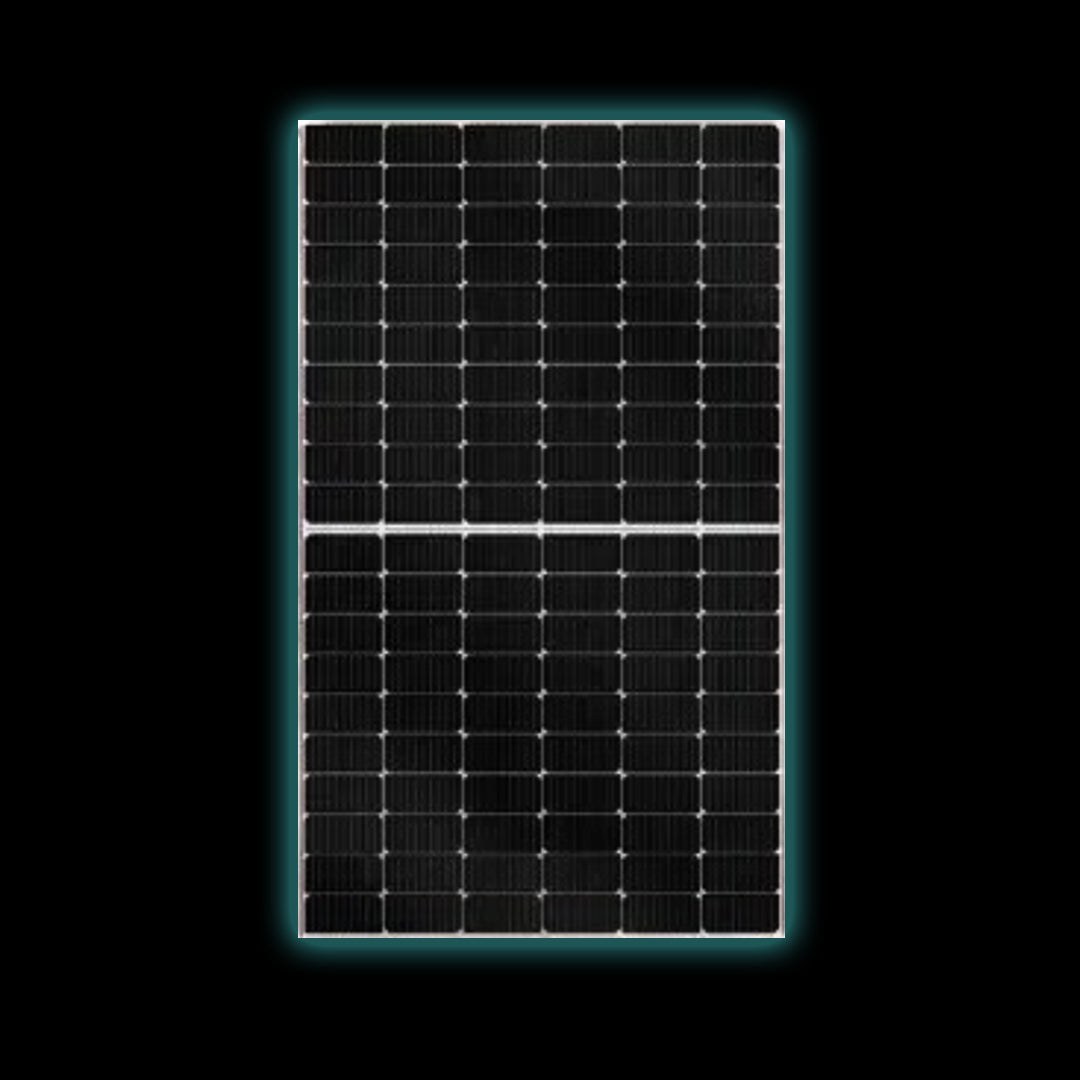

455W Seraphim S2 Solar Panel

The 455W Seraphim Solar Panel is a high‑performance monocrystalline photovoltaic module engineered for commercial, industrial, and utility‑scale solar installations. Built with advanced PERC and half‑cut cell technology, this module delivers excellent energy yield, long‑term reliability, and strong performance in demanding environmental conditions.

Designed to reduce Balance of System (BoS) costs while maximizing return on investment (ROI), the Seraphim 455W panel is an ideal choice for large rooftop, ground‑mount, and solar farm applications.

Key Features and Benefits

• High Power Output – 455 Watts
  Maximizes energy generation per panel, reducing overall installation footprint.

• Monocrystalline PERC Half‑Cut Cells
  Improves efficiency, reduces internal resistance, and enhances low‑light performance.

• High Module Efficiency (Up to 20.83%)
  Converts more sunlight into usable electricity.

• Excellent Low‑Light and Shading Performance
  Optimized cell layout minimizes power loss from partial shading.

• Anti‑PID Technology
  Prevents potential‑induced degradation for long‑term stable output.

• Proven Reliability
  Triple EL testing and performance validation under harsh conditions including sand, salt, acid, and hail exposure.

Electrical Specifications (STC)

• Rated Power (Pmax): 455W
• Open Circuit Voltage (Voc): 54.0V
• Short Circuit Current (Isc): 10.70A
• Maximum Power Voltage (Vmp): 45.0V
• Maximum Power Current (Imp): 10.12A
• Module Efficiency: 20.83%
• Power Tolerance: 0 to +4.99%
• Maximum System Voltage: 1500V DC
• Maximum Series Fuse Rating: 20A

Mechanical Specifications

• Dimensions: 2180 × 1002 × 35 mm
• Weight: 24.0 kg
• Solar Cells: 156 Monocrystalline PERC cells
• Front Glass: 3.2 mm tempered, low‑iron, anti‑reflective glass
• Frame: Anodized aluminum alloy
• Junction Box: IP68 rated with 3 bypass diodes
• Output Cable: 4.0 mm², customizable length

Durability and Load Ratings

• Operating Temperature Range: −40°C to +85°C
• Wind Load Resistance: 2400 Pa
• Snow Load Resistance: 5400 Pa
• Temperature Coefficient (Pmax): −0.34% / °C

Engineered for long‑term outdoor use in harsh climates.

Warranty

• 15‑Year Product Warranty
• 25‑Year Linear Power Output Warranty
  Ensures long‑term performance and investment security.
