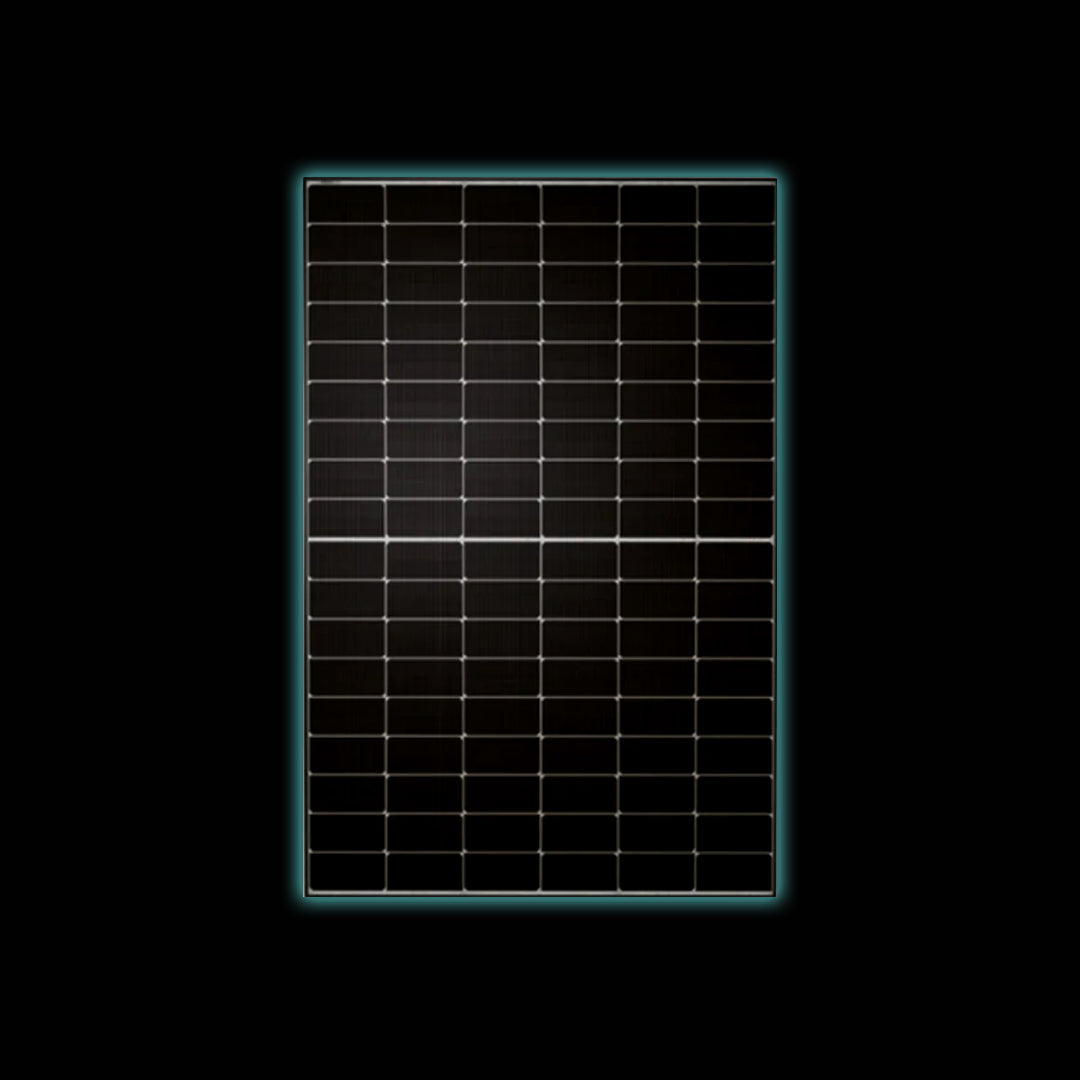

485W TW Solar (Black)

Upgrade your solar energy system with the TW Solar TWMND-60HS485, a high-efficiency N-type monocrystalline half-cell module designed for residential rooftops and commercial installations. With a sleek black anodized aluminum frame, this 485W panel combines performance, durability, and aesthetics.

Key Features

• Maximum Power Output: 485W
• Module Efficiency: Up to 22.4%
• Dimensions: 1908 × 1134 × 35 mm
• Weight: 23.2 kg
• Cell Type: N-type monocrystalline (120 cells, 6×20 layout)
• Front Glass: 3.2mm AR-coated tempered glass
• Backsheet: White
• Junction Box: IP68 rated, with 3 diodes
• Cable Length: ±1200mm (customizable)

Performance Highlights

• Low LCOE (Levelized Cost of Energy)
• Excellent temperature coefficients for high performance in hot climates:
  • Pmax: -0.30%/°C
  • Voc: -0.25%/°C
  • Isc: +0.046%/°C
• NMOT: 45±2°C
• Power Output Tolerance: 0 ~ +5W

Durability & Certifications

• Wind/Snow Load: 2400Pa / 5400Pa
• Operational Temperature Range: -40°C to +85°C
• Maximum System Voltage: 1500V DC
• Certifications: ISO 9001, ISO 14001, ISO 45001, IEC 61215/61730, CE, TÜV, MCS, INMETRO, JPEA, CQC, and more

Packaging

• 31 panels per pallet
• 744 panels per 40' HC container

Warranty

• 15-Year Materials Warranty
• 30-Year Linear Power Output Warranty
  • <1% degradation in the first year
  • <0.4% annual degradation thereafter

Tongwei Solar Panel Specifications Document
