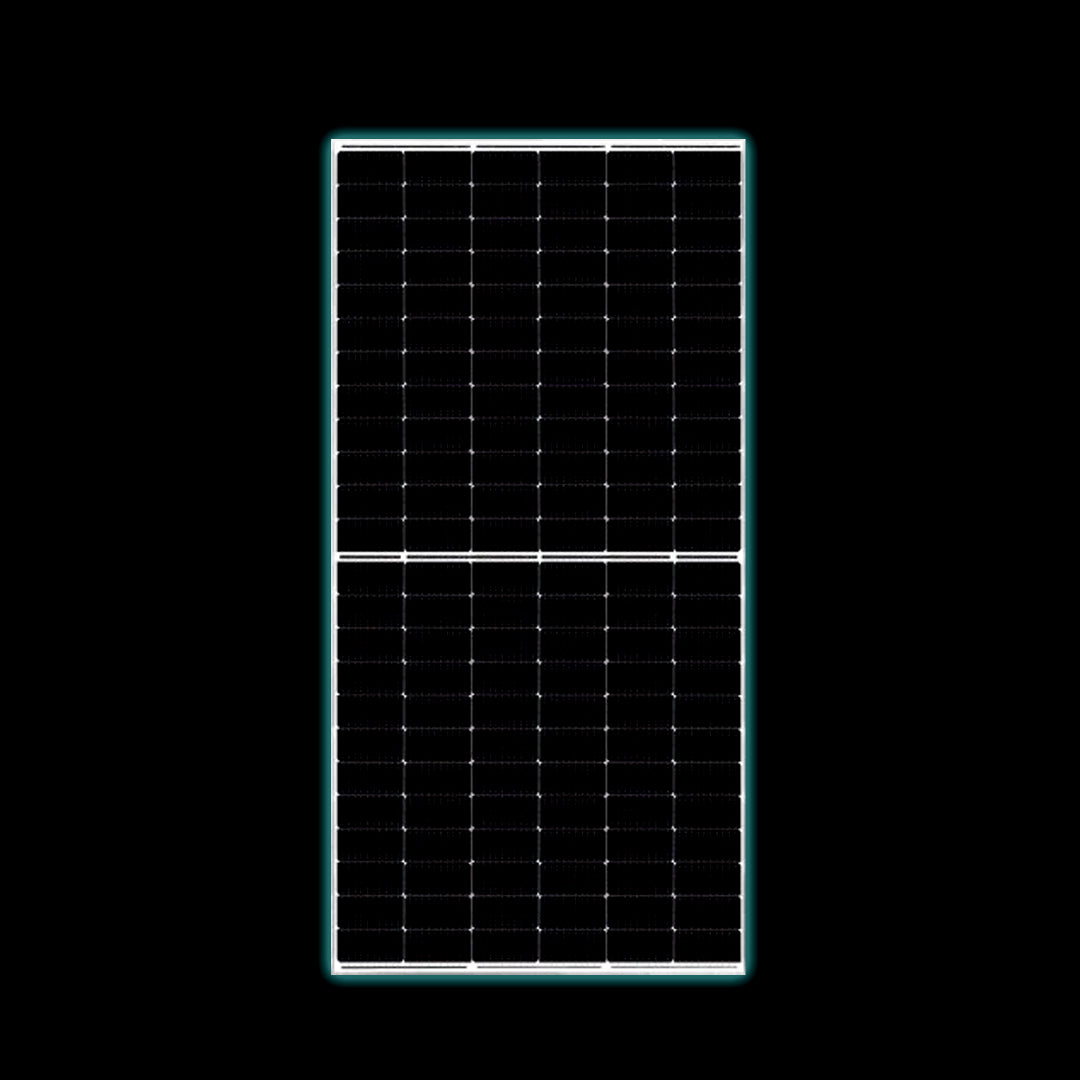

550W Canadian Solar Mono HiKu CS6W-550MS

Unlock superior solar performance with the Canadian Solar HiKu CS6W-550MS, a bifacial mono PERC module engineered for utility-scale and commercial solar installations. Designed to deliver up to 550 watts of front-side power and enhanced rear-side gain, this panel maximizes energy yield and system efficiency.

Key Features:

• High Power Output: Rated at 550W with up to 21.4% module efficiency.
• Bifacial Technology: Rear-side generation boosts total output by up to 20%, achieving up to 660W under optimal conditions.
• Durable Build: Withstands heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa.
• Advanced Reliability: Minimizes micro-crack impact and includes comprehensive LID/LeTID mitigation for long-term performance.
• Temperature Resilience: Operates efficiently across a wide temperature range (-40°C to +85°C) with low temperature coefficients.
• Certified Quality: ISO 9001, ISO 14001, ISO 45001 certified; UL and IEC compliant.
• Warranty Protection: 12-year product warranty and 30-year linear power performance warranty.

Technical Specifications:

• Cell Type: Mono-crystalline, 144 half-cut cells
• Dimensions: 2266 × 1134 × 35 mm
• Weight: 32.2 kg
• Front/Back Glass: 2.0 mm heat-strengthened glass
• Frame: Anodized aluminum alloy
• Connector: T4-PC-1 or compatible IEC/UL connectors
• Cable Length: 410 mm (+) / 290 mm (?)
• Max System Voltage: 1500 V
• Power Tolerance: 0 ~ +5 W
• Bifaciality Factor: 70% ± 5%

Applications:

Ideal for ground-mounted solar farms, commercial rooftops, and tracker-based systems. Compatible with mainstream mounting structures and designed to reduce Levelized Cost of Energy (LCOE) by up to 12.3%.

550W Canadian Bifacial Solar HiKu CS6W-550 Specifications Document
