565W JA Half-Cell Module Solar Panel JAM72S30(Pallet of 36) | Gauteng

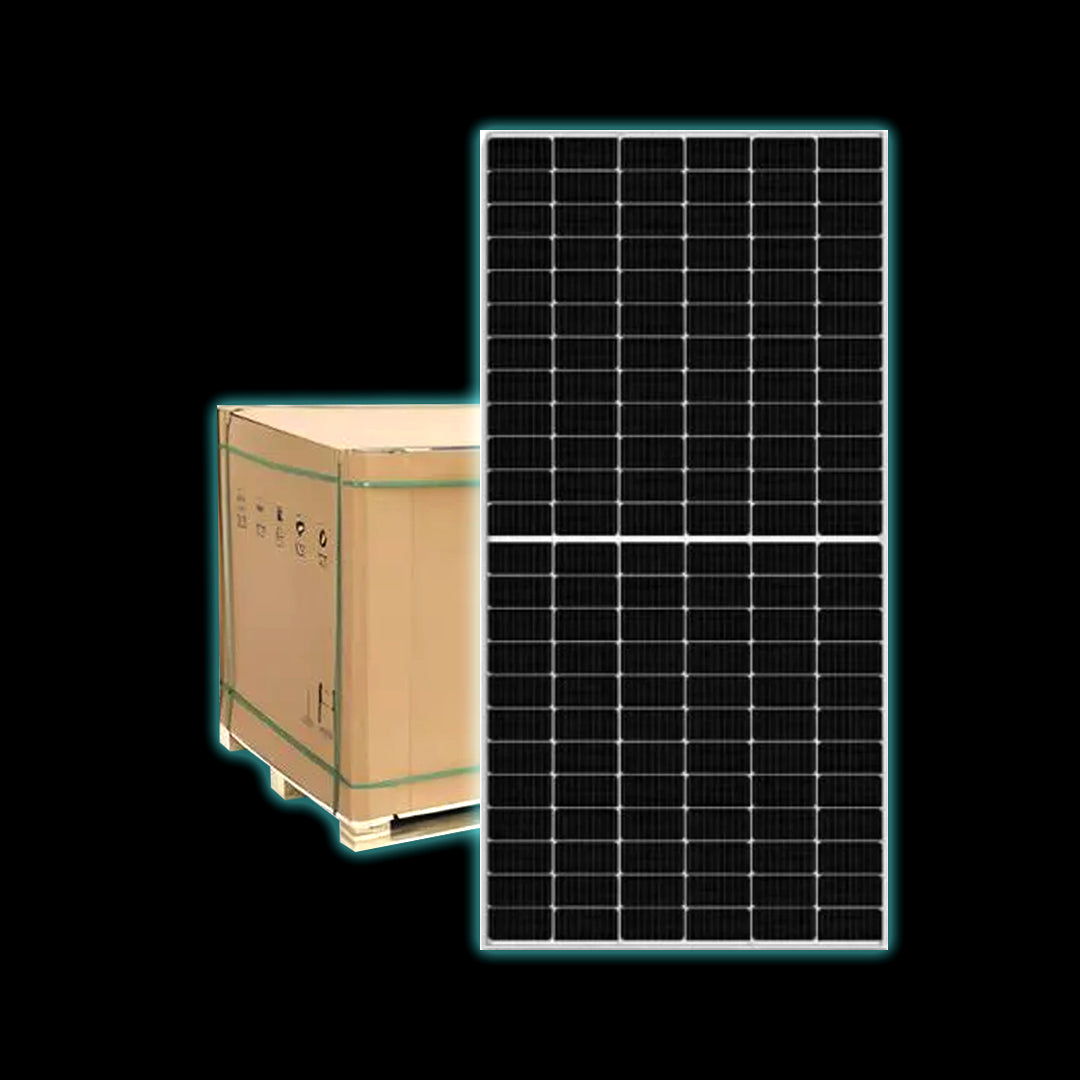

565W JA Solar Half-Cell Mono Module – JAM72S30 565/GR

Upgrade your solar energy system with the JA Solar 565W Half-Cell Mono Module, part of the advanced Deep Blue 3.0 Pro Series. Engineered with 11BB PERC cells and gapless ribbon technology, this high-efficiency panel delivers superior performance, reliability, and aesthetics.

?? Key Features:

• High Output Power: Rated at 565W with up to 21.9% module efficiency
• Half-Cell Technology: Reduces shading effects and hot spot risks for stable power generation
• Durable Build: Withstands up to 5400Pa front load and 2400Pa back load
• Superior Warranty:
  • 12-year product warranty
  • 25-year linear power output warranty with only 0.55% annual degradation
• Certified Quality: IEC, UL, ISO 9001/14001/45001, and IEC 62941 compliant

?? Technical Specifications:

• Model: JAM72S30 565/GR
• Cell Type: Monocrystalline (144 cells, 6×24)
• Dimensions: 2278 × 1134 × 30 mm
• Weight: 27.3 kg
• Connector: QC 4.10-351 / MC4-EVO2A
• Cable Length: Portrait: 200mm(+)/300mm(-); Landscape: 1300mm(+/-)
• Operating Temp: -40°C to +85°C
• Max System Voltage: 1000V/1500V DC
• Fire Rating: UL Type 1

? Electrical Performance:

• Open Circuit Voltage (Voc): 50.28V
• Max Power Voltage (Vmp): 42.42V
• Short Circuit Current (Isc): 14.21A
• Max Power Current (Imp): 13.32A
• Power Tolerance: 0 ~ +5W

?? Sustainability & Efficiency:

• Lower Levelized Cost of Energy (LCOE)
• Enhanced mechanical loading tolerance
• Optimized for residential, commercial, and utility-scale installations

565W JA Solar Panels Specification Document
