575W JA BiFacial Solar | Western Cape

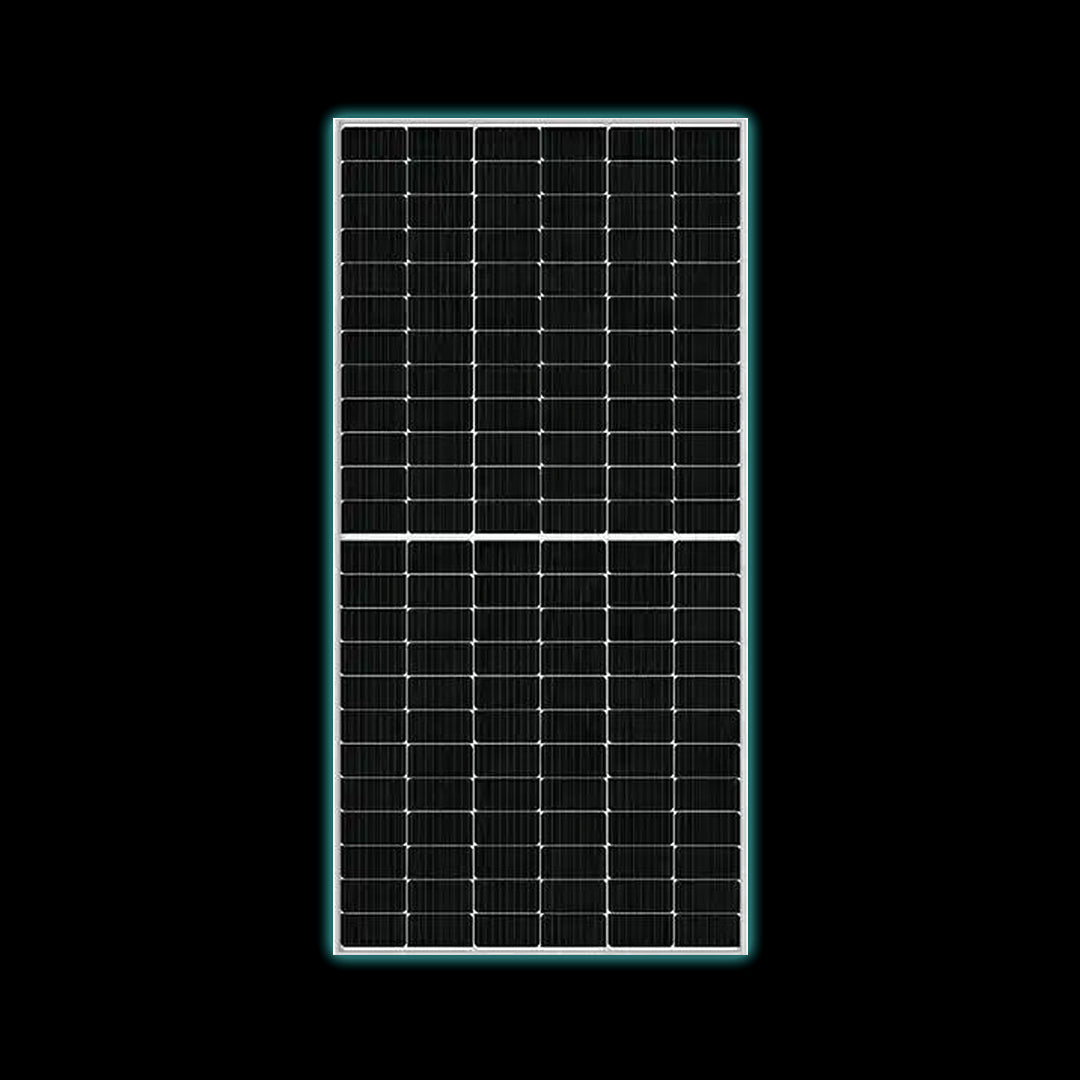

JA Solar 575W BiFacial Panel – Deep Blue 4.0 Pro Series | High-Efficiency N-Type Double Glass Module

Maximize your solar investment with the JA Solar 575W BiFacial Panel, part of the advanced Deep Blue 4.0 Pro Series. Built with n-type bifacial mono cells and SMBB half-cell technology, this module delivers superior energy yield, durability, and long-term performance.

?? Key Specifications:

• Rated Power Output: 575W
• Module Efficiency: 21.7%
• Bifacial Gain: Up to 80% ±10% rear-side boost
• Power Tolerance: 0 ~ +5W
• Temperature Coefficient (Pmax): -0.30%/°C

?? Performance Advantages:

• Enhanced low-light and high-temperature performance
• Lower Light-Induced Degradation (LID)
• Better temperature coefficient for stable output
• Optimized for lower Levelized Cost of Energy (LCOE)

??? Warranty & Certifications:

• 12-Year Product Warranty
• 30-Year Linear Power Output Warranty
  • 1% degradation in year 1
  • Only 0.4% annual degradation thereafter
• Certified to IEC 61215 & IEC 61730
• ISO 9001, ISO 14001, ISO 45001 certified

?? Technical Details:

• Cell Type: Mono 16BB, 144 cells (6×24)
• Dimensions: 2333 × 1134 × 30 mm
• Weight: 32.5 kg
• Glass: 2.0 mm front & back tempered glass
• Connector: QC Solar QC 4.10-351 / Staubli MC4-EVO2
• Max System Voltage: 1500V DC
• Operating Temperature: -40°C to +85°C
• Fire Safety Class: Class C

575W JA Bifacial N-Type Double Glass Specifications Document
