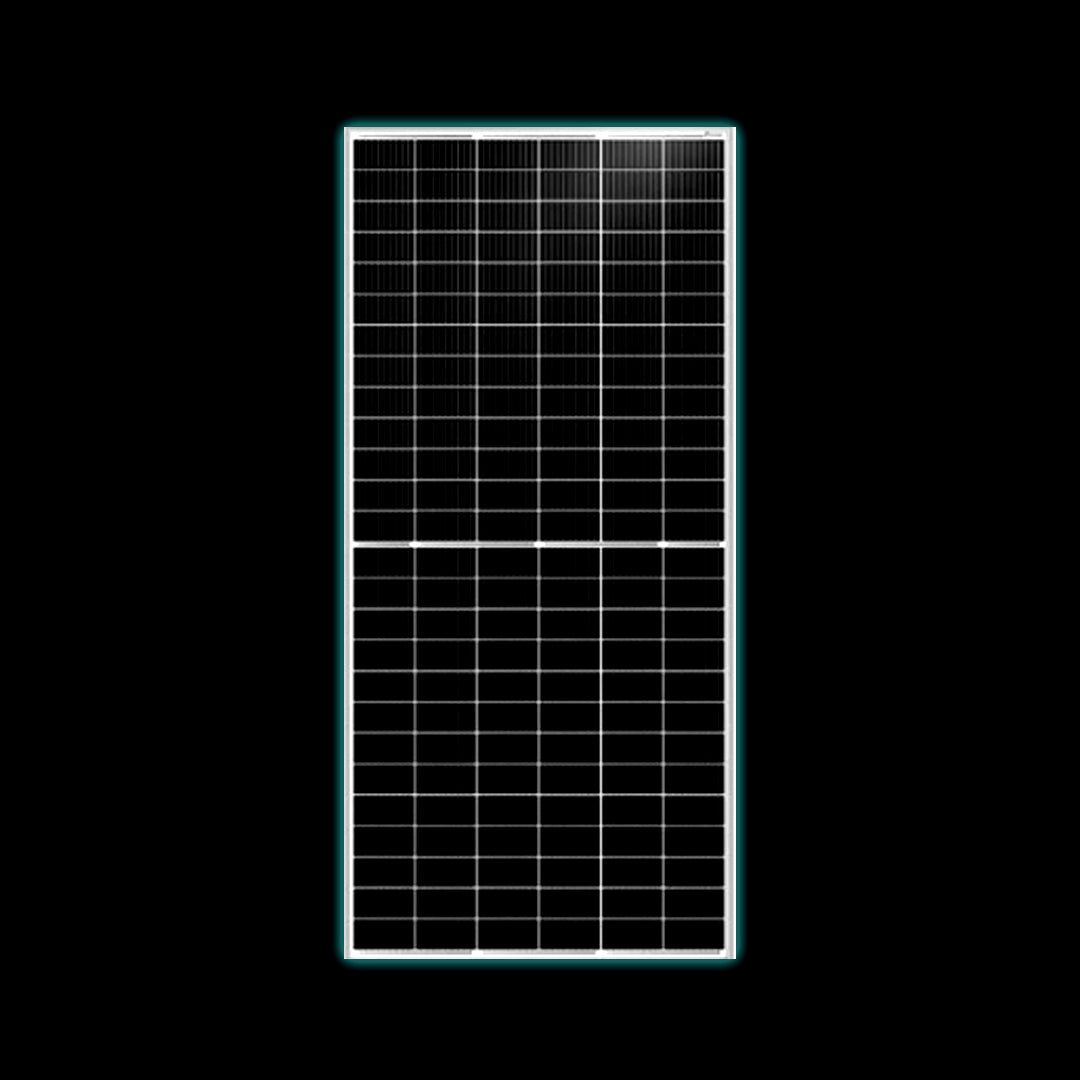

575W Trina Solar TSM-575-DE19R Vertex

The Trina Solar TSM-575-DE19R Vertex panel delivers industry-leading performance with up to 575 watts of power and 21.3% efficiency, making it an ideal solution for high-output residential, commercial, and utility-scale solar installations. Built with advanced monocrystalline PERC and multi-busbar technology, this panel ensures maximum energy yield, long-term reliability, and a faster return on investment.

Key Features:

• High Power Output: Rated up to 575W with a positive power tolerance of 0~+5W.
• High Efficiency: Achieves up to 21.5% module efficiency using high-density interconnect and multi-busbar technology.
• Durability & Strength: Engineered to withstand up to 5400 Pa snow load and 2400 Pa wind load.
• PID Resistance: Enhanced protection against potential-induced degradation through advanced cell and material design.
• Superior Low-Light Performance: Optimized for energy production even under low irradiance and inter-row shading conditions.
• Low Degradation: Only 2% power loss in the first year, followed by 0.55% annual degradation, ensuring 84.8% power output after 25 years.
• Certified Quality: Complies with IEC 61215, IEC 61730, IEC 61701, IEC 62716, UL 61730, and ISO certifications for quality, safety, and environmental standards.

Technical Specifications:

• Model: TSM-575-DE19R Vertex
• Power Output Range: 555W – 580W
• Module Efficiency: Up to 21.5%
• Cell Type: Monocrystalline (132 cells)
• Dimensions: 2384 × 1134 × 35 mm
• Weight: 29.6 kg
• Operating Temperature: -40°C to +85°C
• Max System Voltage: 1500V DC
• Connector: MC4 EVO2 / TS4
• Junction Box: IP68 rated
• Glass: 3.2 mm AR-coated, heat-strengthened glass

Warranty:

• 12-Year Product Workmanship Warranty
• 25-Year Linear Power Output Warranty

Applications:

• Residential rooftop systems
• Commercial and industrial solar projects
• Utility-scale solar farms
• Off-grid and hybrid energy systems

575W Trina Solar TSM-575-DE19R Vertex Specifications Document
