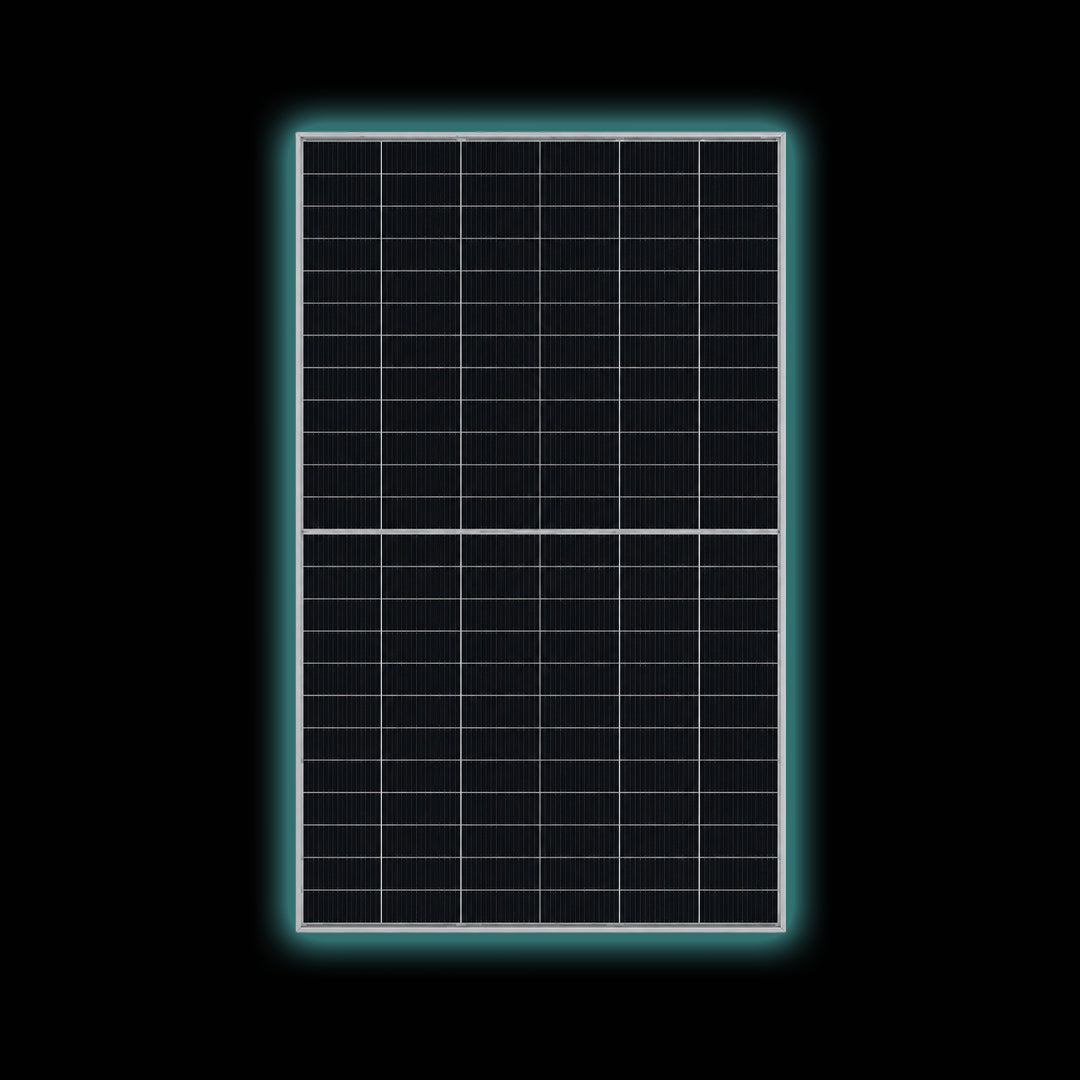

580W Astronergy Bifacial Solar Panel Astro N5 CHSM72N(DG)/F-BH

The 580W Astronergy Astro N5 CHSM72N(DG)/F-BH is a high-performance bifacial solar panel designed to maximize energy generation and long-term reliability. Built with advanced N-Type TOPCon 4.0 cell technology, this premium solar module delivers exceptional efficiency, lower degradation rates, and improved performance in high-temperature environments.

Featuring bifacial technology, the panel captures sunlight from both the front and rear surfaces, allowing it to generate additional power from reflected light and increase overall system yield. Its robust dual-glass construction enhances durability, weather resistance, and long-term performance, making it an ideal choice for residential, commercial, industrial, agricultural, and utility-scale solar installations.

Key Features

• 580W high-power output for maximum energy production.
• Advanced N-Type TOPCon 4.0 technology for higher efficiency and reliability.
• Bifacial design generates additional energy from reflected sunlight.
• Module efficiency of up to 22.5%.
• Excellent temperature coefficient of -0.29%/°C for strong performance in hot climates.
• SMBB (Super Multi Busbar) technology reduces electrical losses and improves current collection.
• Dual-glass construction for enhanced strength, durability, and moisture resistance.
• Positive power tolerance of 0 to +3%.
• Suitable for systems up to 1500V DC.
• IP68-rated junction box for superior environmental protection.

Technical Specifications

• Brand: Astronergy
• Model: Astro N5 CHSM72N(DG)/F-BH
• Rated Power: 580W
• Cell Technology: N-Type Monocrystalline TOPCon
• Module Efficiency: 22.5%
• Number of Cells: 144 Half-Cut Cells (6 × 24)
• Open Circuit Voltage (Voc): 52.21V
• Short Circuit Current (Isc): 14.01A
• Maximum Power Voltage (Vmpp): 43.70V
• Maximum Power Current (Impp): 13.27A
• Maximum System Voltage: 1500V DC
• Dimensions: 2278 × 1134 × 30mm
• Weight: 31.1kg
• Frame: Silver Anodized Aluminium
• Glass: Dual Glass 2.0mm + 2.0mm

Warranty

The Astronergy Astro N5 580W Solar Panel is backed by a 15-year product warranty and a 30-year linear power warranty. With less than 1% degradation in the first year and only 0.4% annual degradation thereafter, the panel is designed to maintain 87.4% of its original power output after 30 years of operation.

Ideal Applications

• Residential solar systems
• Commercial and industrial rooftops
• Agricultural solar projects
• Ground-mounted solar installations
• Solar farms and utility-scale developments
• Carport solar structures
• Off-grid and hybrid energy systems

The Astronergy 580W Astro N5 Bifacial Solar Panel combines cutting-edge N-Type TOPCon technology, high module efficiency, and bifacial energy generation to deliver outstanding performance and long-term value for modern solar energy projects.
