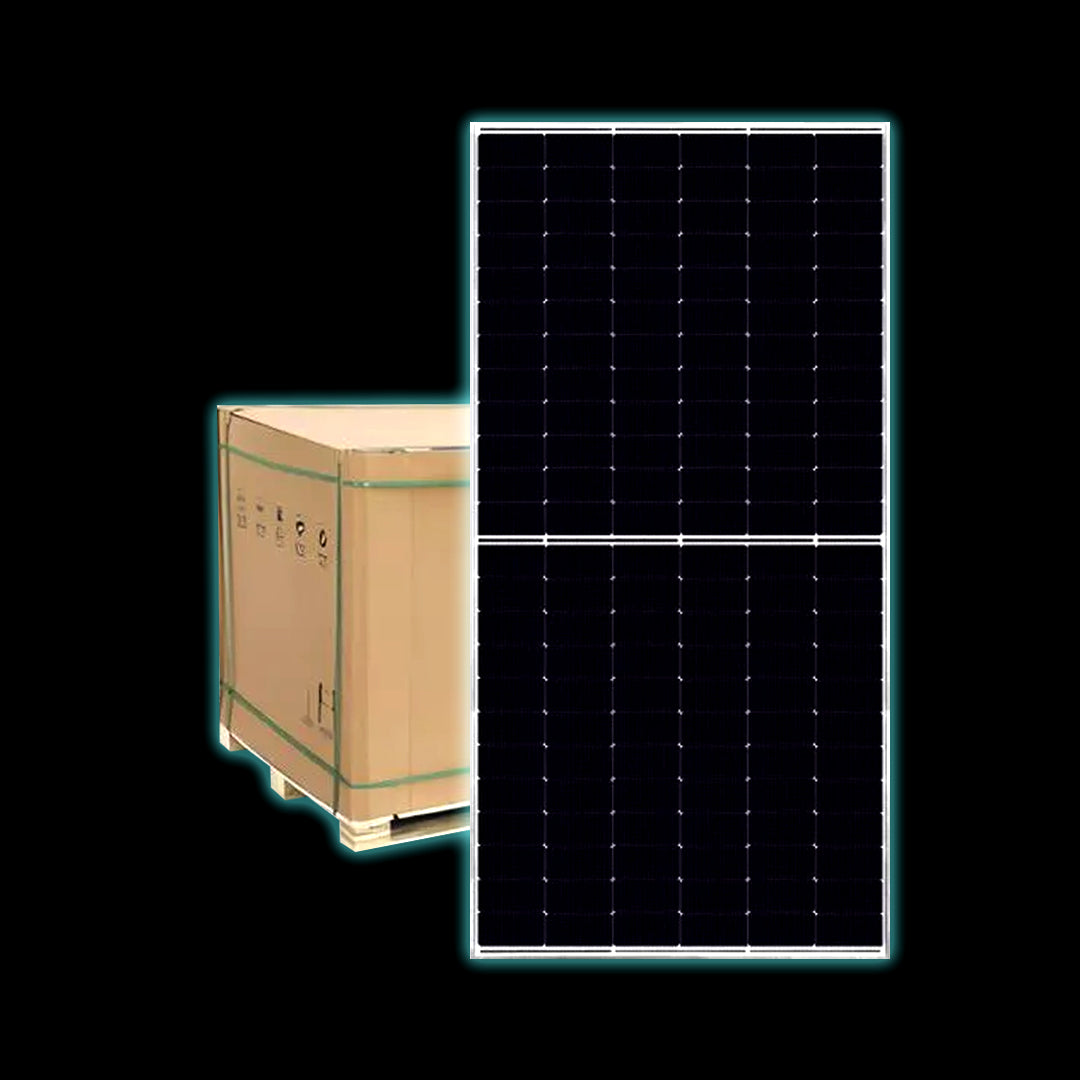

580W Canadian TopBiHiKu6 N-Type Bifacial Solar Panel – CS6W-580TB-AG

Unlock maximum solar efficiency with the 580W Canadian Solar TopBiHiKu6 N-Type Bifacial Solar Panel, engineered with cutting-edge TOPCon cell technology for superior performance, durability, and energy yield. Ideal for residential, commercial, and utility-scale installations, this high-efficiency bifacial module delivers up to 23.6% efficiency and up to 80% bifaciality, capturing sunlight from both sides for enhanced power output.

?? Key Features:

• High Power Output: Rated at 580W with bifacial gain up to 696W (20% gain).
• N-Type TOPCon Technology: Delivers lower degradation and higher energy yield.
• Bifacial Design: Up to 80% rear-side power gain for increased performance.
• Durability Certified: Withstands up to 5400 Pa snow load and 2400 Pa wind load.
• Low Temperature Coefficient: -0.29%/°C for better performance in hot climates.
• Long-Term Reliability: 30-year linear power warranty and 12-year product warranty.

?? Technical Specifications:

• Model: CS6W-580TB-AG
• Efficiency: 22.5% (front), up to 26.9% with bifacial gain
• Dimensions: 2278 × 1134 × 30 mm
• Weight: 32.3 kg
• Cell Type: N-Type TOPCon, 144 cells (2×(12×6))
• Glass: Dual 2.0 mm heat-strengthened glass with anti-reflective coating
• Frame: Anodized aluminum alloy
• Connector: T6 / MC4-EVO2 / MC4-EVO2A
• Operating Temp: -40°C to +85°C
• Max System Voltage: 1500V (IEC/UL)

? Certifications:

• IEC 61215 / IEC 61730 / UL 61730
• ISO 9001, ISO 14001, ISO 45001
• IEC 62941:2019 (Manufacturing Quality)
• Fire Rating: Class 1 / Type 29 / Class C

?? Why Choose Canadian Solar?

With over 125 GW of solar modules shipped globally and a reputation for quality and innovation, Canadian Solar is a trusted leader in solar energy. The TopBiHiKu6 series is designed for maximum ROI, lower LCOE, and sustainable performance in all environments.

580W Canadian Specifications Document
