585W JA BiFacial Solar | Western Cape

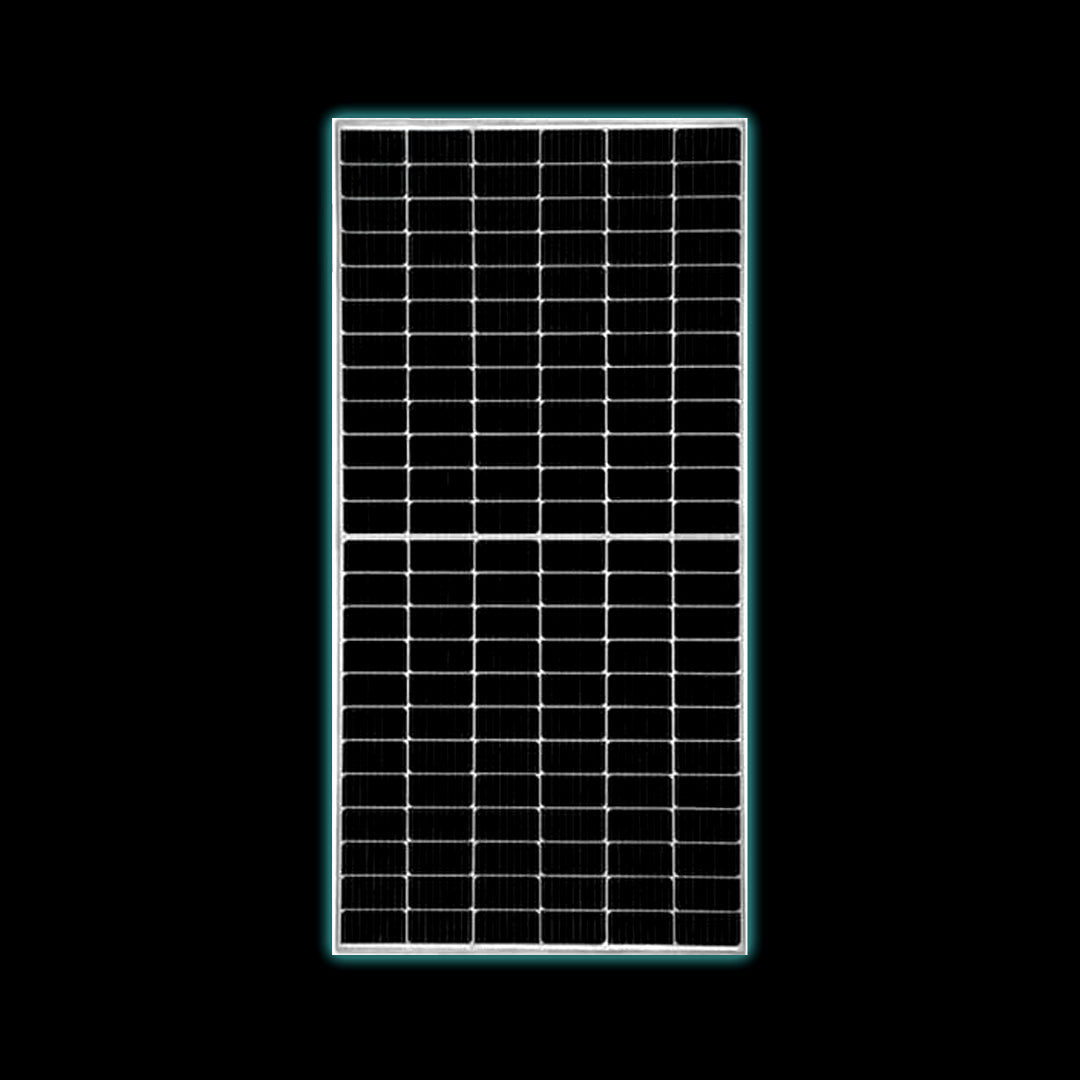

585W JA BiFacial Solar Panel – JAM72D40 Series | High-Efficiency N-Type Double Glass Module

Unlock next-level solar performance with the JA Solar 585W BiFacial Panel, part of the cutting-edge Deep Blue 4.0 Pro Series. Engineered with n-type bifacial mono cells and SMBB half-cell technology, this module delivers exceptional power output, durability, and long-term reliability.

?? Key Features:

• Rated Power Output: 585W
• Module Efficiency: 22.1%
• Bifacial Gain: Up to 80% ±10% rear-side power boost
• Temperature Coefficient: -0.30%/°C for Pmax
• Power Tolerance: 0 ~ +5W

?? Performance Highlights:

• Superior low-light performance and temperature resilience
• Reduced LID (Light-Induced Degradation) for sustained efficiency
• Enhanced energy yield and lower Levelized Cost of Energy (LCOE)
• Certified for IEC 61215 & IEC 61730 standards

??? Warranty & Reliability:

• 12-Year Product Warranty
• 30-Year Linear Power Output Warranty
  • 1% degradation in year 1
  • Only 0.4% annual degradation thereafter

?? Technical Specs:

• Dimensions: 2333 × 1134 × 30 mm
• Weight: 32.5 kg
• Cell Type: Mono 16BB, 144 cells (6×24)
• Connector: QC Solar QC 4.10-351 / Staubli MC4-EVO2
• Glass: 2.0 mm front & back tempered glass
• Operating Temperature: -40°C to +85°C
• Max System Voltage: 1500V DC

?? Sustainability & Certifications:

• ISO 9001:2015 – Quality Management
• ISO 14001:2015 – Environmental Management
• ISO 45001:2018 – Occupational Health & Safety

Ideal for commercial, industrial, and utility-scale installations, the JA Solar 585W BiFacial module is your solution for high-efficiency, long-lasting solar energy generation.

585W JA Solar Specifications Document
