590W JA Solar Ntype Bifacial JAM72D40-590/LB | Western Cape

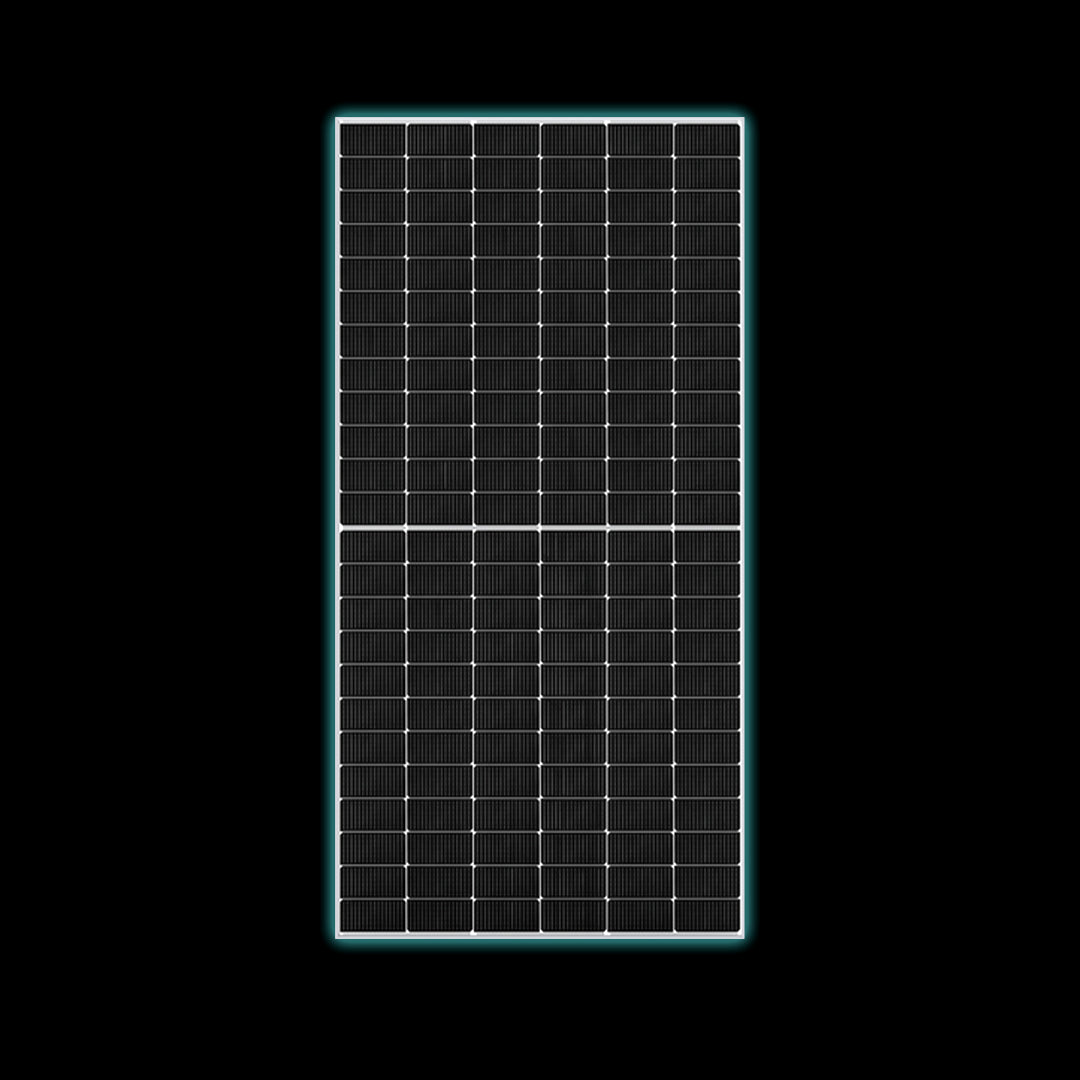

JA Solar 590W N-Type Bifacial Solar Panel – JAM72D40-590/GB

Upgrade your solar energy system with the JA Solar 590W N-Type Bifacial Double Glass Module, part of the high-performance Deep Blue 4.0 series. Engineered for superior efficiency and durability, this panel is ideal for residential, commercial, and utility-scale installations.

?? Key Features

• High Power Output: Rated at 590W with up to 23.0% module efficiency
• N-Type Bifacial Technology: Captures sunlight from both sides for increased energy yield
• Low LID & Better Temperature Coefficient: Ensures long-term performance and reliability
• Durable Double Glass Design: Enhanced resistance to environmental stress
• Superior Warranty:
  • 12-year product warranty
  • 30-year linear power output warranty
  • Only 1% degradation in the first year, 0.4% annually thereafter

?? Specifications

• Model: JAM72D40-590/GB
• Cell Type: Mono 16BB, 144 cells (6×24)
• Dimensions: 2278 × 1134 × 30 mm
• Weight: 31.8 kg
• Connector: QC 4.10-351 / MC4-EVO2A
• Junction Box: IP68 rated, 3 diodes
• Cable Length: Portrait: 300mm(+)/400mm(-); Landscape: 1300mm(+/-)
• Maximum System Voltage: 1500V DC
• Operating Temperature: -40? to +85?

? Electrical Performance at STC

• Open Circuit Voltage (Voc): 52.37V
• Maximum Power Voltage (Vmp): 44.43V
• Short Circuit Current (Isc): 13.94A
• Maximum Power Current (Imp): 13.28A
• Power Tolerance: 0~+3%

?? Bifacial Advantage

• Bifaciality: 80% ±10%
• Enhanced Output: Up to 637W with rear-side irradiation (10% solar ratio)

??? Certifications

• IEC 61215, IEC 61730
• ISO 9001, ISO 14001, ISO 45001
• IEC 62941
• CE, UL, Intertek

590W JA Solar Ntype Bifacial JAM72D40-590/LB Specification Document
