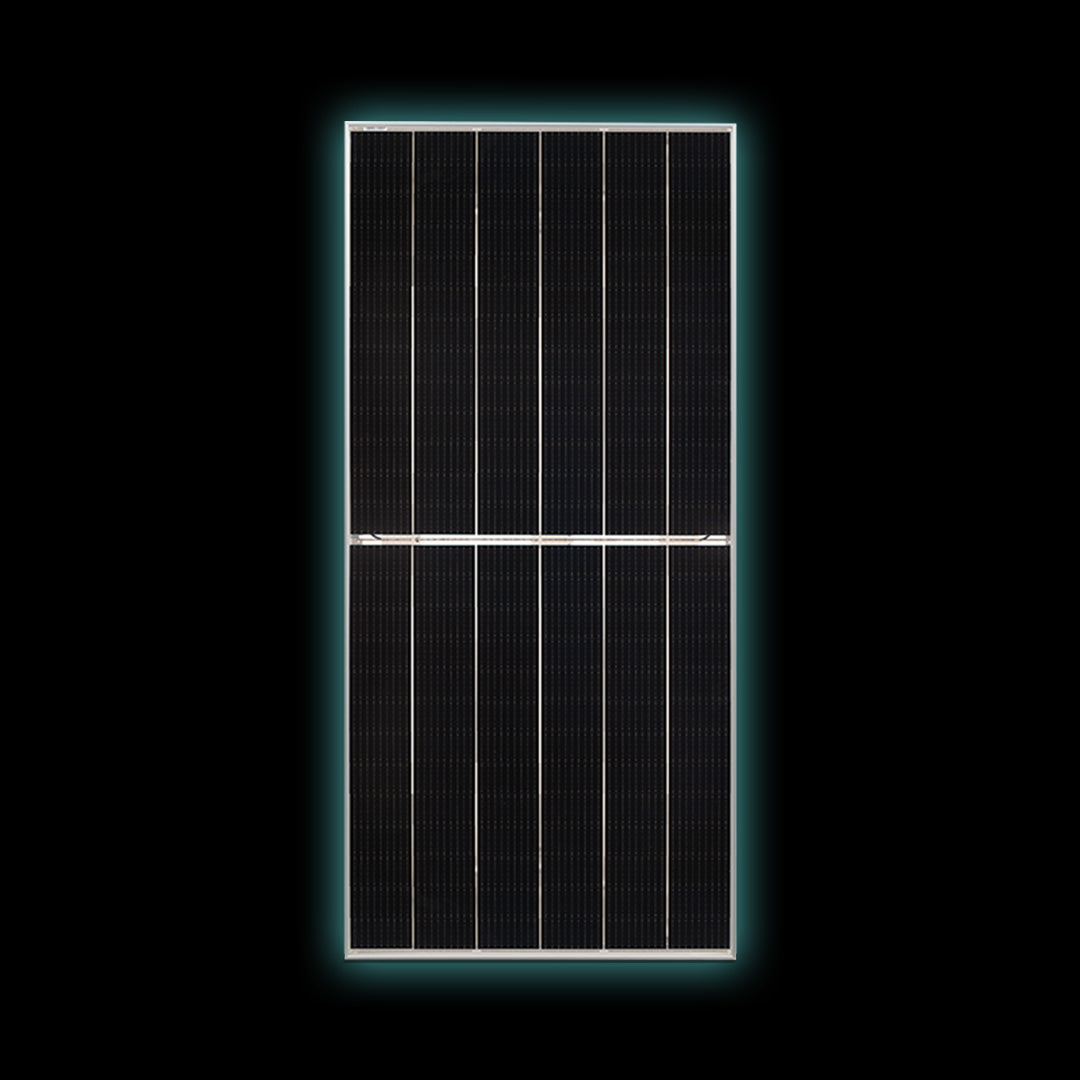

590W Jinko Bifacial Solar Panel JKM590N-72HL4-BDV

The 590W Jinko Bifacial Solar Panel (JKM590N-72HL4-BDV) is a high-performance, utility-grade photovoltaic module engineered for maximum energy yield, long-term reliability, and superior return on investment. Part of Jinko Solar’s Tiger Neo N‑Type series, this bifacial dual-glass solar panel is designed for commercial, industrial, and large-scale solar installations where efficiency and durability are critical.

High-Efficiency N-Type Technology

This module uses N-type monocrystalline cells with Jinko’s advanced HOT 2.0 technology, delivering higher power output, lower degradation, and improved performance in high-temperature environments. With a module efficiency of up to 22.84% at 590W, it converts more sunlight into usable energy than conventional P-type panels.

Bifacial Dual-Glass Design for Increased Energy Yield

The bifacial architecture allows the panel to capture sunlight from both the front and rear sides, providing up to 25% additional power gain depending on installation conditions. Rear-side energy collection makes this panel ideal for ground-mounted, rooftop with reflective surfaces, and utility-scale solar plants.

Built for Harsh Conditions

The dual 2.0 mm heat-strengthened glass construction and anodized aluminum alloy frame ensure excellent mechanical strength. The panel is certified to withstand 5400 Pa snow load and 2400 Pa wind load, making it suitable for demanding environmental conditions.

Long-Term Reliability and Warranty

Jinko backs this module with a 12-year product warranty and a 30-year linear power performance warranty, with an annual degradation rate of only 0.40%, ensuring stable and predictable energy production over decades.

Key Features

• Nominal power output: 590W
• Advanced N-type monocrystalline cells
• Bifacial dual-glass module design
• SMBB (Super Multi-Busbar) technology for improved current collection
• Low LID and LETID performance losses
• Up to 25% rear-side power gain
• High resistance to PID
• Certified to IEC 61215 and IEC 61730 standards
• Designed for 1500V DC systems

Technical Specifications (STC)

• Module model: JKM590N-72HL4-BDV
• Maximum power (Pmax): 590W
• Module efficiency: 22.84%
• Voltage at maximum power (Vmp): 42.88V
• Current at maximum power (Imp): 13.76A
• Open-circuit voltage (Voc): 51.86V
• Short-circuit current (Isc): 14.49A
• Cell type: N-type monocrystalline
• Number of cells: 144 (2 × 72)
• Dimensions: 2278 × 1134 × 30 mm
• Weight: 31 kg
• Operating temperature range: -40°C to +85°C
• Maximum system voltage: 1500V DC
• Junction box: IP68 rated

Ideal Applications

• Utility-scale solar power plants
• Commercial and industrial rooftops
• Ground-mounted and tracker-based solar systems
• High-albedo environments for bifacial gain optimization

Why Choose Jinko Solar

Jinko Solar is one of the world’s most trusted and bankable solar panel manufacturers, known for innovation, quality control, and long-term performance. The 590W Tiger Neo bifacial panel is engineered to deliver lower levelized cost of energy (LCOE) and higher internal rate of return (IRR) for modern solar projects.
