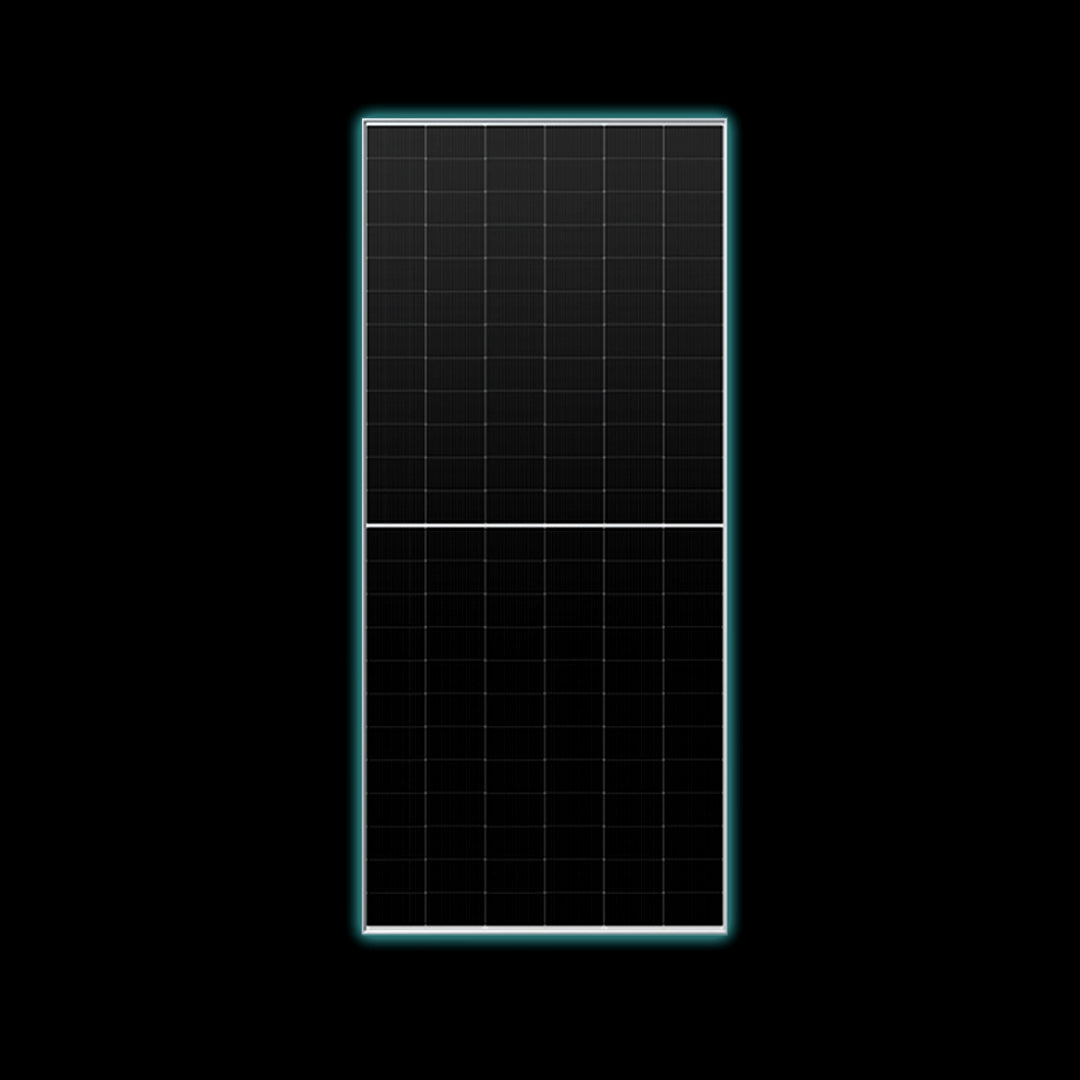

Trina Solar 590W Duomax MBB Half Cell N-Type TOPCon Bifacial Solar Panel

Maximize your solar investment with the Trina Solar 590W Duomax N-Type TOPCon bifacial module, engineered for peak performance and long-term reliability. This cutting-edge panel features dual-glass bifacial technology, super multi-busbar (SMBB) architecture, and N-Type i-TOPCon monocrystalline cells, delivering up to 22.8% efficiency and enhanced rear-side energy capture.

?? Key Benefits:

• Maximum Power Output: 590W with 0~+5W positive tolerance
• High Efficiency: Industry-leading 22.8% module efficiency
• Bifacial Boost: Up to 25% additional power gain from rear side (depending on albedo)
• Durability: Dual-glass design resists salt, ammonia, sand, and extreme weather
• PID Resistance: Advanced cell and material control for long-term performance
• Temperature Resilience: Low temperature coefficient (-0.29%/°C) for optimal performance in hot climates
• Mechanical Strength: Withstands 5400 Pa front load and 2400 Pa rear load

?? Technical Specifications:

• Dimensions: 2278 × 1134 × 30 mm
• Weight: 31.9 kg
• Cell Type: 144-cell N-Type i-TOPCon monocrystalline
• Glass: 2.0 mm AR-coated, heat-strengthened dual glass
• Connector: MC4 EVO2 / TS4 Plus
• Certifications: IEC61215, IEC61730, ISO9001, ISO14001, ISO45001

??? Warranty Coverage:

• 12-Year Product Workmanship Warranty
• 30-Year Linear Power Output Warranty
• Only 1% degradation in year one, 0.40% annually thereafter

?? Eco-Conscious Packaging:

• EU WEEE compliant
• Fully recyclable packaging

This 590W Trina Duomax bifacial panel is ideal for high-efficiency residential, commercial, and utility-scale solar installations. Designed for performance, built for durability, and optimized for energy yield—this panel is your gateway to sustainable power.

590W Trina Duomax Bifacial Specifications Document
