595W JA Solar Bifacial | Western Cape

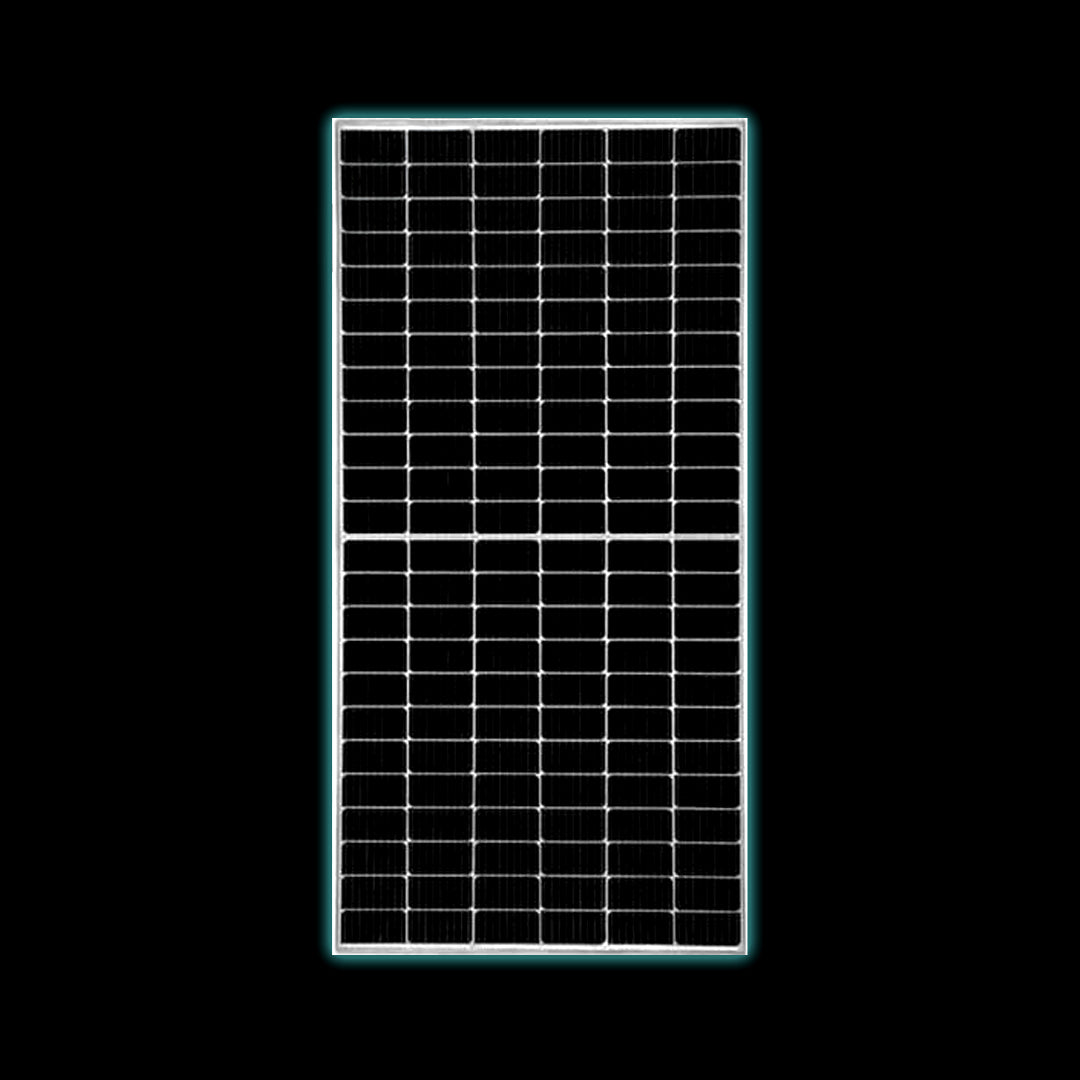

595W JA Solar Bifacial Panel – DEEP BLUE 4.0 Pro | High-Efficiency N-Type Mono Module

Unlock superior solar performance with the JA Solar 595W Bifacial Panel, part of the cutting-edge DEEP BLUE 4.0 Pro Series. Engineered with n-type bifacial double glass technology and SMBB half-cell configuration, this panel delivers exceptional power output, enhanced durability, and long-term reliability.

? Key Features:

• Rated Power Output: 595W
• Module Efficiency: 22.5%
• Bifacial Gain: Up to 80% ±10% rear-side contribution
• Superior Temperature Coefficient: -0.30%/°C for Pmax
• Low Light Performance: Optimized for weak illumination conditions
• Durability: Withstands up to 3600Pa front load and 1600Pa back load
• Warranty: 12-year product warranty + 30-year linear power output warranty

?? Specifications:

• Dimensions: 2333 × 1134 × 30 mm
• Weight: 32.5 kg
• Cell Type: Mono 16BB, 144 cells (6×24)
• Connector: QC Solar QC 4.10-351 / Staubli MC4-EVO2
• Operating Temperature: -40°C to +85°C
• Maximum System Voltage: 1500V DC

?? Why Choose JA Solar’s 595W Bifacial Panel?

• Higher Energy Yield: Thanks to bifacial technology and advanced cell design
• Lower LCOE: Reduced degradation and improved efficiency over time
• Certified Quality: IEC 61215, IEC 61730, ISO 9001, ISO 14001, ISO 45001

Perfect for utility-scale, commercial, and residential solar installations, this panel is designed to maximize ROI and sustainability.

595W JA Solar Specifications Document
