595W Jinko Panels | Western Cape

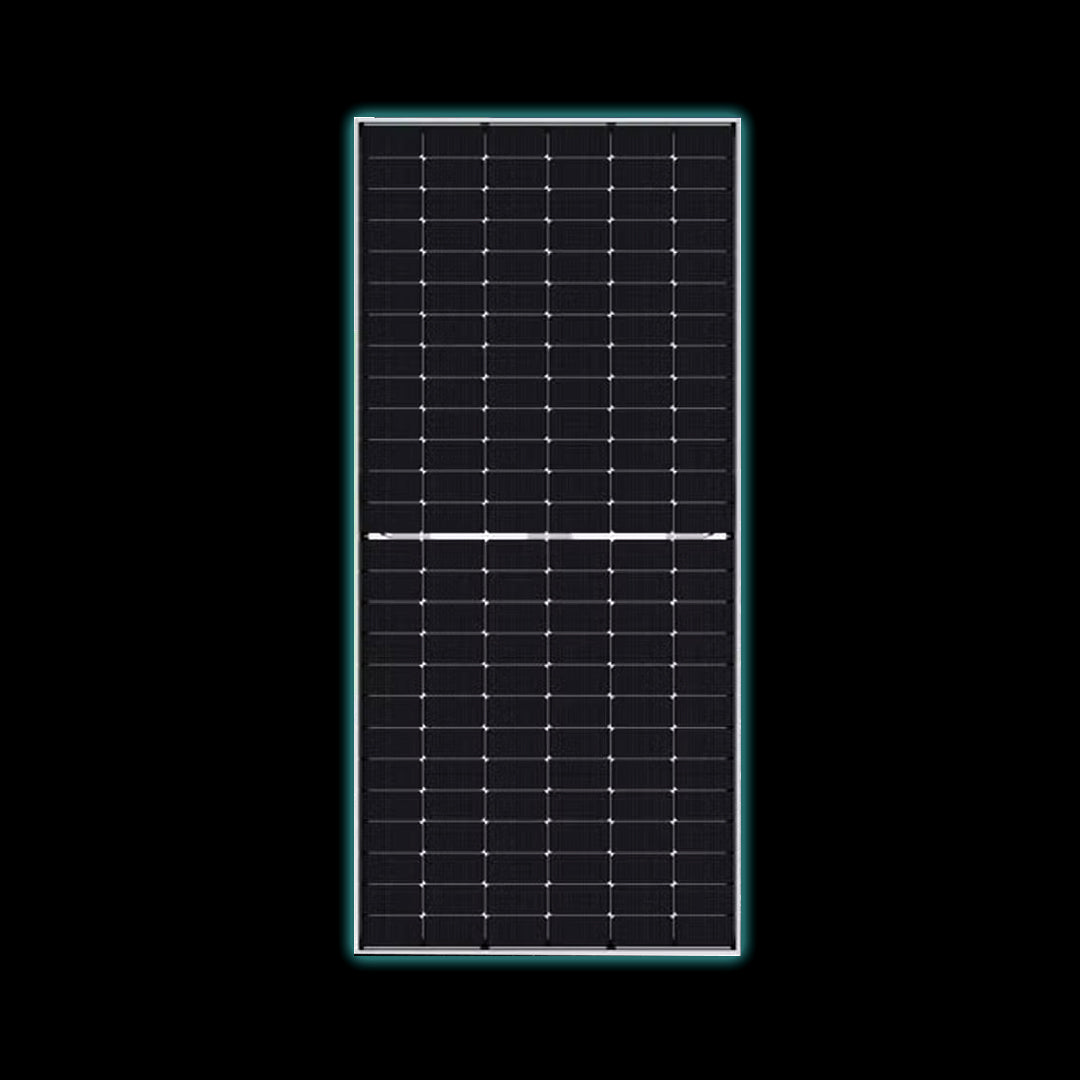

595W Jinko Solar Panel – Tiger Neo N-Type Mono-Facial Module (JKM595N-78HL4-V)

Power your solar projects with the Jinko Tiger Neo 595W N-Type Mono-Facial Solar Panel, engineered for high efficiency, durability, and long-term performance. Featuring advanced Hot 2.0 technology, SMBB cell architecture, and PID resistance, this panel is ideal for residential, commercial, and utility-scale installations.

?? Key Features:

• High Efficiency: Up to 21.29% module efficiency with 595W output
• N-Type Mono-Crystalline Cells: Enhanced reliability and lower LID/LETID
• SMBB Technology: Improved light trapping and current collection
• Durability: Certified to withstand 5400Pa snow load and 2400Pa wind load
• PID Resistance: Excellent anti-PID performance via optimized materials
• Extended Warranty: 12-year product warranty + 30-year linear power warranty
• Low Annual Degradation: Only 0.40% per year over 30 years

?? Specifications:

• Dimensions: 2465 × 1134 × 35 mm
• Weight: 30.6 kg
• Cable Length: +400mm / -200mm (customizable)
• Cell Configuration: 156 cells (2×78)
• Junction Box: IP68 rated
• Connector: TUV 1×4.0mm²
• Operating Temperature: -40°C to +85°C
• Max System Voltage: 1000/1500VDC
• Max Series Fuse Rating: 30A
• Fire & Environmental Resistance: High salt mist and ammonia resistance

? Electrical Performance (STC):

• Power Output: 595W
• Voltage (Voc): 54.80V
• Current (Isc): 13.90A
• Power Tolerance: 0 ~ +3%
• Temperature Coefficients:
  • Pmax: -0.30%/°C
  • Voc: -0.25%/°C
  • Isc: +0.046%/°C
