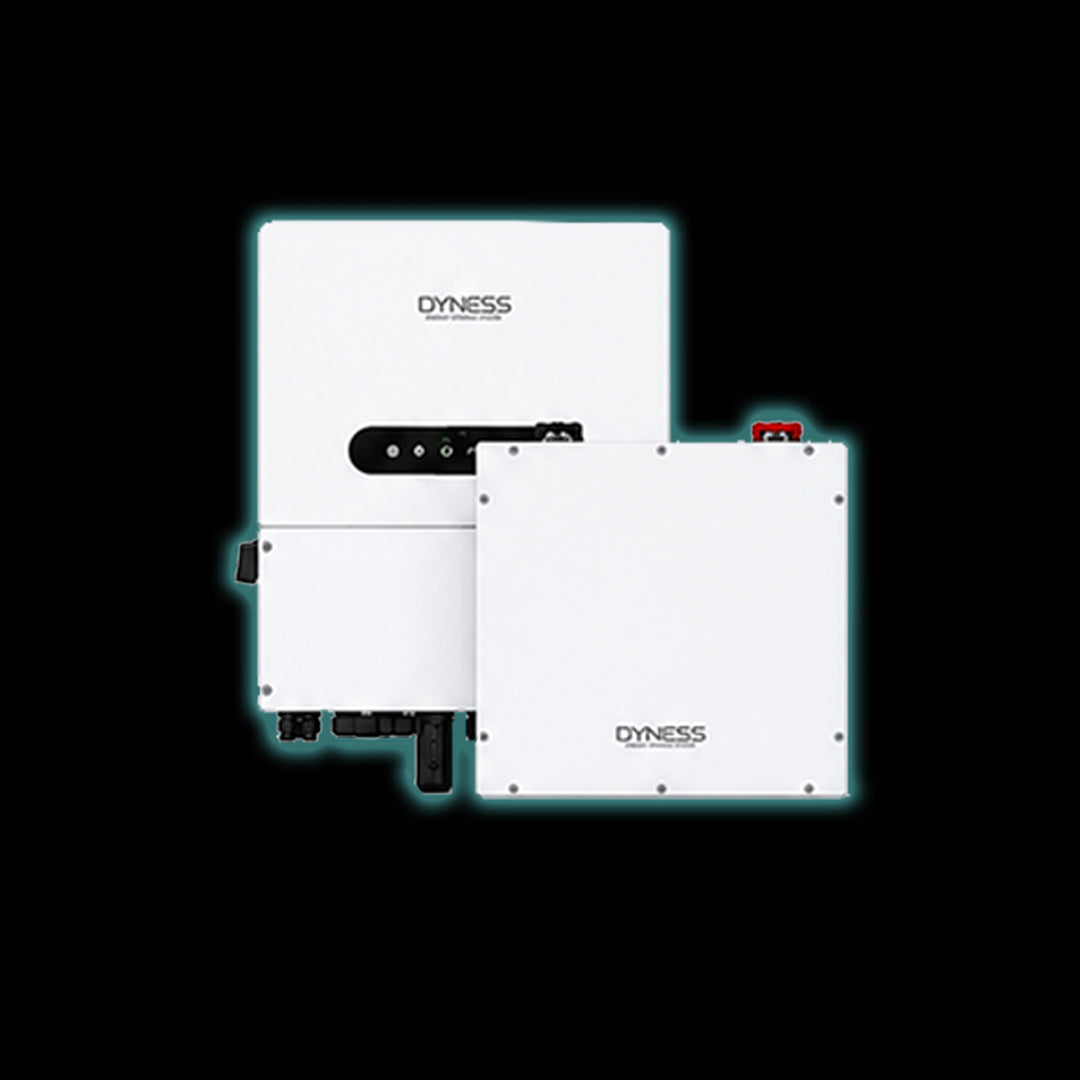

5kW Dyness Backup Combo - 5kW Hybrid Inverter + 5.12kW DL5 Battery

Power your home or business with reliable solar energy storage using the Dyness 5kW Backup Combo, featuring the Dyness 5kW Hybrid Inverter paired with the Dyness DL5 5.12kWh Lithium Battery. Designed for residential and small commercial applications, this complete backup and solar-ready solution delivers seamless power during load shedding, grid outages, and high electricity demand periods.

The Dyness 5kW Hybrid Inverter intelligently manages solar power, battery storage, grid supply, and generator input to maximize energy savings and energy independence. Combined with the high-performance 5.12kWh DL5.0C LiFePO4 lithium battery, this system offers dependable backup power, fast switching, and long-term durability.

Built with advanced Lithium Iron Phosphate (LiFePO4) technology, the Dyness DL5 battery provides enhanced safety, more than 6000 life cycles, and scalable expansion options for growing energy requirements. The inverter supports UPS-grade switching under 4ms for uninterrupted power to essential appliances, making it ideal for homes, offices, security systems, networking equipment, and small businesses.

Key Features

• Complete 5kW solar backup and energy storage solution
• Includes Dyness 5kW Hybrid Inverter and 5.12kWh DL5 Lithium Battery
• LiFePO4 battery chemistry for superior safety and long lifespan
• Over 6000 battery cycles at 90% depth of discharge
• Seamless UPS switching time under 4ms
• Hybrid functionality for solar, battery, grid, and generator integration
• Supports remote monitoring and app connectivity
• Intelligent energy management and peak shaving capability
• Expandable battery storage up to 256kWh
• High efficiency inverter with up to 97.5% efficiency
• Compatible with off-grid and hybrid solar installations
• IP66-rated inverter for durable indoor or outdoor installation
• Ideal for load shedding backup and solar self-consumption

Technical Specifications

Dyness 5kW Hybrid Inverter

• Rated Output Power: 5kW
• Max PV Input Power: 9.6kW
• Battery Voltage Range: 40V – 60V
• Max Charge/Discharge Current: 135A
• UPS Switching Time: <4ms
• Max Efficiency: >97.5%
• Communication: CAN / RS485
• Protection Rating: IP66

Dyness DL5.0C Lithium Battery

• Battery Capacity: 5.12kWh
• Nominal Voltage: 51.2V
• Battery Chemistry: LiFePO4
• Capacity: 100Ah
• Recommended Charge/Discharge Current: 50A
• Peak Discharge Current: 110A (15 seconds)
• Cycle Life: ≥6000 Cycles
• Expandable: Up to 50 units in parallel
• Installation Options: Wall-mounted, floor-standing, stacked

Ideal Applications

• Residential solar systems
• Home backup power
• Load shedding protection
• Small business energy backup
• Off-grid solar installations
• Hybrid solar systems

The Dyness 5kW Backup Combo offers a dependable, scalable, and future-ready energy solution for users looking to reduce reliance on the grid while ensuring uninterrupted power supply.
