605W Longi Hi-Mo6

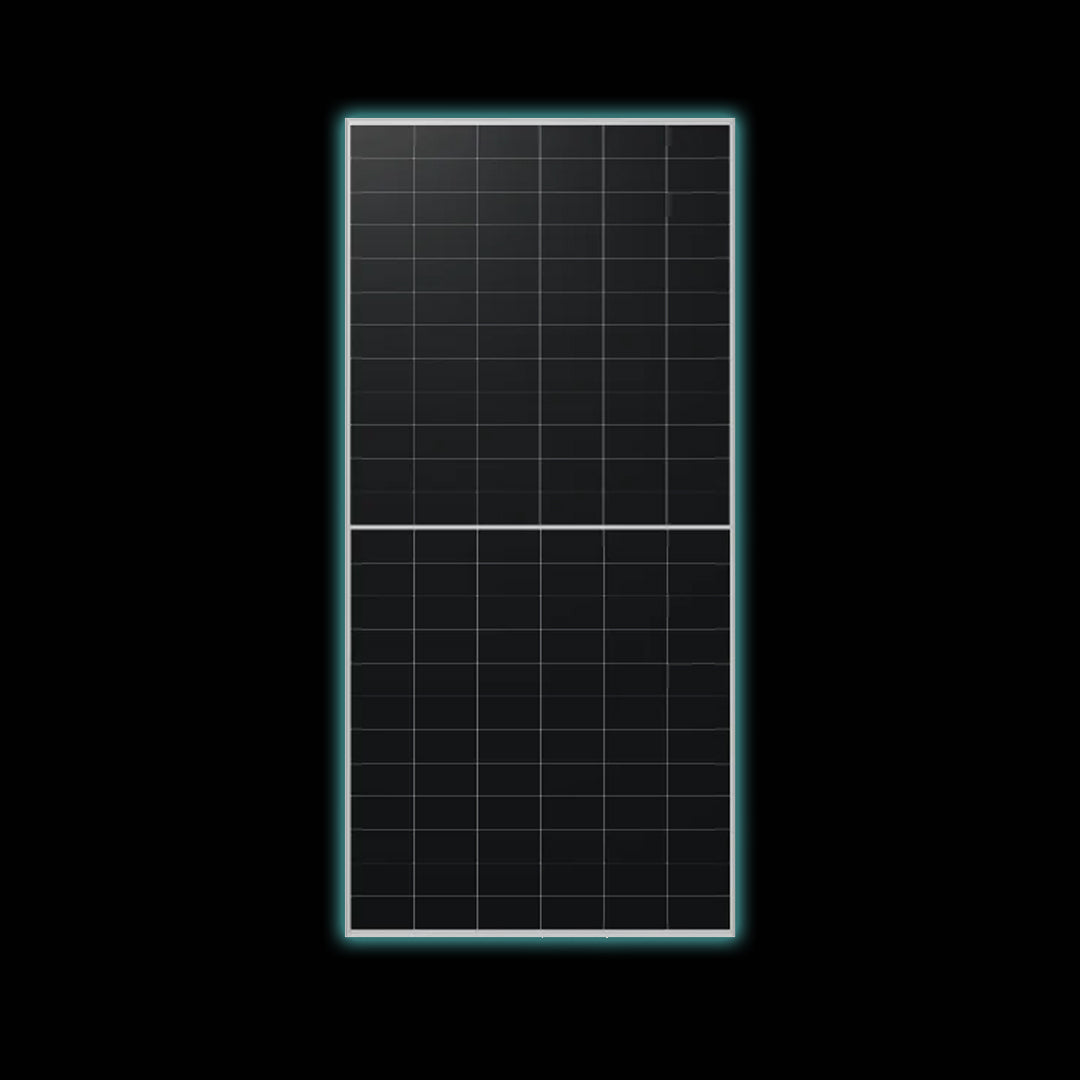

605W Longi Hi-Mo6 LR7-72HTH Solar Panel – Premium Efficiency & Reliability

Power your solar projects with the Longi Hi-Mo6 LR7-72HTH 605W module, a high-performance panel designed for the distribution market. With advanced cell technology and robust construction, this panel delivers exceptional energy output and long-term durability.

Key Features:

• Maximum Power Output: 605W
• Module Efficiency: 22.4%
• Power Tolerance: 0~3%
• Low Degradation: <1% in year one, only 0.40% annually from year 2–25
• Temperature Coefficients:
  • Isc: +0.050%/°C
  • Voc: -0.230%/°C
  • Pmax: -0.280%/°C

Durability & Certifications:

• Certifications: IEC 61215, IEC 61730, UL 61730, ISO9001, ISO14001, ISO45001, IEC62941
• Warranty: 15-year materials & processing + 25-year linear power output
• Mechanical Load: 5400Pa front / 2400Pa rear
• Hail Resistance: Tested with 25mm hailstones at 23m/s

Technical Specifications:

• Dimensions: 2382 × 1134 × 30mm
• Weight: 28.5kg
• Cell Configuration: 144 cells (6×24)
• Junction Box: IP68 rated
• Glass: 3.2mm coated tempered glass
• Frame: Anodized aluminum alloy
• Max System Voltage: DC1500V
• Operating Temperature: -40°C to +85°C
• Fire Rating: IEC Class C

Packaging Info:

• 36 pcs per pallet
• 144 pcs per 20’ GP
• 720 pcs per 40’ HC

Ideal for residential, commercial, and industrial solar installations, the Longi Hi-Mo6 605W panel offers top-tier efficiency, rugged durability, and peace of mind with industry-leading warranties.

605W Longi Hi-Mo6 LR7-72HTH Specification Document
