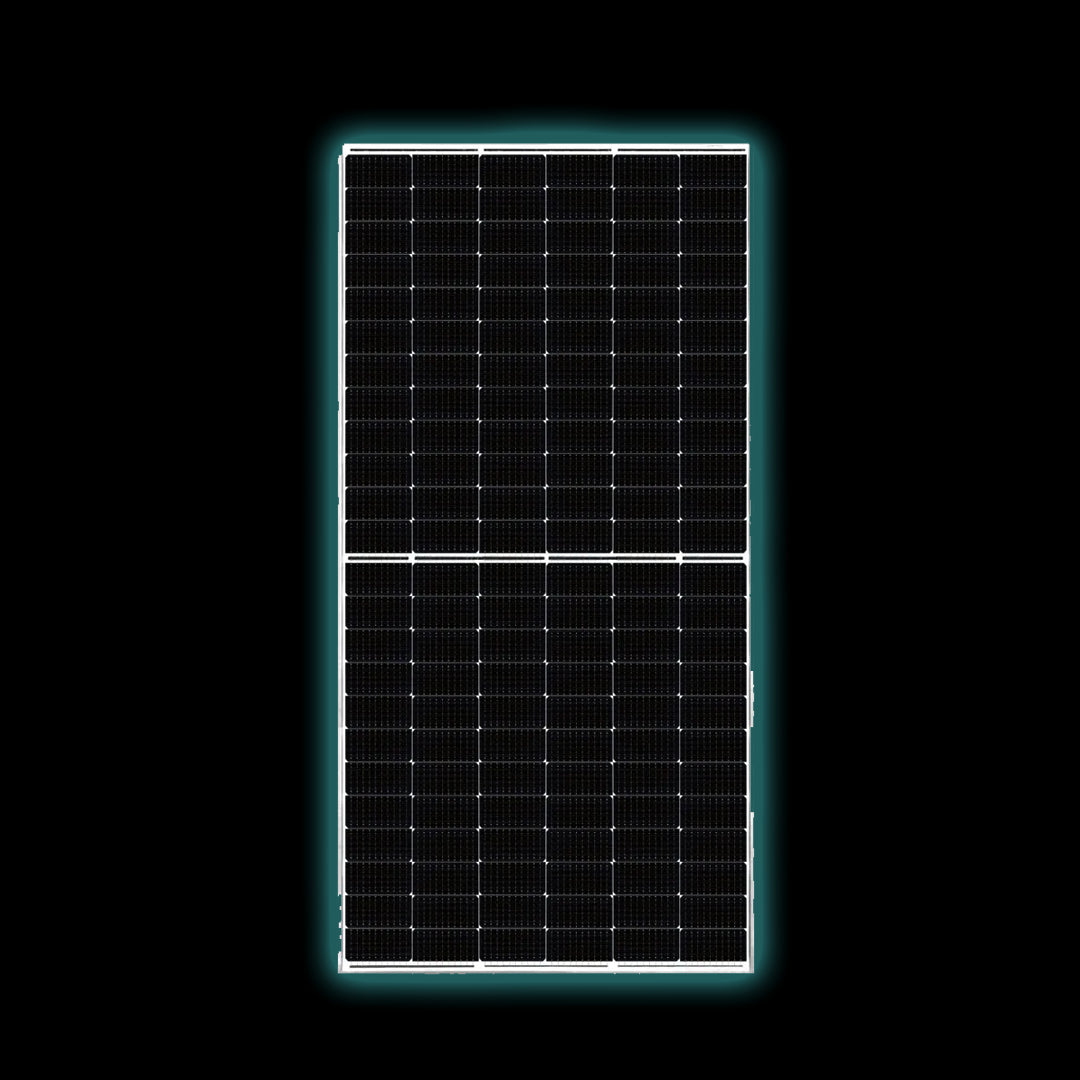

610W JA Solar Bifacial JAM66D45 Panel

Unlock maximum solar efficiency with the 610W JA Solar Bifacial Panel, model JAM66D45-xLB, part of the cutting-edge Deep Blue 4.0 Pro series. Engineered with n-type bifacial double glass technology, this high-performance module delivers exceptional power output, durability, and long-term reliability for residential, commercial, and utility-scale solar installations.

Key Features:

• Rated Power Output: 610W
• Module Efficiency: 22.6%
• Bifacial Gain: Up to 80% rear-side efficiency
• Cell Type: Mono n-type Bycium+ with 16BB (multi-busbar) technology
• Dimensions: 2382 × 1134 × 30 mm
• Weight: 33.1 kg
• Glass: Dual 2.0mm tempered glass (front & back)
• Connector: QC 4.10-351 / MC4-EVO2A
• Junction Box: IP68 rated with 3 diodes

Performance Highlights:

• Superior Low-Light Response: Optimized for performance in low irradiance conditions
• Temperature Coefficient of Power: -0.290%/°C for better performance in hot climates
• Power Tolerance: 0 ~ +3% for guaranteed output
• Durability: Withstands up to 5400Pa front load and 2400Pa back load

Warranty & Certifications:

• 12-Year Product Warranty
• 30-Year Linear Power Output Warranty
• Certified to IEC 61215, IEC 61730, UL, ISO 9001, ISO 14001, ISO 45001, and IEC 62941

Applications:

Perfect for ground-mounted systems, rooftop installations, and solar farms requiring high-efficiency bifacial modules with long-term reliability and low degradation.

610W JA Solar Bifacial JAM66D45 Specifications Document
