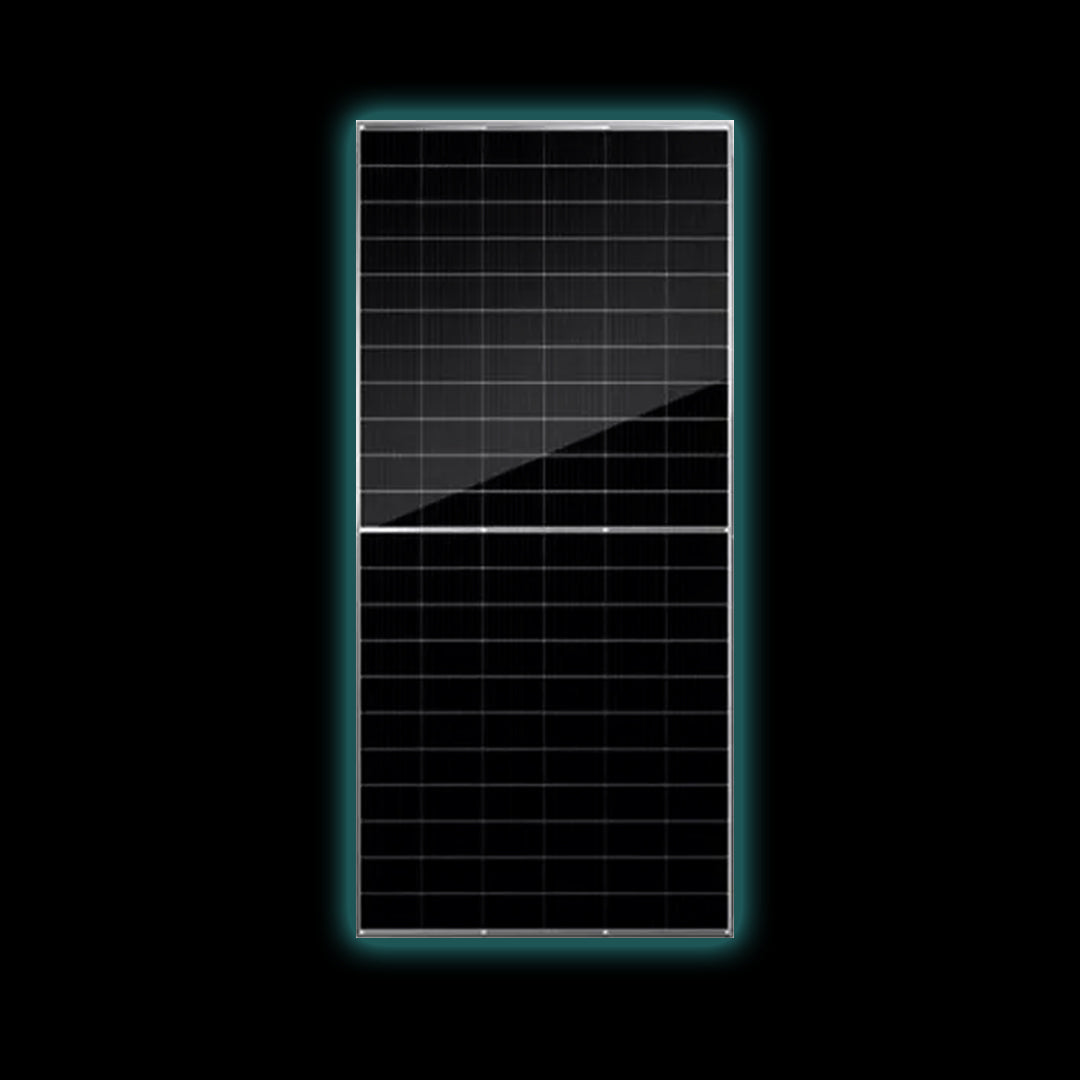

615W Canadian Solar Panel

The 615W Canadian Solar Panel is a high-performance, utility-scale photovoltaic module designed for maximum energy output, long-term reliability, and lower levelized cost of energy. Built with N-type TOPCon bifacial cell technology, this module delivers superior efficiency, reduced degradation, and enhanced performance in hot and demanding environments.

Engineered by Canadian Solar (CSI Solar Co., Ltd.), a global leader in solar manufacturing with over 150 GW of modules delivered worldwide, the 615W panel is ideally suited for commercial, industrial, and large-scale solar installations.

Key Product Benefits

• High Power Output: 615 watts nominal power for increased energy density per module
• Advanced N-Type TOPCon Cells: Higher efficiency, improved temperature performance, and long-term stability
• Bifacial Design: Up to 85 percent rear-side power bifaciality for additional energy yield when mounted on reflective surfaces
• Excellent Hot Climate Performance: Low temperature coefficient of −0.29 percent per degree Celsius ensures stable output in high temperatures
• Low Degradation: First-year degradation ≤ 1 percent, then ≤ 0.4 percent annually
• Strong Mechanical Durability: Tested for heavy snow loads up to 5400 Pa and wind loads up to 2400 Pa
• Higher System Value: Designed to reduce balance-of-system costs and improve overall project economics

Electrical Specifications (STC – 615W Model)

• Nominal Max Power (Pmax): 615 W
• Module Efficiency: 22.8 percent
• Operating Voltage (Vmp): 41.0 V
• Operating Current (Imp): 15.01 A
• Open Circuit Voltage (Voc): 48.2 V
• Short Circuit Current (Isc): 16.02 A
• Maximum System Voltage: 1500 V (IEC / UL)

Mechanical Specifications

• Cell Technology: N-type TOPCon bifacial cells
• Cell Configuration: 132 half-cells
• Module Dimensions: 2382 x 1134 x 30 mm
• Weight: 32.8 kg
• Front Glass: 2.0 mm heat-strengthened glass with anti-reflective coating
• Back Glass: 2.0 mm heat-strengthened glass
• Frame: Anodized aluminum alloy
• Junction Box: IP68 rated with 3 bypass diodes
• Connector Type: MC4-EVO2A or T6
• Operating Temperature Range: −40°C to +85°C

Reliability and Quality Standards

• Certified to IEC 61215 and IEC 61730
• Fire Safety Rating: UL 61730 Type 29 / IEC Class C
• Manufacturing Certifications:
  • ISO 9001 (Quality Management)
  • ISO 14001 (Environmental Management)
  • ISO 45001 (Occupational Health and Safety)
• Resistance to PID and LeTID for long-term performance stability

Warranty

• Product Warranty: 12-year enhanced warranty on materials and workmanship
• Performance Warranty: 30-year linear power output warranty
  • Year 1 degradation: ≤ 1 percent
  • Annual degradation thereafter: ≤ 0.4 percent

Ideal Applications

• Utility-scale solar power plants
• Commercial and industrial rooftop installations
• Ground-mounted and tracker-based solar systems
• Projects requiring high energy yield per square meter
