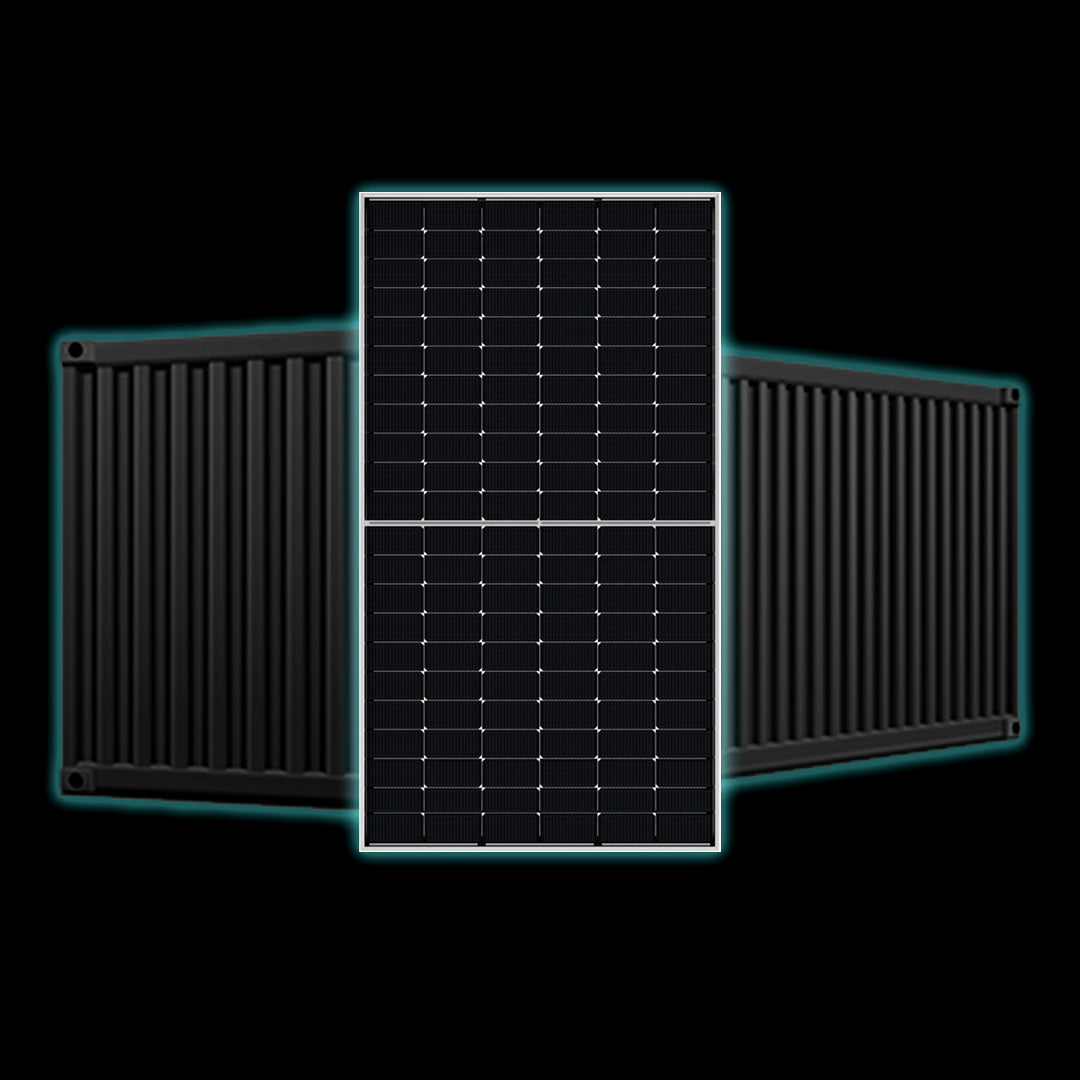

615W Jinko Bifacial Solar Panel 66HL4M-BDV (Container of 720)

Maximize your solar investment with the high-efficiency Jinko 615W Bifacial Solar Panel (66HL4M-BDV). Engineered with cutting-edge N-type monocrystalline cells and SMBB (Small Multi-Busbar) technology, this dual-glass bifacial module delivers superior performance, durability, and energy yield—ideal for utility-scale and commercial solar projects.

Key Features:

• High Power Output: 615W maximum power with up to 22.77% module efficiency under standard test conditions (STC).
• Bifacial Technology: Captures sunlight from both sides, increasing total energy generation.
• Durable Dual-Glass Design: 2.0mm heat-strengthened glass on both sides for enhanced mechanical strength and weather resistance.
• PID Resistance & Hot 2.0 Technology: Ensures long-term reliability and reduced degradation.
• Certified Quality: IP68-rated junction box, 1500V DC system voltage, and TÜV-certified for global standards.

Mechanical Specifications:

• Dimensions: 2382 × 1134 × 30 mm
• Weight: 32.4 kg per panel
• Cell Configuration: 132 N-type monocrystalline cells (2×66)
• Frame: Anodized aluminum alloy
• Connector Cables: 1×4.0mm², (+): 400mm, (?): 200mm (customizable)

Packaging & Shipping:

• Container Load: 720 panels per 40' HQ container
• Packaging: 36 panels per pallet, 72 panels per stack

Performance Ratings:

• Maximum Power (Pmax): 615W
• Voltage at Pmax (Vmp): 40.60V
• Current at Pmax (Imp): 15.15A
• Open Circuit Voltage (Voc): 48.88V
• Short Circuit Current (Isc): 12.93A
• Temperature Coefficients: Pmax -0.29%/°C, Voc -0.25%/°C, Isc +0.04%/°C

Applications: Perfect for large-scale solar farms, commercial rooftops, and ground-mounted installations seeking high energy yield and long-term performance.

615W Jinko Bifacial Solar Panel 66HL4M-BDV Specification Document
