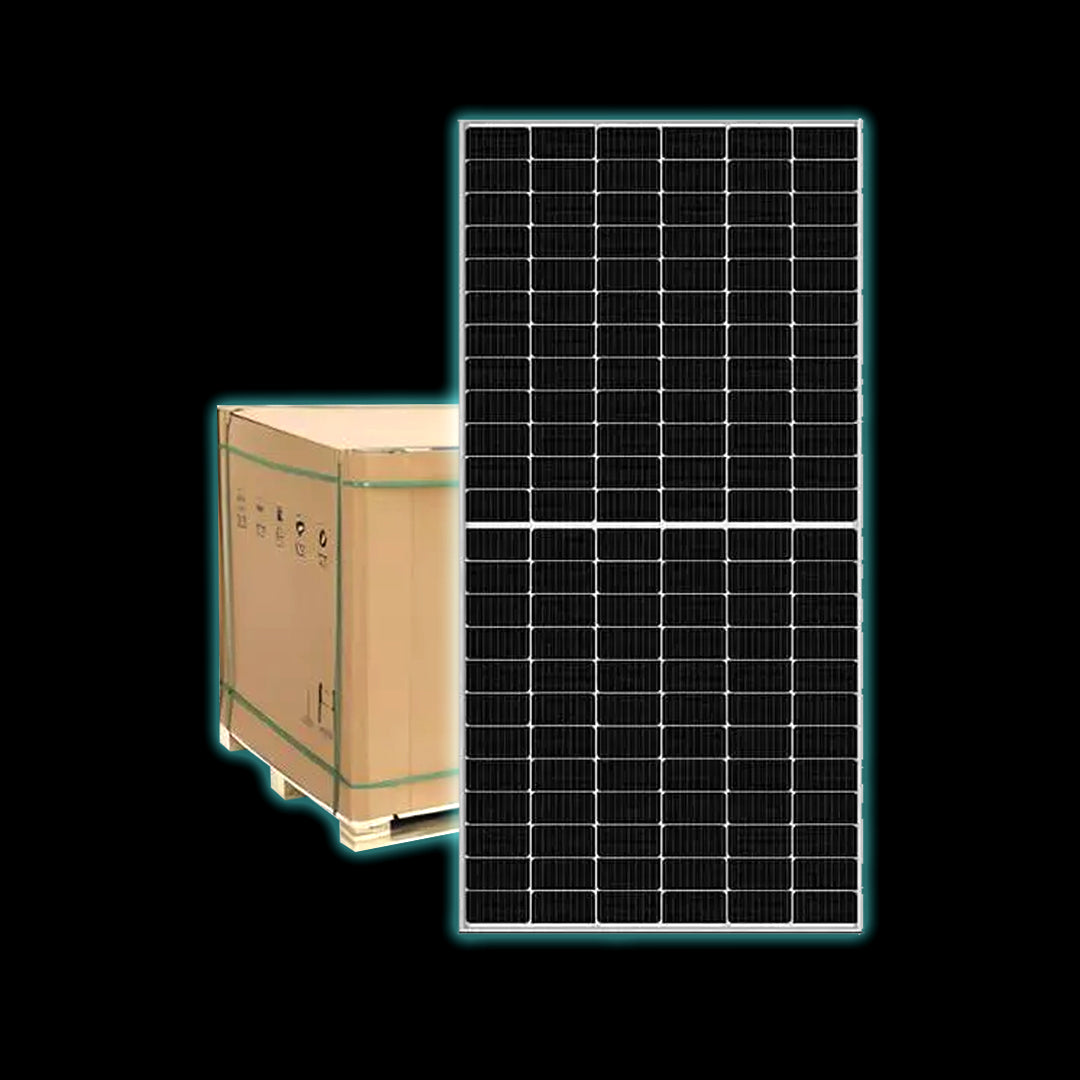

625W Aiko Comet 2 N Mono Glass Module A-MAH72MW (Pallet of 33) | Western Cape

625W Aiko Comet 2N Mono Glass Solar Panel – High-Efficiency N-Type ABC Technology

Upgrade your solar energy system with the Aiko Comet 2N 625W Mono Glass Module, engineered for superior performance, durability, and aesthetics. Featuring cutting-edge N-Type ABC cell technology, this panel delivers exceptional efficiency and long-term reliability, making it ideal for residential, commercial, and industrial installations.

?? Key Features:

• High Output Power: 625W maximum power with up to 23.7% module efficiency
• Advanced Cell Technology: N-Type ABC cells for enhanced performance and lower degradation
• Durability & Design: 3.2mm tempered glass and anodized aluminum frame for robust protection
• Temperature Resilience: Excellent temperature coefficients (Pmax: -0.26%/°C) for hot climates
• Partial Shading Optimization: Maintains output even in shaded conditions
• Micro-Crack Resistance: Built to withstand mechanical stress and environmental wear
• Fire & Hail Rated: IEC Class C fire rating and hail resistance up to 25mm at 23 m/s

?? Specifications:

• Dimensions: 2323 × 1134 × 33 mm
• Weight: 27.7 kg
• Cell Count: 144 (6×24)
• Connector: MC4 Compatible
• Junction Box: IP68 with 3 bypass diodes
• Cable: 4mm² (IEC) / 12AWG (UL), +350mm or custom length
• Max System Voltage: DC1500V
• Static Load: Front 5400Pa / Back 2400Pa

??? Environmental Ratings:

• Operating Temperature: -40°C to +85°C
• Max Series Fuse Rating: 25A
• Protection Class: Class II
• Power Tolerance: 0 ~ +3%
• Annual Degradation: ?0.35% (Years 2–30)
• First-Year Degradation: ?1%

??? Warranty:

• 15-Year Product Warranty
• 30-Year Linear Performance Warranty

?? Packaging:

• 33 panels per pallet
• 165 panels per 20' GP container
• 660 panels per 40' HC container

625W Aiko Comet 2 N Mono Glass Module A-MAH72MW Specification Document
