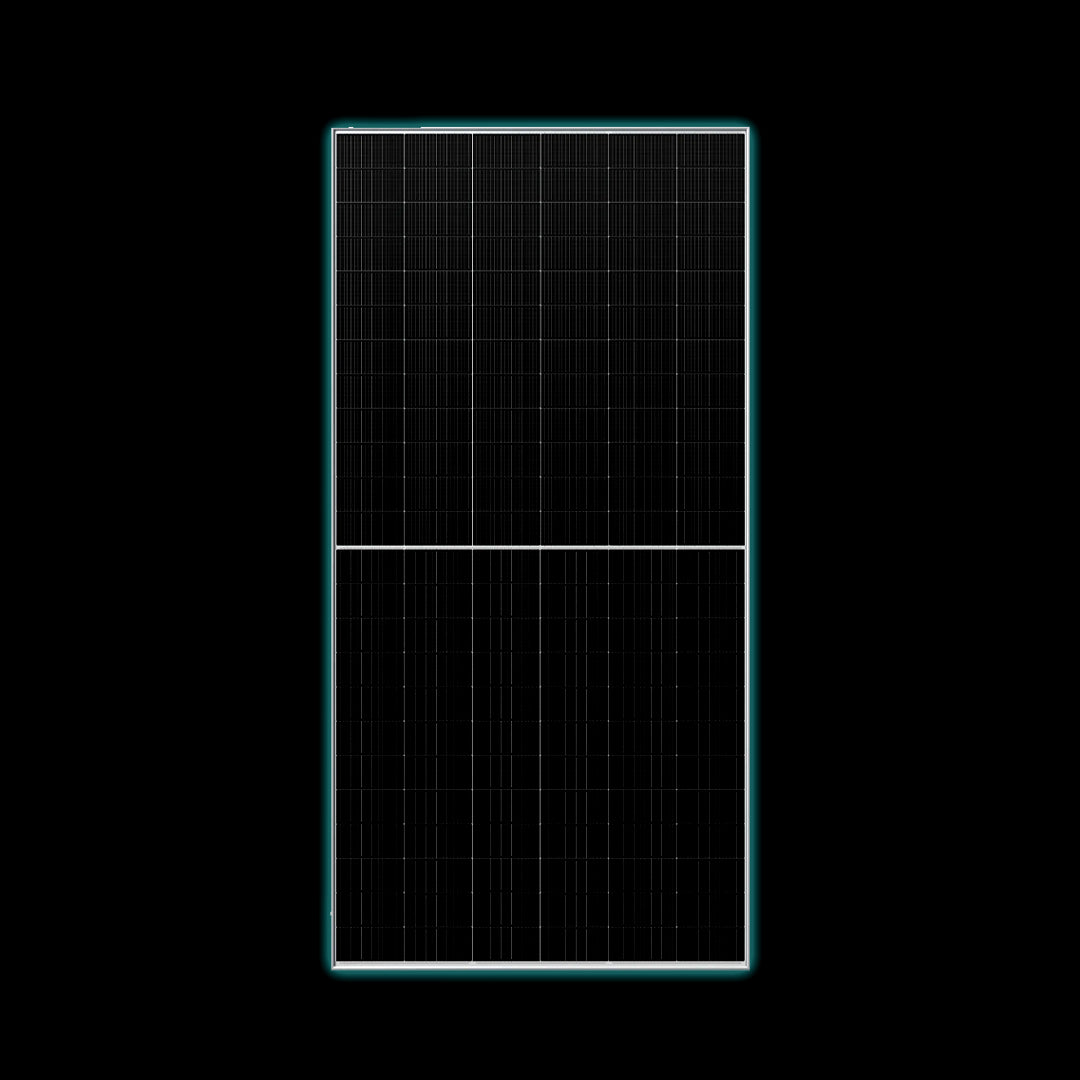

625W Trina Vertex Backsheet Mono Panels NE19R

The Trina Vertex NE19R 625W solar panel is engineered for maximum energy output and long-term reliability. Built on Trina’s advanced 210mm N-type i-TOPCon platform, this module is ideal for commercial, industrial, and residential solar installations seeking high performance and low energy costs.

Key Features:

• High Power Output: Rated at 625 watts with up to 23.1% module efficiency, delivering exceptional energy yield per square meter.
• Advanced Cell Technology: N-type i-TOPCon monocrystalline cells with half-cut design improve contact resistance and rear reflection for enhanced performance.
• Durability & Reliability: Certified for resistance to salt mist, ammonia, sand, PID, LID, and LeTID. Built to withstand extreme weather and mechanical loads.
• Optimized System Design: Low voltage configuration supports higher string power, reducing Balance of System (BOS) and Levelized Cost of Energy (LCOE) by up to 5%.
• Temperature Performance: Low temperature coefficient of -0.29%/°C ensures consistent output in hot climates.
• Warranty Protection: Backed by a 12-year product warranty and a 25-year performance warranty with only 1% first-year degradation and 0.4% annual attenuation.

Technical Specifications:

• Cell Type: N-type i-TOPCon Monocrystalline
• Cell Count: 132 cells
• Dimensions: 2382 × 1134 × 30 mm
• Weight: 27.9 kg
• Front Glass: 3.2 mm AR-coated tempered glass
• Backsheet: White
• Frame: Anodized aluminum alloy
• Connector: MC4 EVO2 / TS4 Plus
• Cable: 4.0 mm², customizable length
• Operating Temperature: -40°C to +85°C
• Max System Voltage: 1500V DC
• Max Series Fuse Rating: 30A
• Packaging: 36 modules per box, 720 per 40' container

Applications:

Perfect for rooftop systems, ground-mounted arrays, and utility-scale solar projects. Fully compatible with mainstream inverters, optimizers, and mounting systems.
