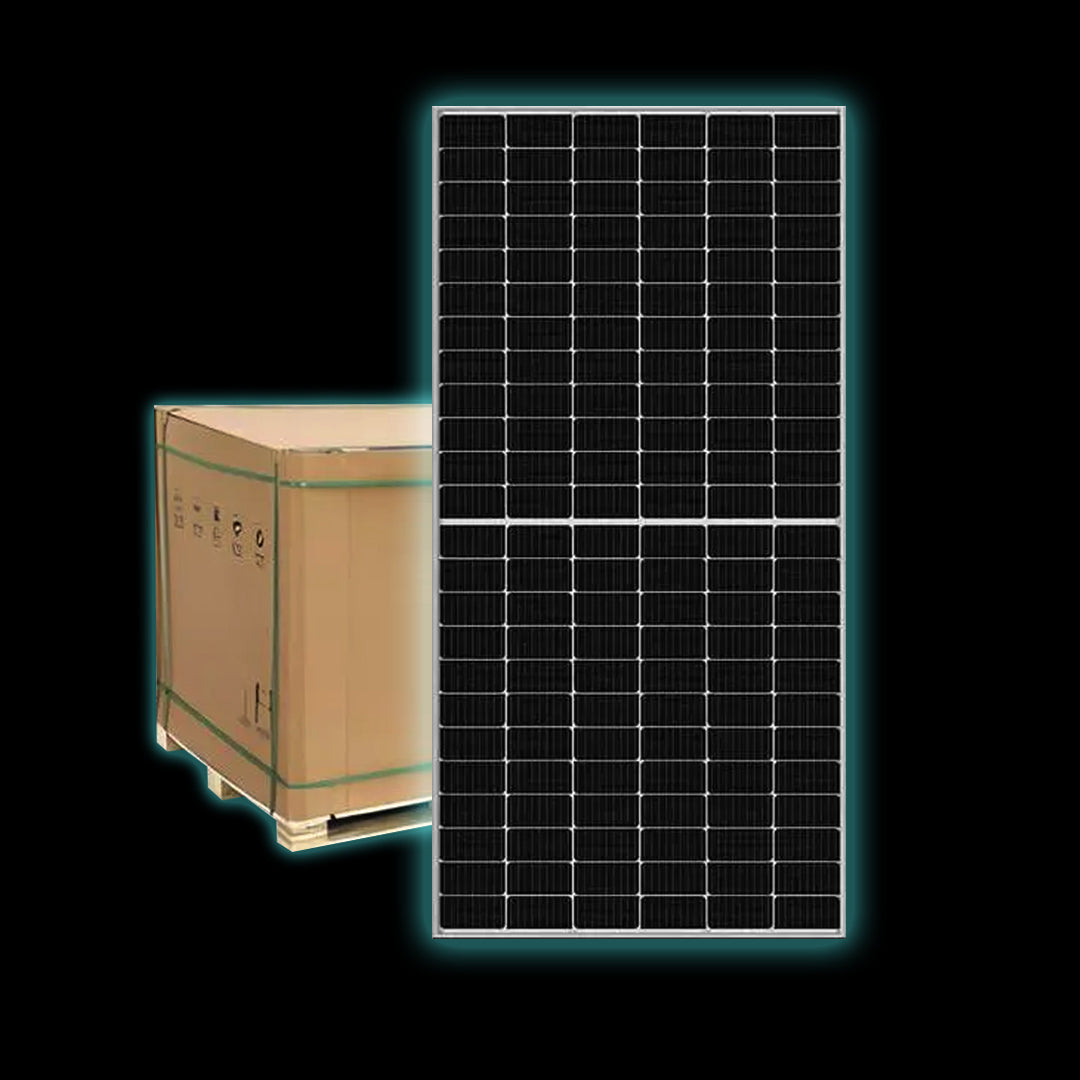

650W Aiko Solar Panel – Comet 2U Mono-Glass Module S-G650-MCH72DW

The AIKO 650W Comet 2U Mono-Glass Solar Panel is a premium, high-efficiency module designed for maximum energy output and long-term reliability. Built with advanced N-Type ABC cell technology and a sleek anodized aluminum frame, this panel is ideal for residential, commercial, and utility-scale solar installations.

Key Features:

• High Output: Delivers up to 650W with 24.1% module efficiency under STC conditions.
• Advanced Cell Technology: N-Type ABC cells for superior energy conversion and long-term durability.
• Durability: Micro-crack resistance and hail-tested (25mm at 23 m/s) for extreme weather resilience.
• Temperature Performance:
  • Isc Coefficient: +0.05%/°C
  • Voc Coefficient: -0.22%/°C
  • Pmax Coefficient: -0.26%/°C
• Low Degradation: ≤1% first-year degradation, ≤0.35% annual degradation from year 2–30.
• Certifications: IEC 61730, IEC 61215, ISO 9001, ISO 14001, ISO 45001.
• Warranty: 15-year product warranty (extendable to 25 years) and 30-year linear performance warranty.
• Design: Sleek mono-glass construction with enhanced aesthetic value and partial shading optimization.

Specifications:

• Dimensions: 2382 × 1134 × 30 mm
• Weight: 28.1 kg ±3%
• Connector: MC4 Compatible / MC4-Evo2
• Junction Box: IP68 rated with 3 bypass diodes
• Cable: 4mm² (IEC), 12AWG (UL), +350mm / -280mm or customizable
• Cell Count: 144 (6×24)
• Maximum System Voltage: DC1500V
• Static Load Capacity: Front 5400Pa / Back 2400Pa
• Fire Rating: IEC Class C

Packaging:

• 36 panels per pallet
• 144 panels per 20' GP container
• 720 panels per 40' HC container

Applications:

Perfect for high-performance solar installations requiring maximum power density, long-term reliability, and modern design. Suitable for rooftops, solar farms, and commercial energy systems.
