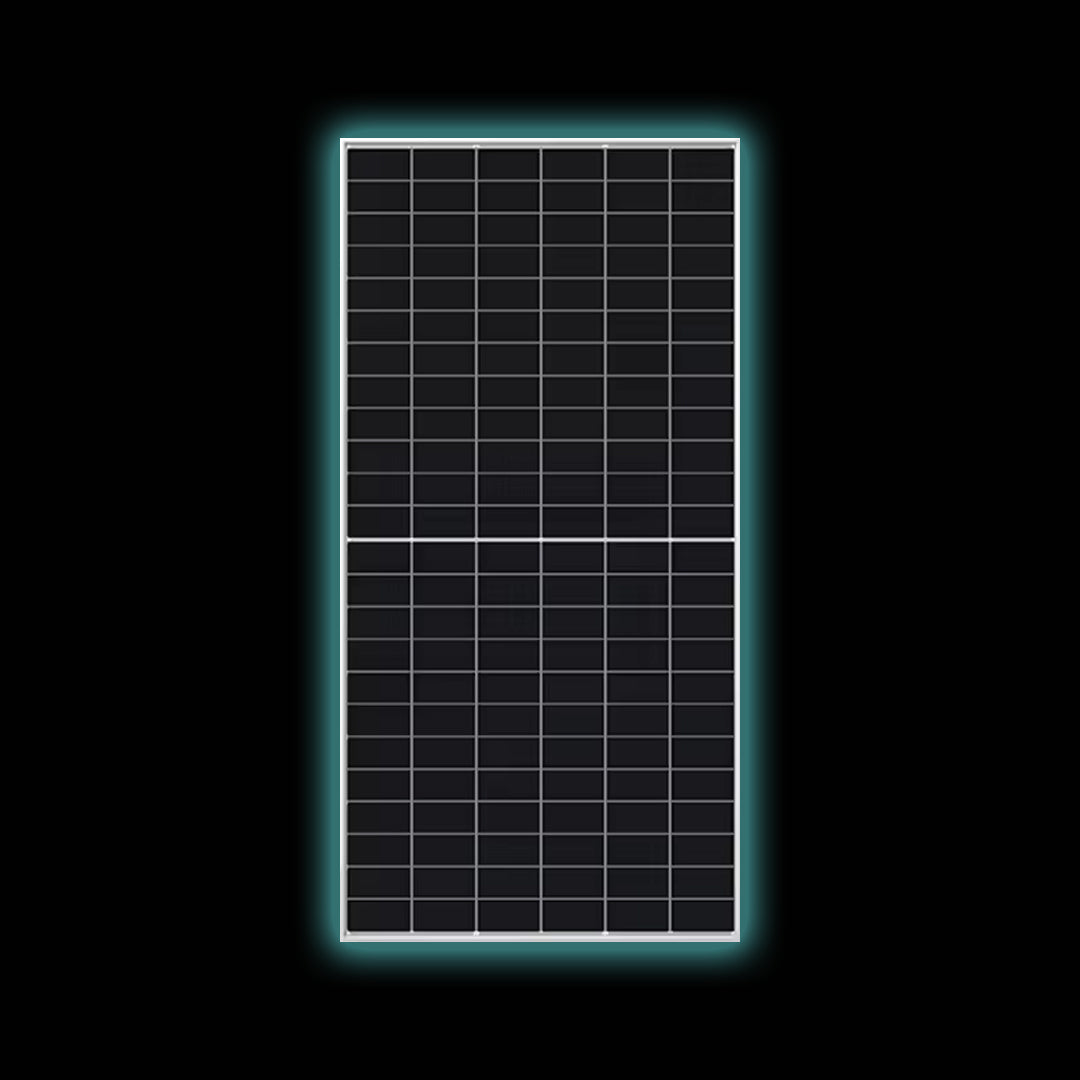

650W Aiko Stellar 1N+ Dual Glass Module Solar Panel S-A665-MDE72MW

The Aiko Stellar 1N+ 650W Dual Glass Solar Panel (S-A665-MDE72MW Series) is a next-generation high-performance solar module designed for utility-scale, commercial, industrial, and large residential solar installations. Built with advanced N-Type ABC (All Back Contact) technology, this premium dual-glass solar panel delivers exceptional efficiency, superior energy yield, and long-term reliability in a wide range of environmental conditions.

Engineered to maximize energy production, the 650W Aiko Stellar module achieves up to 24.1% efficiency, allowing installers and system owners to generate more power from fewer panels while reducing balance-of-system costs. Its innovative cell architecture minimizes power losses, enhances performance under partial shading conditions, and maintains strong output even during high-temperature operation.

The robust dual-glass construction features heat-strengthened glass on both sides, providing outstanding resistance to moisture, corrosion, micro-cracks, and environmental degradation. With a bifacial factor of up to 70%, the module can take advantage of reflected sunlight from the rear side, increasing overall energy generation and improving project returns.

Designed for demanding applications, the Aiko Stellar series supports 1500V DC systems, features an IP68-rated junction box, and withstands front-side loads up to 5400Pa. These capabilities make it an ideal choice for solar farms, commercial rooftops, carports, and ground-mounted installations requiring maximum durability and power output.

Backed by a 15-Year Product Warranty and an industry-leading 30-Year Linear Performance Warranty, the panel offers excellent long-term value. First-year degradation is limited to 1%, with annual degradation of just 0.35% from years 2 to 30, ensuring outstanding lifetime energy production.

Key Features

• 650W high-power solar panel
• Advanced N-Type ABC cell technology
• Up to 24.1% module efficiency
• Premium dual-glass construction
• Bifacial energy generation capability
• Superior performance in partial shading conditions
• Excellent temperature coefficient for improved hot-climate performance
• Enhanced micro-crack resistance and durability
• IP68-rated junction box
• Compatible with 1500V DC systems
• Front load rating of 5400Pa
• 15-Year Product Warranty
• 30-Year Linear Performance Warranty
• Low annual degradation for higher lifetime yield
• Ideal for commercial, industrial, agricultural and utility-scale solar projects

Technical Specifications

• Model Series: S-A665-MDE72MW / AIKO-G650-MCH72Dw
• Rated Power: 650W
• Cell Technology: N-Type ABC Monocrystalline
• Module Efficiency: 24.1%
• Bifacial Factor: 70% ±5%
• Number of Cells: 144 (6 × 24)
• Glass Type: Dual Glass, 2.0mm + 2.0mm Heat-Strengthened Glass
• Frame: Anodized Aluminium
• Dimensions: 2382 × 1134 × 30 mm
• Weight: 33.5 kg
• Junction Box: IP68, 3 Bypass Diodes
• Maximum System Voltage: 1500V DC
• Operating Temperature: -40°C to +85°C
• Fire Rating: IEC Class A
• Maximum Static Load: Front 5400Pa / Rear 2400Pa

The Aiko Stellar 650W Dual Glass Solar Panel is an excellent choice for customers seeking a high-efficiency, low-degradation, bifacial solar module that delivers maximum energy generation, long-term reliability, and lower levelized cost of electricity (LCOE) for modern solar projects.
