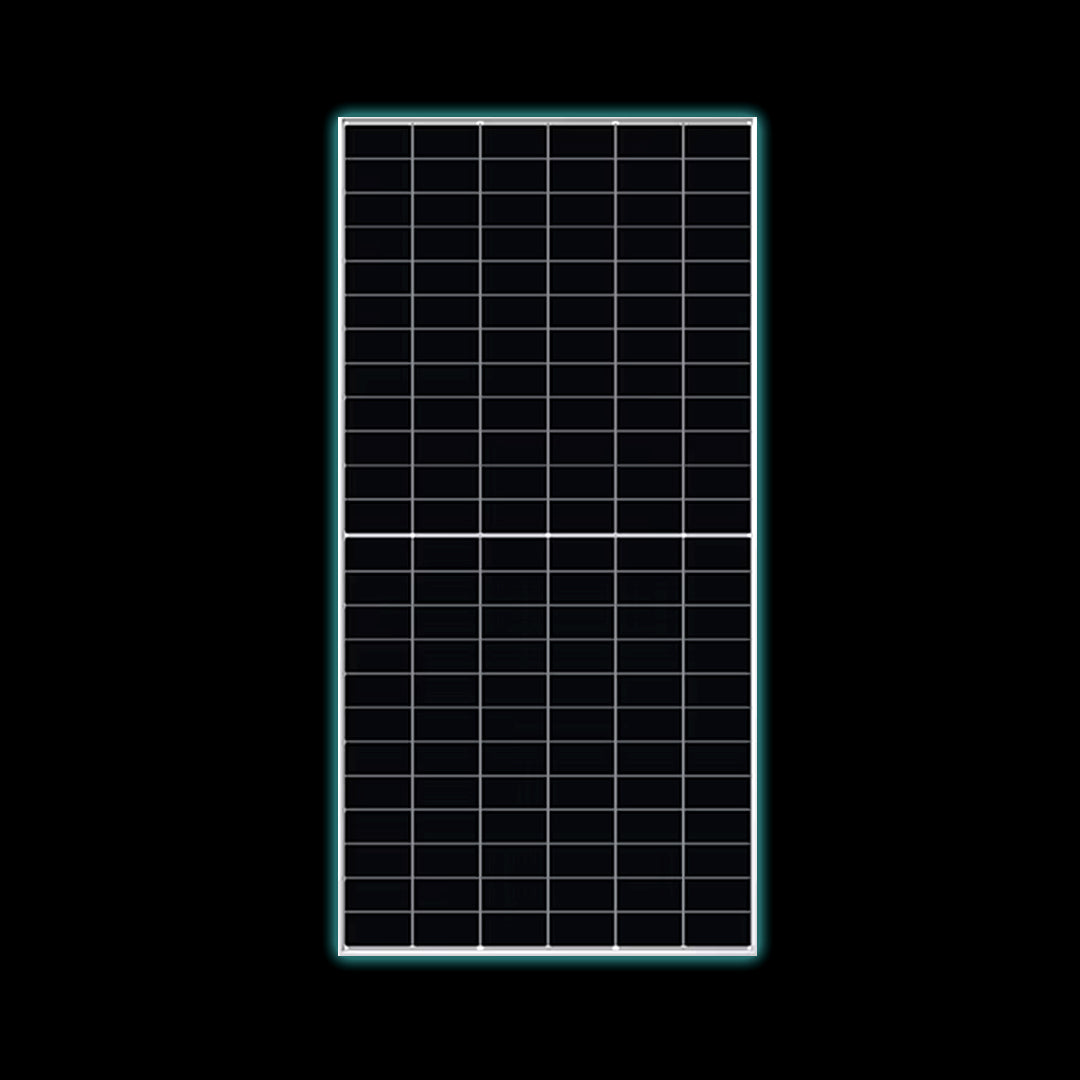

660W Aiko Comet 3N72 Dual-Glass Module Solar Panel S-A660-MDEDW

The 660W Aiko Comet 3N72 Dual-Glass Module Solar Panel S-A660-MDEDW is a high-performance solar solution designed for commercial, industrial, agricultural, and utility-scale installations. Built with advanced N-Type ABC (All Back Contact) cell technology and durable dual-glass construction, this premium solar panel delivers exceptional energy generation, enhanced reliability, and long-term performance in demanding environments.

Key Features

• 660W maximum power output for higher energy production and reduced installation costs.
• High module efficiency of 24.4% for maximum power density and improved space utilization.
• Advanced N-Type ABC cell technology for superior efficiency, lower losses, and improved long-term energy yield.
• Durable dual-glass design with 2.0mm + 2.0mm coated semi-tempered glass for enhanced protection and longevity.
• Partial shading optimisation technology helps maintain power output in real-world conditions.
• Excellent temperature coefficient of -0.26%/°C for improved performance in hot climates.
• Resistant to micro-cracks for enhanced reliability and durability over the lifetime of the module.
• Supports DC 1500V systems, making it ideal for large-scale solar installations.
• IP68-rated junction box provides superior protection against moisture, dust, and harsh environmental conditions.
• High mechanical load rating of 5400Pa front load and 2400Pa rear load resistance.

Technical Specifications

• Model: S-A660-MDEDW / AIKO-A660-MDE72Dw
• Rated Power (Pmax): 660W
• Module Efficiency: 24.4%
• Cell Type: N-Type ABC
• Open Circuit Voltage (Voc): 54.20V
• Maximum Power Voltage (Vmp): 45.50V
• Short Circuit Current (Isc): 15.18A
• Maximum Power Current (Imp): 14.51A
• Dimensions: 2382 × 1134 × 30 mm
• Weight: 32.2 kg ±3%
• Operating Temperature: -40°C to +70°C
• Maximum System Voltage: 1500V DC

Long-Term Performance

The Aiko Comet 3N72 is engineered for exceptional long-term energy production. With first-year degradation limited to ≤1% and annual degradation of ≤0.35% from years 2 to 30, the module is designed to retain approximately 88.85% of its original output after 30 years.

Warranty

• 15-Year Product Warranty
• 30-Year Linear Performance Warranty

Ideal Applications

Perfect for commercial rooftops, industrial facilities, agricultural projects, solar farms, utility-scale developments, and large residential installations where maximum efficiency, long-term reliability, and superior energy yield are essential.
