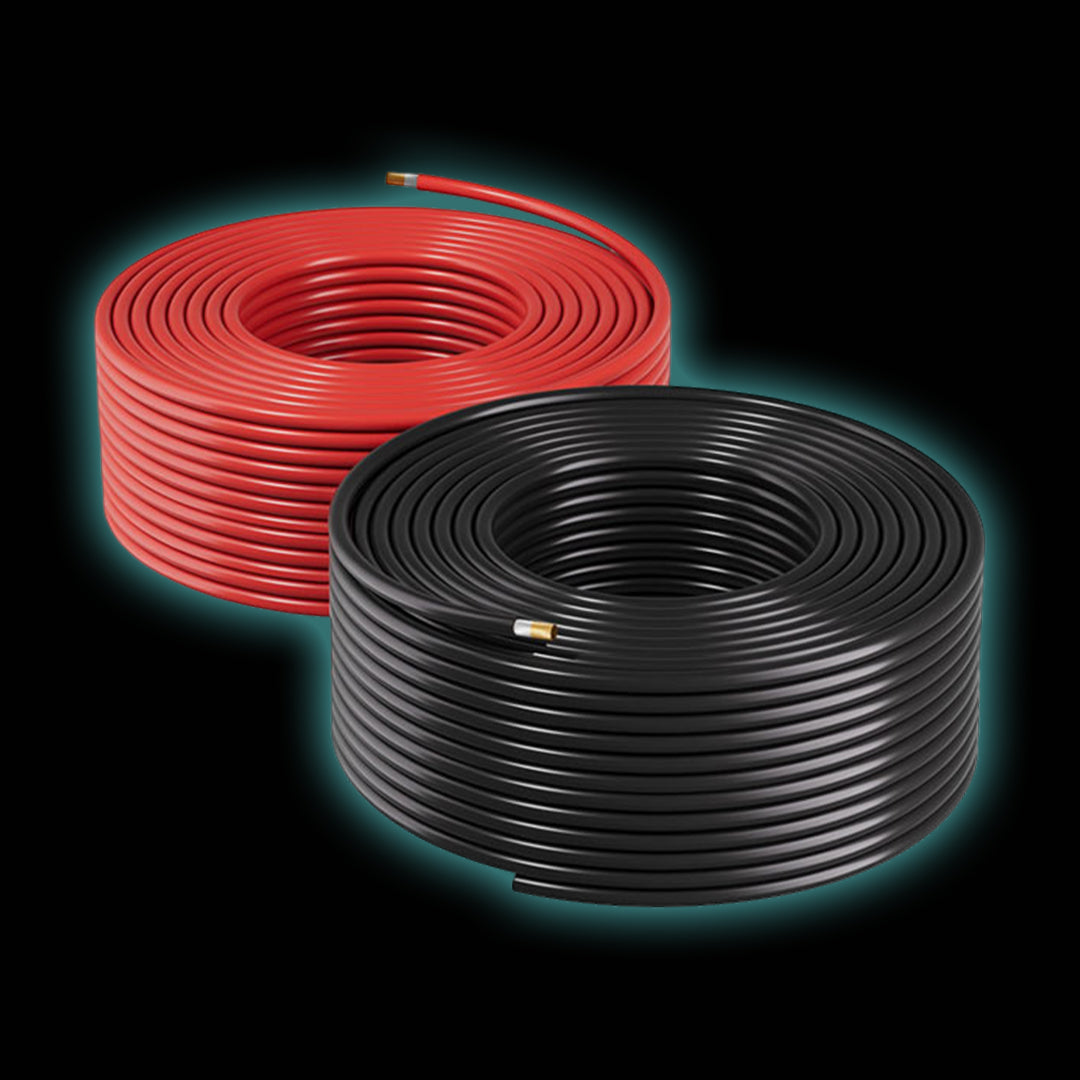

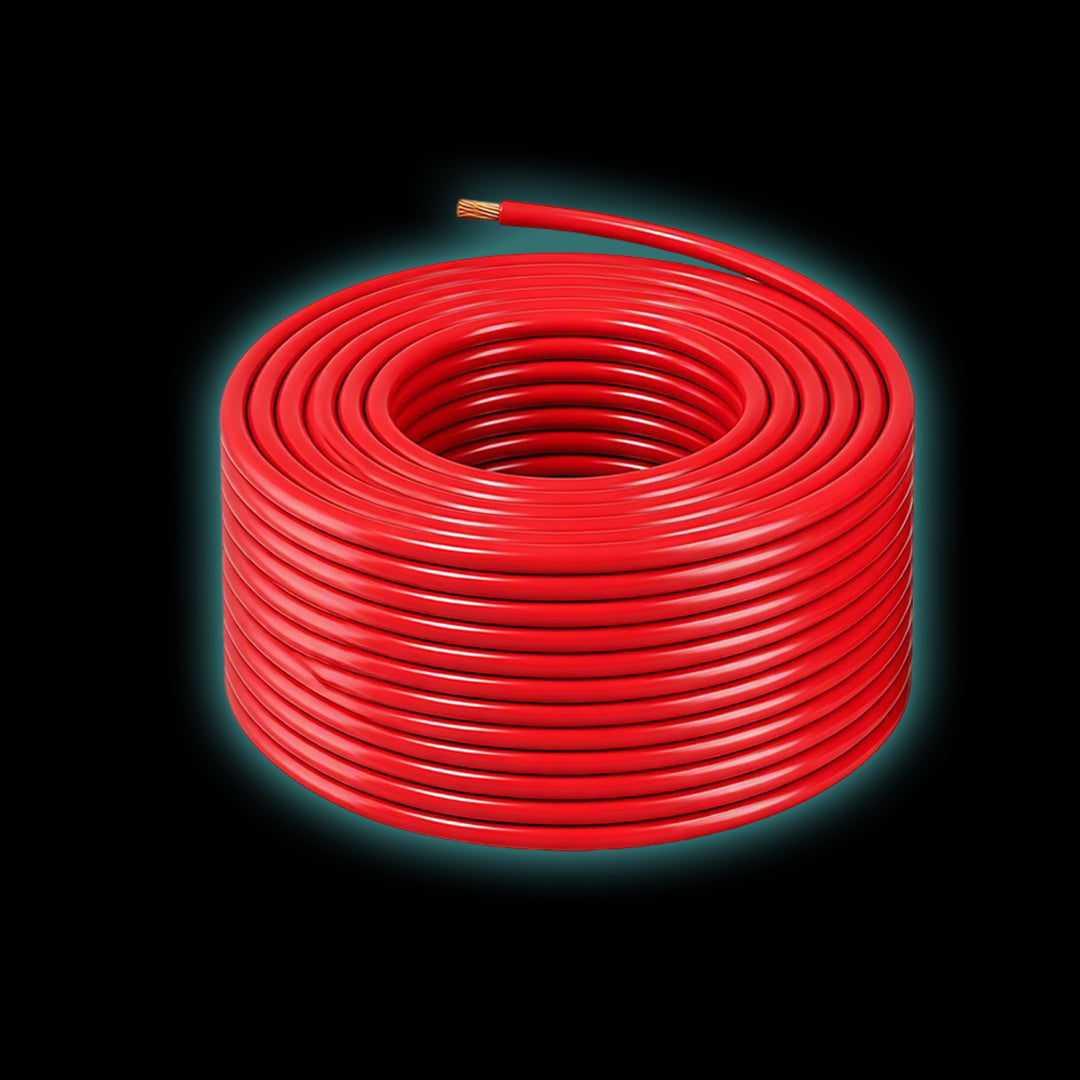

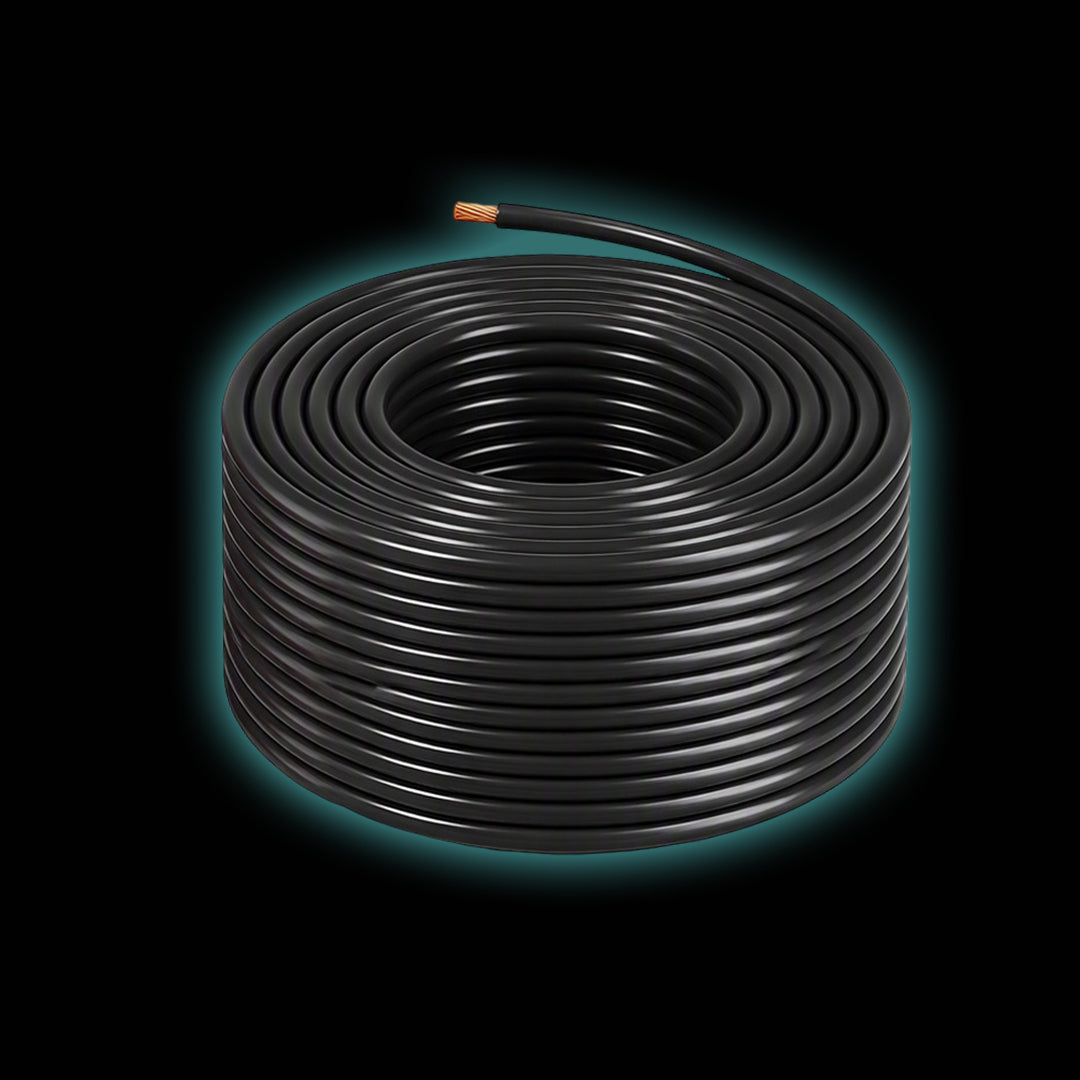

6mm² Zimmer Safety PV Cable TUV PV2000DC (TCA) 2000VDC Red and Black – 1000m Roll

The 6mm² Zimmer Safety Solar Cable TUV PV2000DC (TCA) 2000VDC Red & Black 1000m Roll is a premium photovoltaic cable solution designed for professional solar installations requiring maximum reliability, safety, and long-term performance. Manufactured with high-quality tinned copper alloy (TCA) conductors and advanced cross-linked polyolefin (XLPO) insulation, this cable is engineered to withstand harsh environmental conditions while delivering efficient DC power transmission in residential, commercial, industrial, and utility-scale solar projects.

Rated at 2000VDC and TÜV certified, the Zimmer Safety Solar Cable is suitable for modern high-voltage photovoltaic systems. Its UV-resistant, low-smoke, halogen-free construction ensures exceptional durability in outdoor environments, making it ideal for rooftop solar installations, solar farms, battery energy storage systems, hybrid solar systems, and off-grid applications.

Key Features

• 1000m roll of premium 6mm² solar cable
• Rated for up to 2000VDC photovoltaic systems
• TÜV certified for solar applications
• Tinned Copper Alloy (TCA) conductor for enhanced corrosion resistance
• UV-resistant XLPO insulation and sheath
• Low Smoke Halogen Free (LSHF) construction
• Suitable for indoor and outdoor installations
• Excellent resistance to moisture, ozone, and weathering
• Flexible Class 5 conductor for easier cable routing and installation
• Wide operating temperature range from -40°C to +90°C
• Available in Red and Black for clear DC polarity identification

Technical Specifications

Product Name: Zimmer Safety Solar Cable TUV PV2000DC (TCA)
Cable Size: 6mm²
Conductor Material: Tinned Copper Alloy (TCA)
Voltage Rating: 2000VDC
Insulation Material: Cross-Linked Polyolefin (XLPO)
Sheath Material: UV-Resistant XLPO
Cable Colours: Red and Black
Temperature Range: -40°C to +90°C
Certification: TÜV Approved
Halogen Free: Yes
UV Resistant: Yes
Application: Solar Photovoltaic Systems
Roll Length: 1000 Metres

Applications

The Zimmer 6mm² PV2000DC Solar Cable is designed for use in:

• Solar panel string wiring
• DC connections between PV modules and inverters
• Battery energy storage systems
• Hybrid solar installations
• Off-grid solar systems
• Commercial and industrial solar projects
• Utility-scale photovoltaic power plants
• Solar combiner box connections

Package Includes

• 1 x 1000m Roll of 6mm² Zimmer Safety Solar Cable TUV PV2000DC (TCA) 2000VDC Red or Black

Why Choose Zimmer Safety Solar Cable?

Designed for long-term reliability and superior electrical performance, Zimmer Safety Solar Cable provides installers and system integrators with a trusted solution for demanding solar applications. The combination of TÜV certification, 2000VDC rating, UV resistance, and tinned copper alloy conductors ensures dependable operation throughout the lifespan of a solar energy system.
