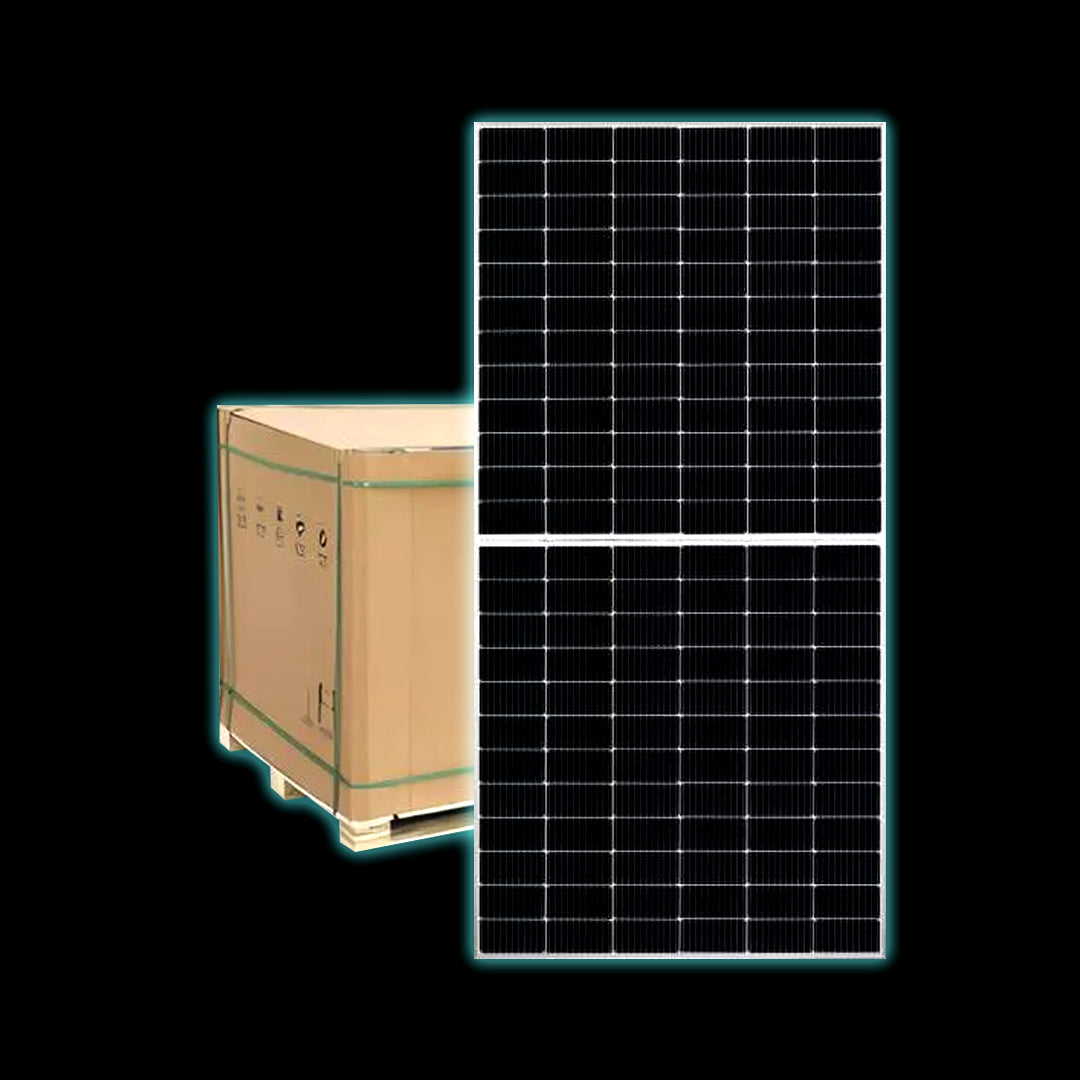

700W JA Solar Panel Bifacial (Pallet of 33) | Gauteng

700W JA Solar Panel – Bifacial Double Glass | JAM66D46 LB Series

Unlock maximum solar efficiency with the 700W JA Solar Bifacial Panel, part of the cutting-edge Deep Blue 4.0 Pro series. Engineered with n-type Bycium+ cells, MBB half-cell technology, and double glass bifacial design, this panel delivers superior performance, durability, and energy yield.

?? Key Features:

• High Power Output: Rated at 700W with up to 23.0% module efficiency
• Bifacial Technology: Generates power from both sides for up to 10% extra yield
• Durability: Built with 2.0mm double glass and IP68 junction box for extreme weather resistance
• Low Degradation: Only 1% first-year degradation, followed by 0.4% annually over 30 years
• Certified Quality: IEC, UL, ISO 9001/14001/45001, and IEC 62941 certified

?? Specifications:

• Dimensions: 2384 × 1303 × 33 mm
• Weight: 38.2 kg
• Cell Type: Mono n-type, 132 cells (6×22)
• Operating Temp: -40°C to +85°C
• Max System Voltage: 1500V DC
• Fire Rating: UL Type 29 / Class C
• Packaging: 33 pcs/pallet, 594 pcs/40HQ container

? Performance at STC:

• Voc: 48.20 V | Vmp: 40.42 V
• Isc: 18.43 A | Imp: 17.32 A
• Power Tolerance: 0 ~ +3%
• Temperature Coefficients:
  • Isc: +0.045%/°C
  • Voc: -0.250%/°C
  • Pmax: -0.290%/°C

?? Ideal For:

• Residential & commercial rooftop installations
• Ground-mounted solar farms
• Projects requiring high efficiency and long-term reliability

700W JA Bifacial Specifications Document
