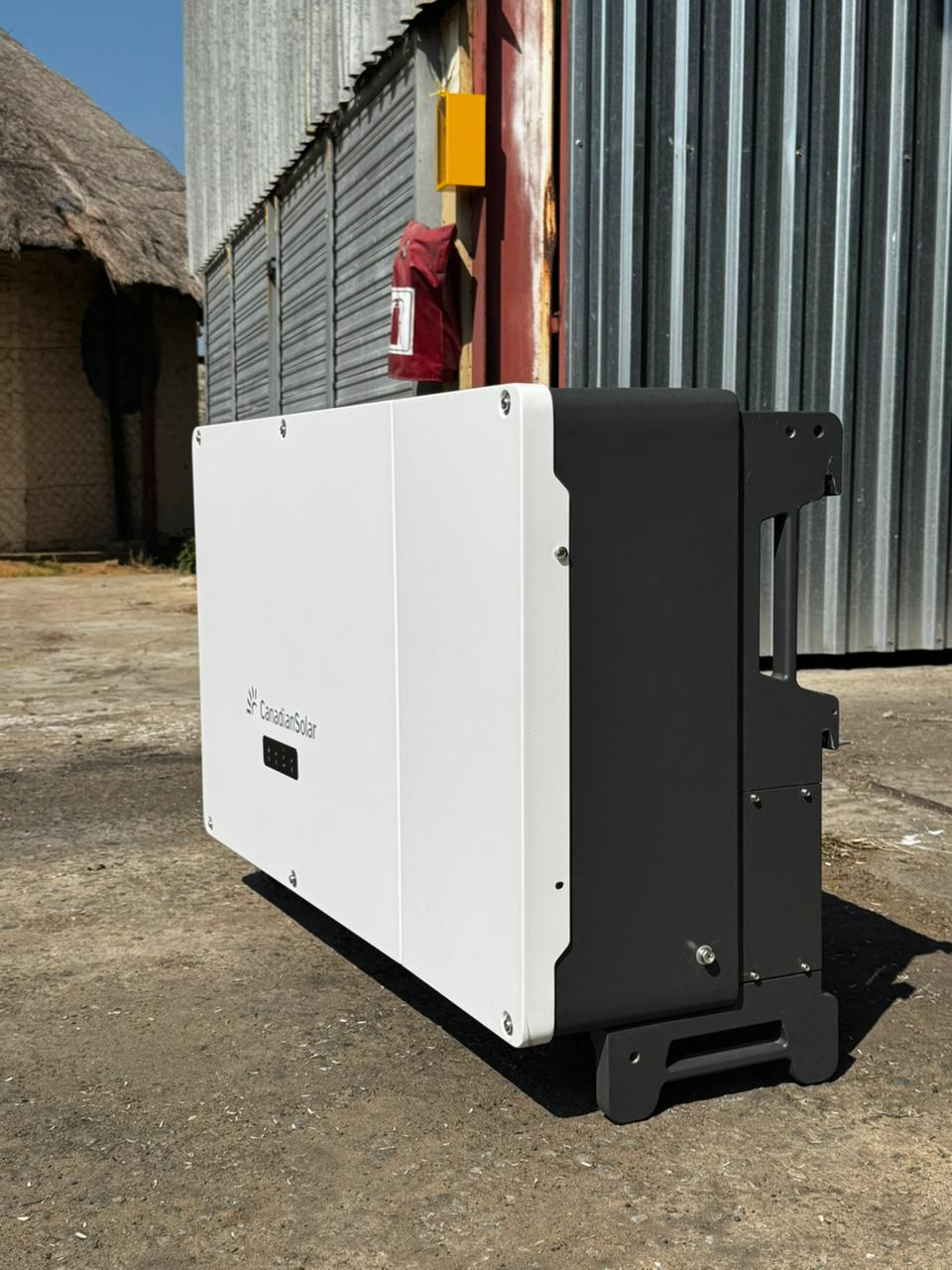

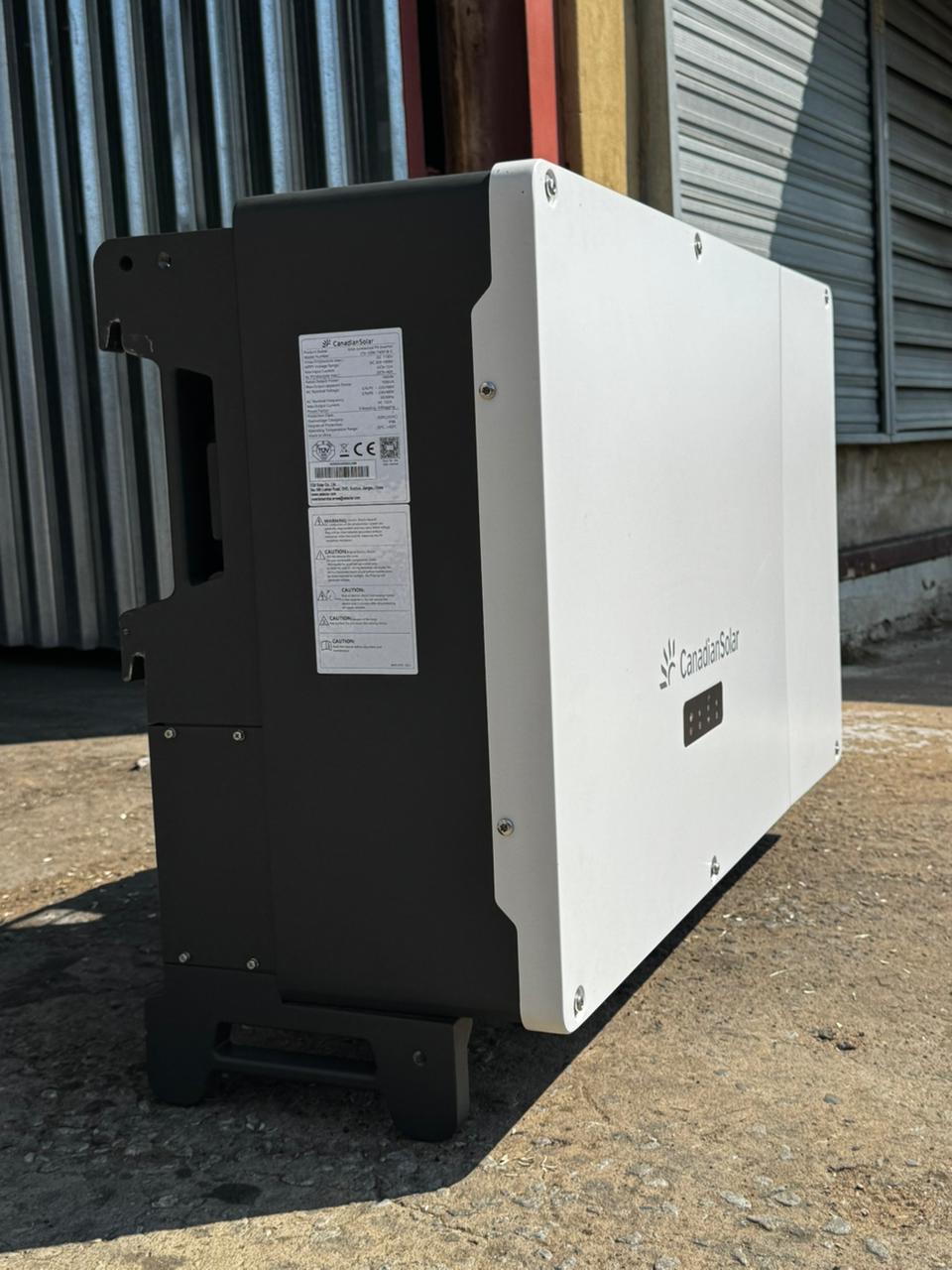

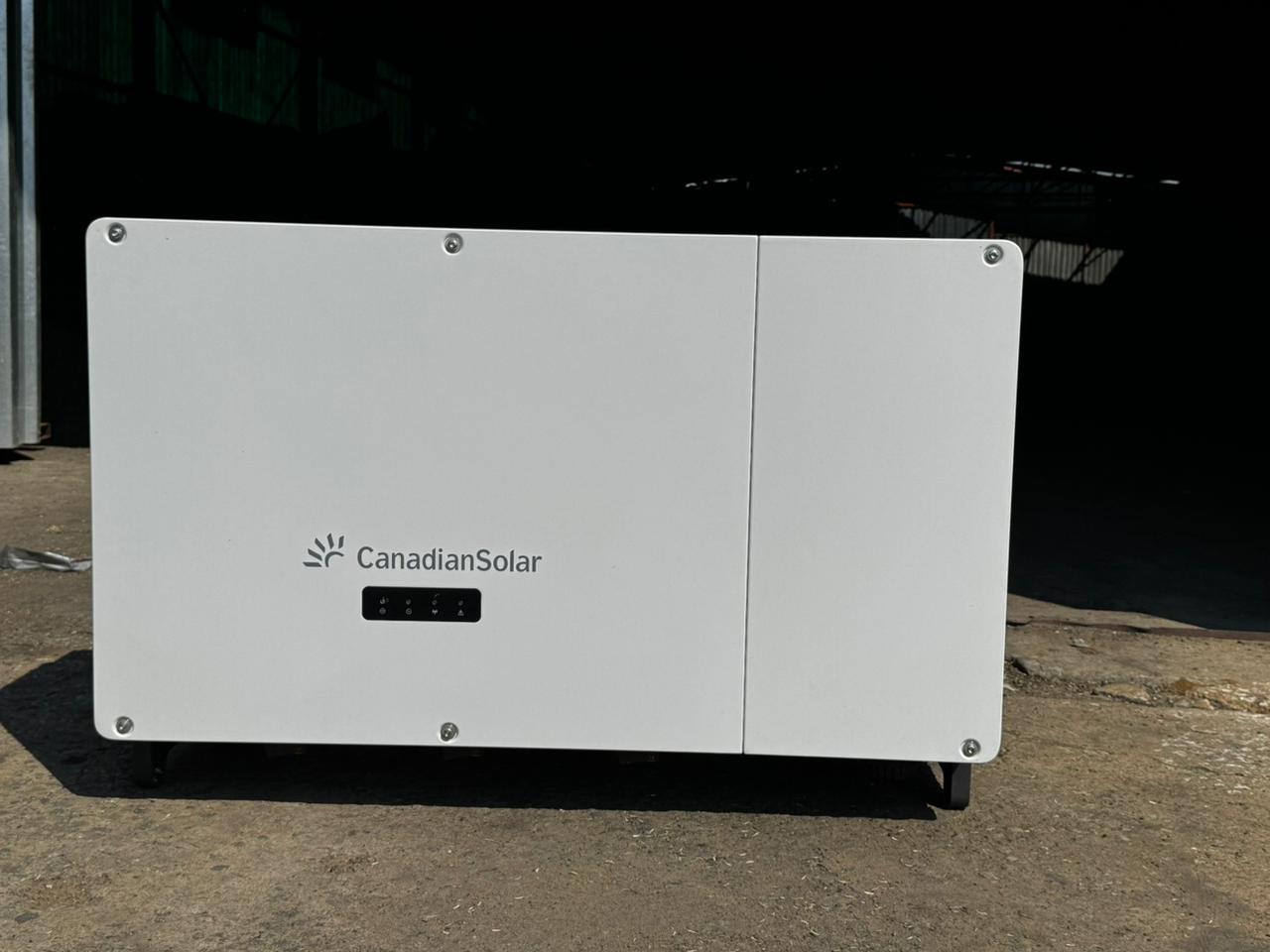

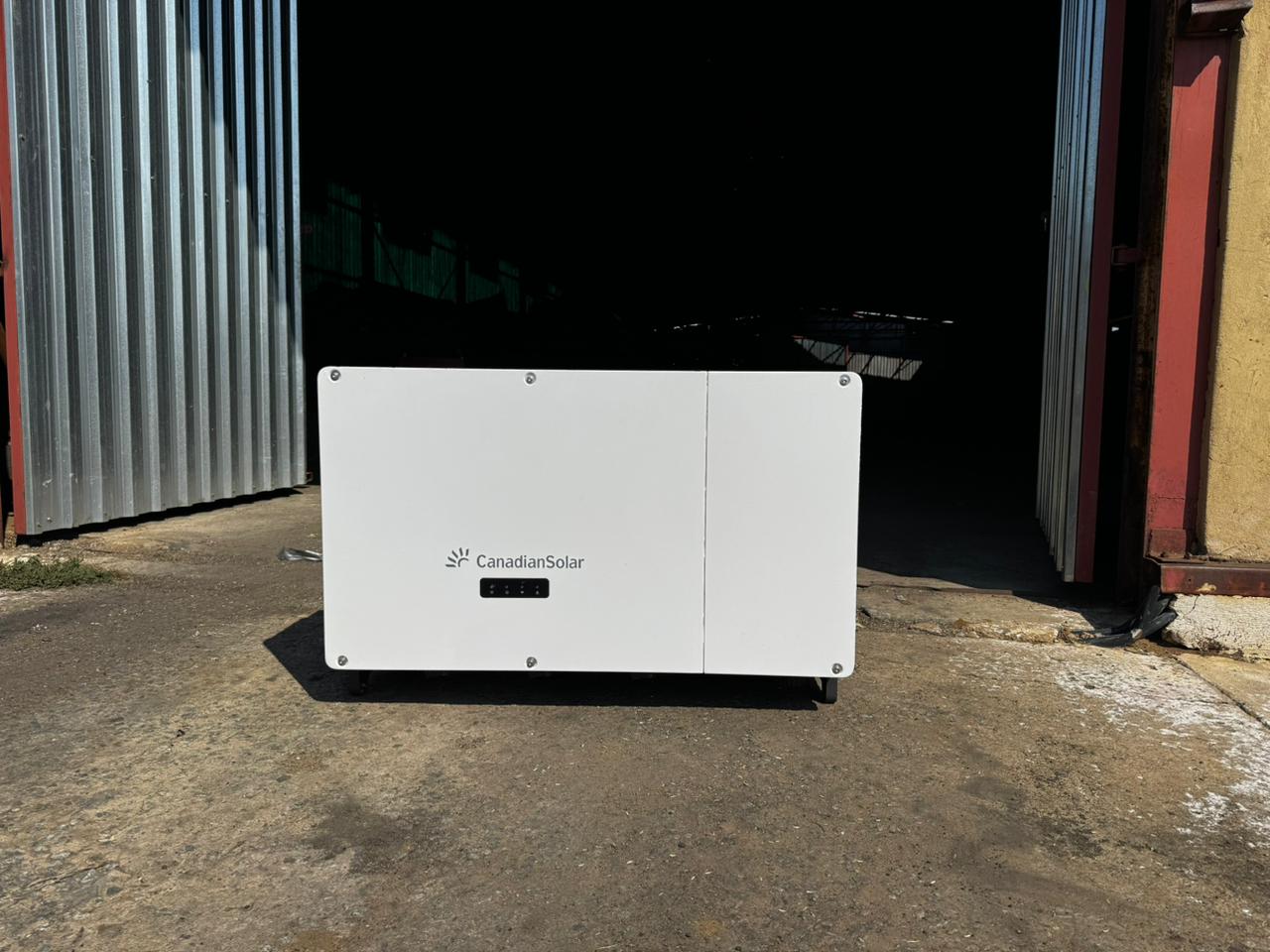

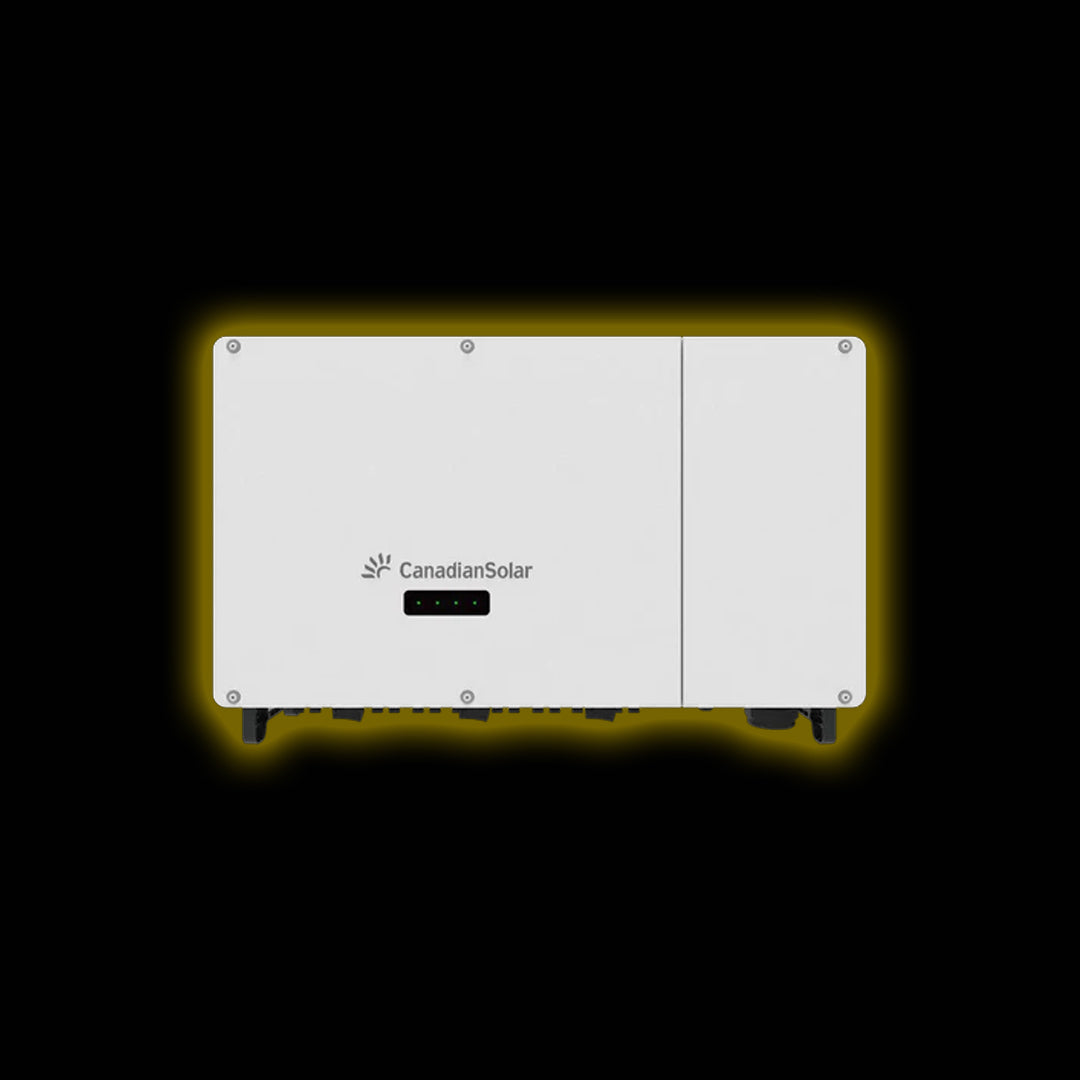

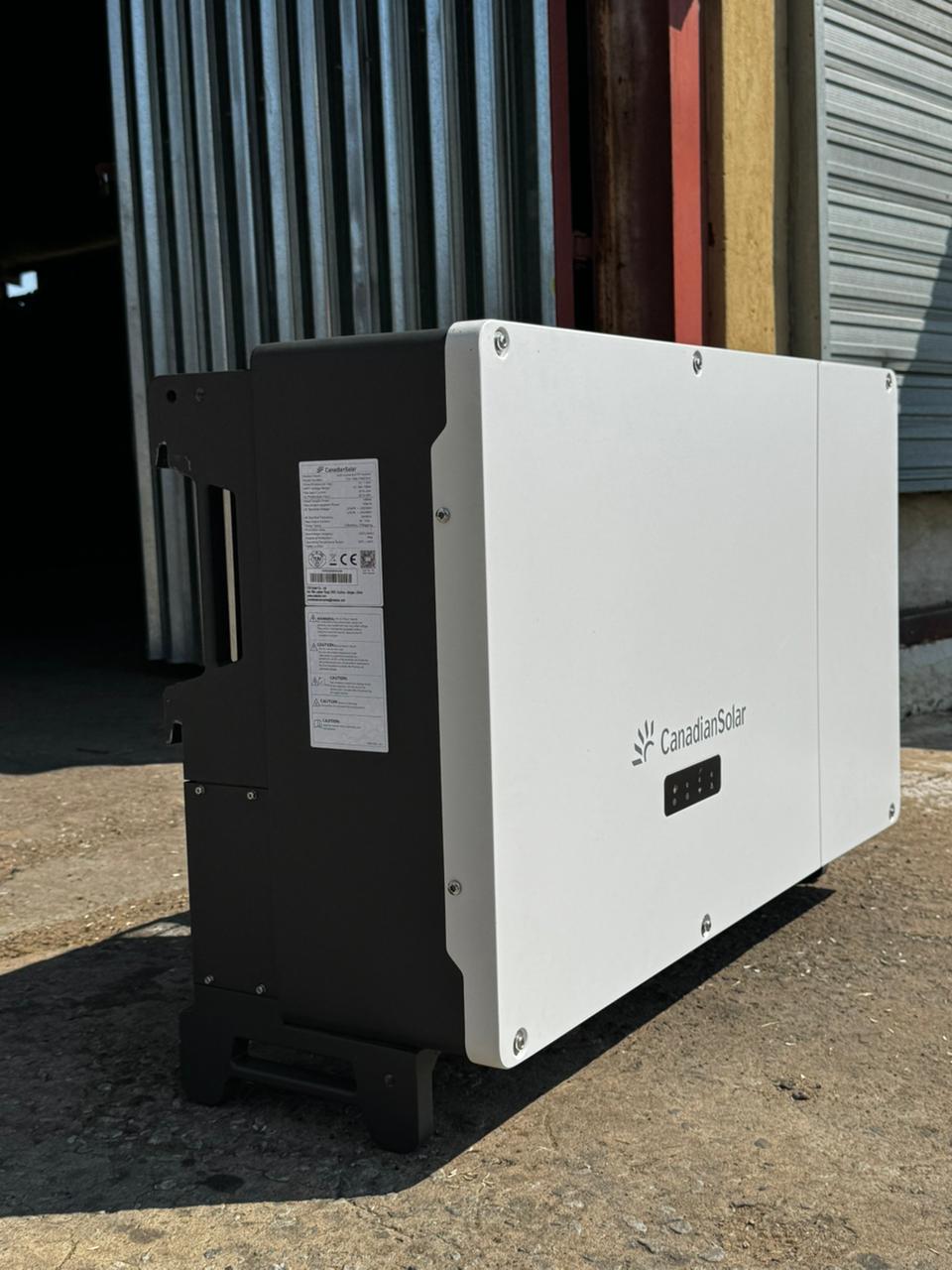

Canadian Solar Inverter 100kW 3 Phase - Pre Owned

The Canadian Solar 100kW Three Phase String Inverter is a high efficiency, grid tied inverter purpose built for commercial and industrial (C&I) solar PV systems. Designed for reliability, scalability, and maximum energy yield, it is ideal for large rooftop, carport, and ground mounted solar installations.

Manufactured by CSI Solar Co., Ltd., a global leader in photovoltaic technology, this inverter delivers excellent performance in harsh environments while meeting international grid and safety standards.

Key Features and Benefits

High Efficiency & Performance

• Rated AC output power: 100 kW
• Maximum efficiency up to 98.5%
• Advanced MPPT technology for optimal energy harvest across varying irradiance conditions

Multiple MPPT Options

• Available with 6 MPPTs or 9 MPPTs (model dependent)
• High DC input current capability, supporting modern high power PV modules
• Wide MPPT voltage range for greater system design flexibility

Robust and Reliable Design

• IP66 protection rating for outdoor installation
• Intelligent fan cooling system for long term durability
• Operating temperature range from -30°C to +60°C
• Designed for installations up to 4000 m altitude

Integrated Safety & Protection

• Built in DC switch
• DC reverse polarity protection
• Residual current monitoring
• Anti islanding protection
• Integrated DC and AC surge protection devices (SPD Type II)
• Optional anti PID function to extend module lifespan

Smart Monitoring & Communication

• Smart string monitoring for improved system diagnostics
• LED status indicators
• RS485 communication as standard
• Optional WiFi connectivity for remote monitoring via app or portal

Grid Compatibility

• Three phase grid connection (380 / 400 VAC)
• Active and reactive power control
• Supports zero export applications
• Fully compliant with international grid standards

Technical Overview (100kW Variant)

• DC Max Voltage: up to 1100 V
• Rated AC Power: 100 kW / 100 kVA
• Grid Frequency: 50 / 60 Hz
• Power Factor: adjustable from 0.8 leading to 0.8 lagging
• Total Harmonic Distortion (THDi): < 3%
• Cooling: Intelligent fan cooling
• Weight: approximately 90–95 kg depending on configuration

Ideal Applications

• Commercial rooftop solar systems
• Industrial solar installations
• Warehouses, factories, and logistics centers
• Ground mounted solar plants
• Large scale net metered or zero export PV systems

Why Choose the Canadian Solar 100kW Inverter

• Proven global brand with decades of PV expertise
• Excellent balance of performance, reliability, and cost
• Designed for modern high power PV modules
• Easy integration into existing and new solar projects
• Strong after sales support and global service network
