Clip-Lock Rail-less Structure – Portrait, Landscape Solar Mounting

The Clip-Lock Rail-less Bracket (CL78 Series) is a high-performance, non-penetrating solar mounting solution designed for clip-lock metal roofs. Engineered for both portrait and landscape PV module orientations, this system eliminates the need for traditional rails, reducing installation time, cost, and complexity.

Key Features:

• Dual Orientation Support
  • Landscape (CL78-PCSLOT) – 78mm bracket for horizontal panel mounting

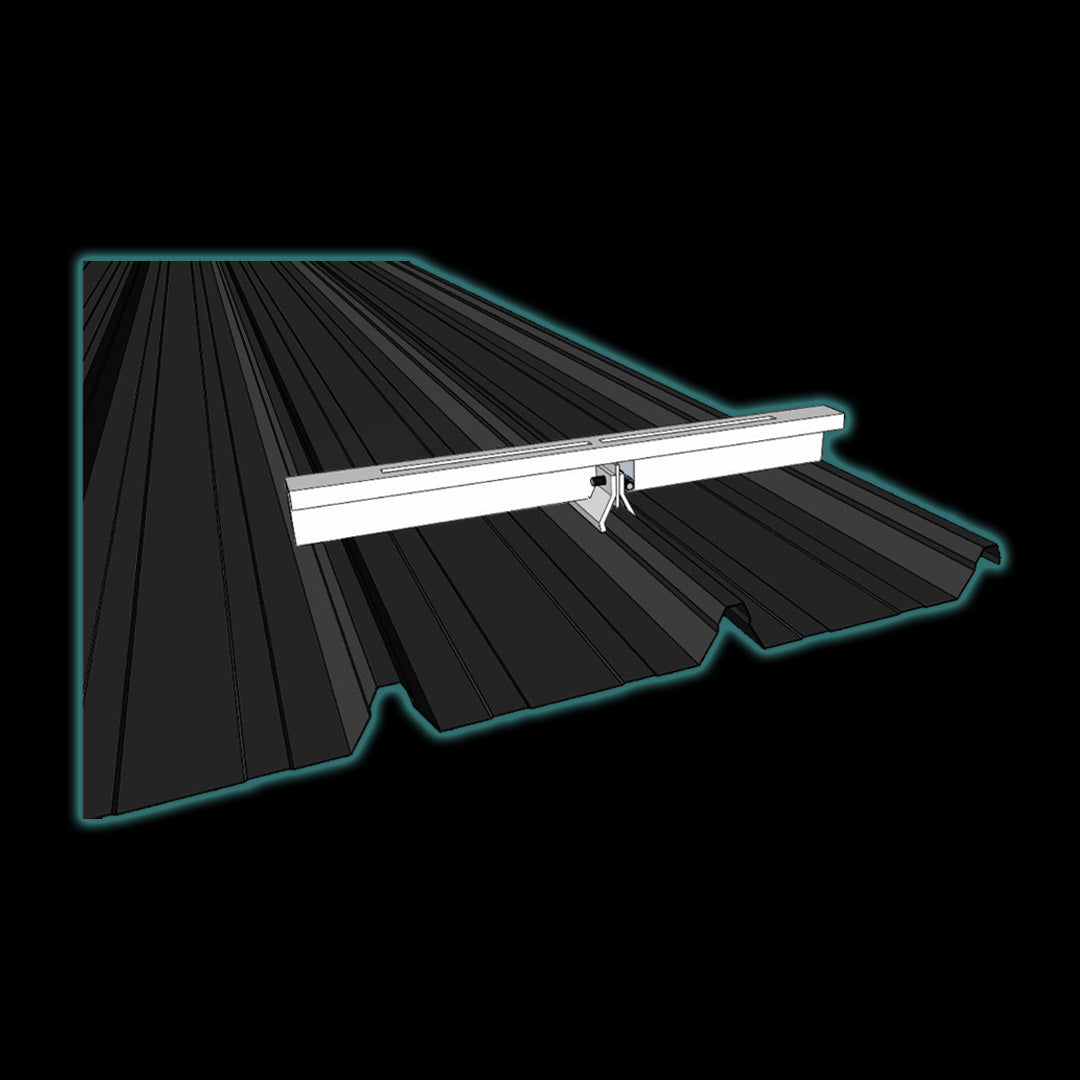

  • Portrait (CL78-PCSLOT-500NRP) – 500mm bracket for vertical panel mounting
• Rail-less Design – Mounts directly to clip-lock sheeting without rails
• Non-Penetrating – Preserves roof integrity with secure clamping under the clip-lock mushroom head
• Durable Aluminium Build
  • 3mm top plate and 4.5mm feet (portrait)
  • 3mm and 4.5mm aluminium (landscape)
• Universal PV Compatibility – Supports 30–40mm thick aluminium-framed solar panels of any size
• Quick Installation – Requires only a 13mm spanner and 6mm Allen key
• 10-Year Product Guarantee – Built to last with confidence

Included:

• Portrait: CL78-SLOT with PC500 and 2 x M8x25 bolts
• Landscape: CL78-PCSLOT bracket
• Installation guides for both orientations

Additional Items Required:

• Middle Clamps
• End Clamps

Installation Overview:

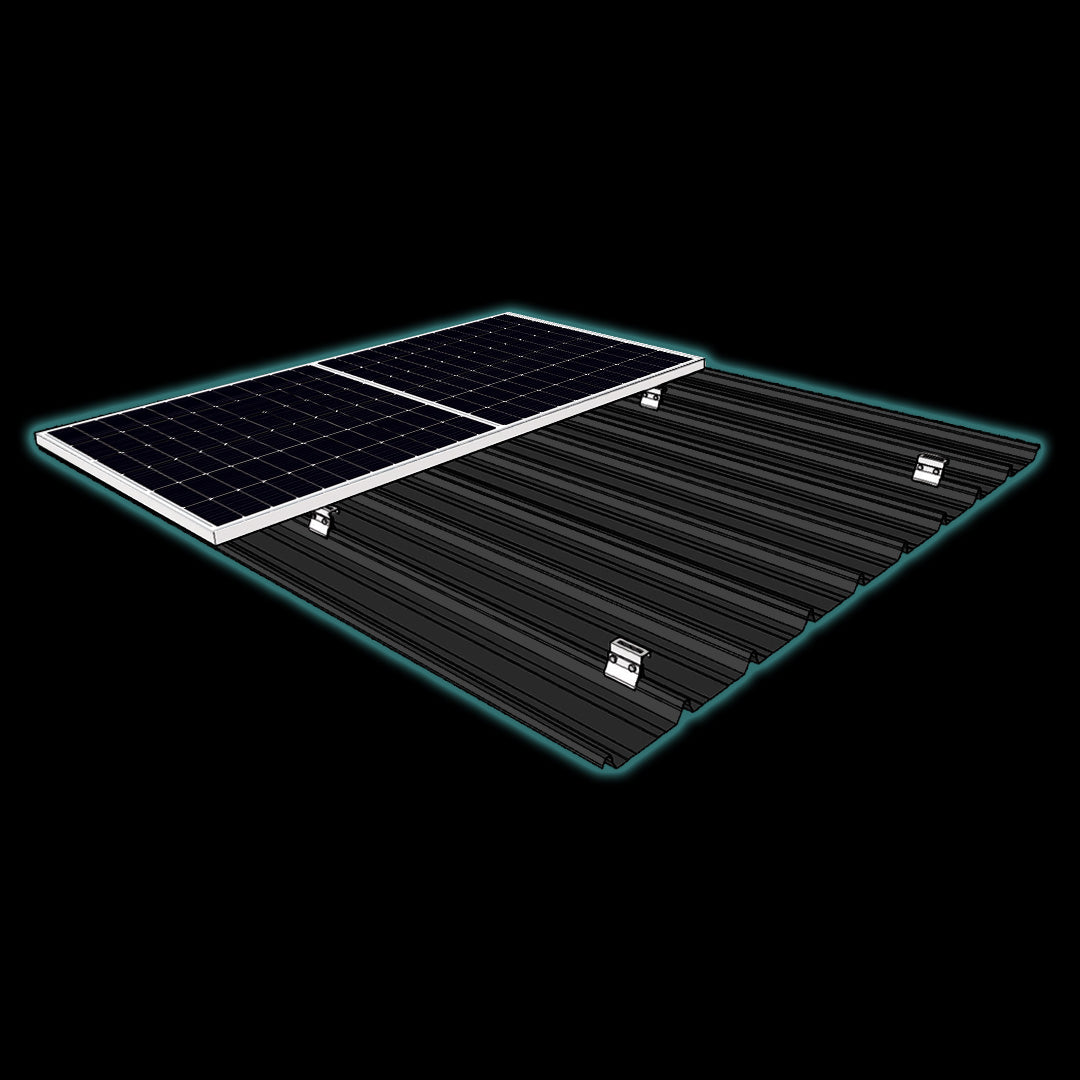

• Landscape: Brackets are spaced to align with the panel’s clamping zones. The panel rests directly on the bracket, and clamps are inserted into the bracket slot.

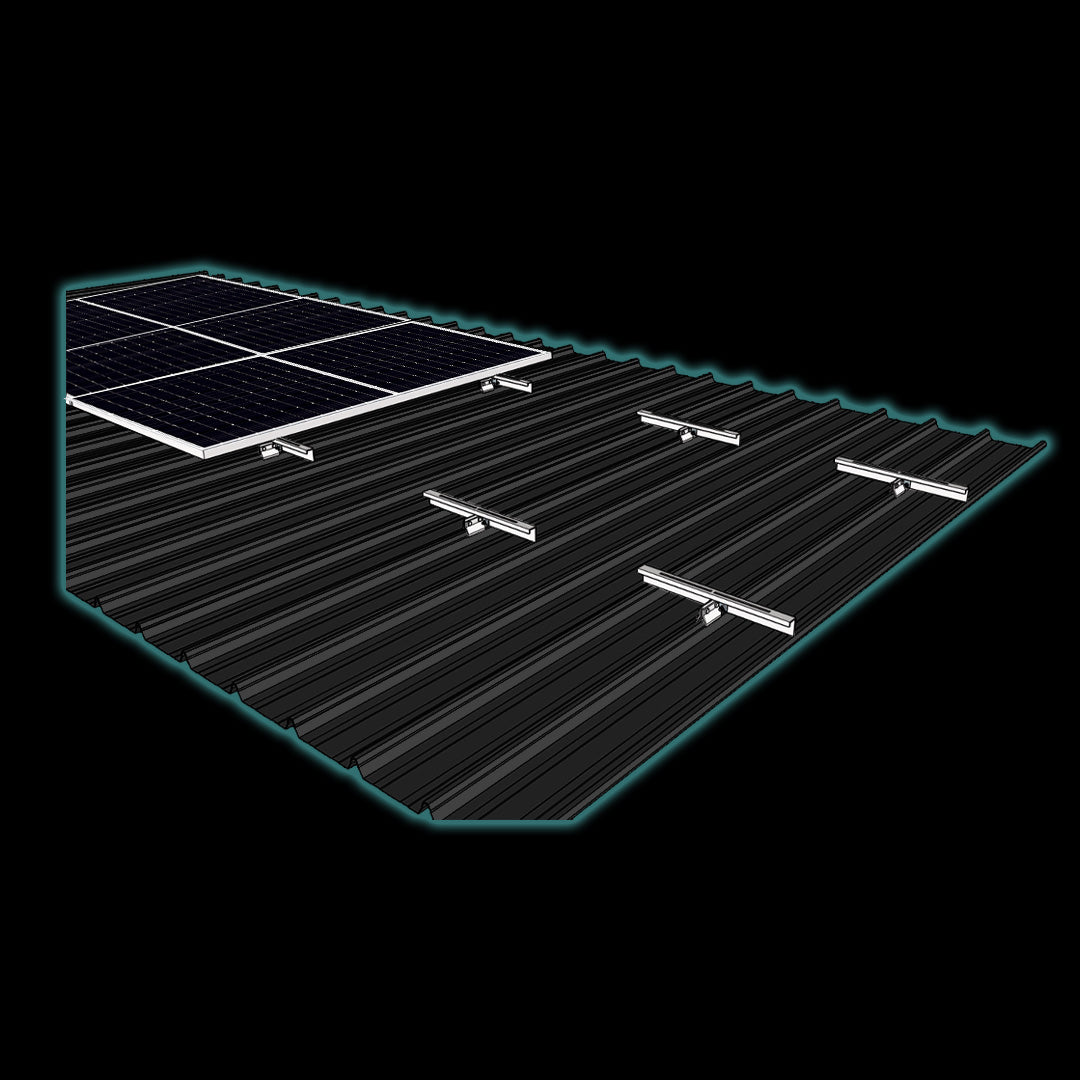

• Portrait: The longer bracket supports vertical panel orientation. Middle and end clamps clip into the bracket slot and are tightened to 8Nm for secure fastening.

This product is ideal for commercial and residential solar projects, offering a streamlined, cost-effective, and roof-friendly solution for PV installations.
