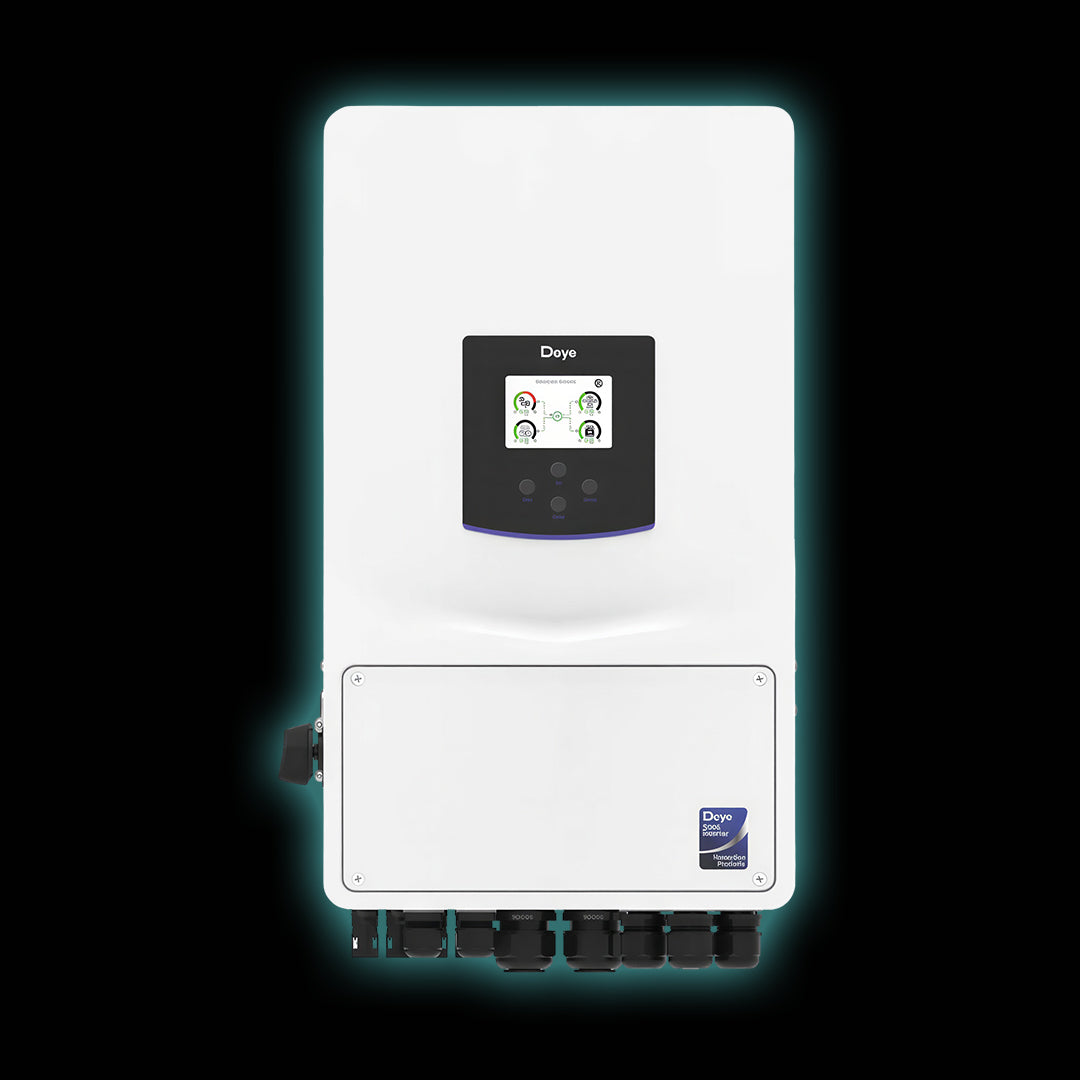

Deye 10kW Single Phase Hybrid Inverter SUN-10K-SG06LP1-EU-CM3

The Deye 10kW Single Phase Hybrid Inverter SUN-10K-SG06LP1-EU-CM3 is a high-performance energy management solution designed for residential, commercial, and light industrial solar applications. Engineered to maximise solar self-consumption while providing seamless backup power, this advanced hybrid inverter intelligently manages energy from solar panels, batteries, the utility grid, and generators to ensure reliable and efficient power delivery throughout the day.

With a rated AC output of 10,000W, this inverter is ideal for larger homes and businesses seeking energy independence, reduced electricity costs, and uninterrupted power during load shedding or grid outages. Its intelligent hybrid design allows users to store excess solar energy in batteries for use during peak demand periods or when grid power is unavailable.

The SUN-10K-SG06LP1-EU-CM3 supports low-voltage 48V lithium and lead-acid battery systems, making it compatible with a wide range of energy storage solutions. Advanced battery management communication through CAN Bus and RS485 ensures optimal battery performance and longevity.

Designed for durability and flexibility, the inverter features an IP65-rated enclosure suitable for indoor and outdoor installations. Integrated WiFi monitoring capability allows users to track energy production, battery performance, grid consumption, and system status remotely through a smart device.

Key Features

• 10kW single-phase hybrid solar inverter
• Compatible with 48V lithium-ion and lead-acid battery systems
• Seamless transition between solar, battery, grid and generator power
• Intelligent energy management system
• Supports self-consumption and backup power applications
• High charging and discharging capability
• IP65-rated weather-resistant design
• Remote monitoring and management via WiFi
• Parallel operation support for system expansion
• Generator integration for enhanced backup capability
• Suitable for residential and commercial installations
• Advanced battery communication via CAN Bus and RS485

Technical Specifications

Inverter Specifications

• Model: SUN-10K-SG06LP1-EU-CM3
• Rated AC Output Power: 10,000W
• Maximum AC Output Power: 11,000W
• Battery Voltage Range: 40V – 60V
• Nominal Battery Voltage: 48V
• Maximum Charging Current: 220A
• Maximum Discharging Current: 220A
• Maximum PV Input Power: 13,000W
• Maximum PV Input Voltage: 500V
• MPPT Voltage Range: 150V – 425V
• Number of MPPT Trackers: 2
• Number of Strings per MPPT: 2 + 2
• Protection Rating: IP65
• Cooling Method: Intelligent Air Cooling
• Communication: CAN, RS485, WiFi
• Parallel Operation Supported

Benefits

The Deye 10kW Hybrid Inverter helps homeowners and businesses reduce reliance on the utility grid while maximising the use of solar energy. Its intelligent energy prioritisation enables efficient battery charging during the day and dependable power delivery during outages, helping to lower electricity bills and improve energy security.

Whether installed as part of a new solar system or integrated into an existing energy storage setup, the SUN-10K-SG06LP1-EU-CM3 delivers reliable performance, advanced monitoring capabilities, and future-ready expansion options.

Applications

• Residential solar systems
• Load shedding and backup power solutions
• Small business energy systems
• Commercial solar installations
• Off-grid and hybrid solar projects
• Agricultural and farming operations
• Energy storage integration projects
