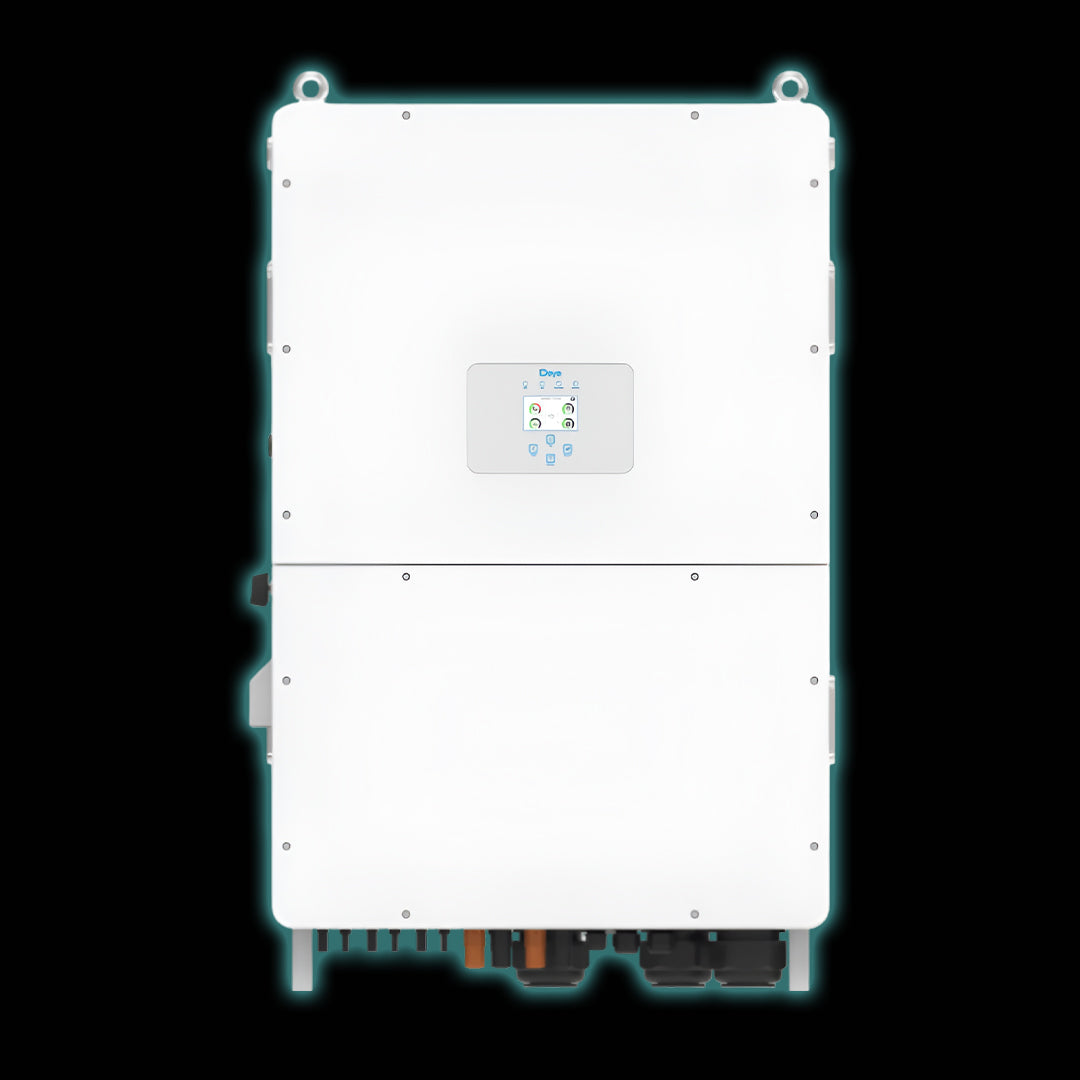

Deye 125kW Hybrid Inverter High Voltage

Commercial-Grade Energy Storage and Solar Power Management

The Deye 125kW Hybrid Inverter High Voltage (SUN-125K-SG02HP3-EU-GM10) is a powerful three-phase energy storage inverter engineered for large commercial, industrial, agricultural, and utility-scale solar installations. Designed to seamlessly integrate solar PV, high-voltage lithium batteries, grid power, and diesel generators, this advanced hybrid inverter maximizes energy efficiency, reduces operating costs, and enhances energy independence.

With a rated output of 125kW, support for high-voltage battery systems from 160V to 1000V, and compatibility with large-scale solar arrays up to 250kW PV input, the Deye 125kW Hybrid Inverter delivers exceptional performance for demanding energy applications.

Key Features

• 125kW three-phase hybrid inverter with grid-tied and off-grid capability
• Compatible with high-voltage lithium-ion battery systems (160V to 1000V)
• Supports up to 250kW PV array access power
• Maximum PV input voltage of 1000V
• 10 MPPT trackers for superior solar harvesting and design flexibility
• Up to 200A battery charge and discharge current
• Supports AC coupling for retrofitting existing solar systems
• Parallel operation of up to 10 inverters for larger installations
• 100% unbalanced three-phase output for enhanced load management
• Diesel generator integration for reliable backup power
• Six programmable battery charging and discharging periods
• Intelligent battery management with automatic BMS communication
• IP65-rated enclosure for indoor and outdoor installations
• Smart cooling system for reliable operation in harsh environments
• Remote monitoring via WiFi, LAN, Bluetooth, GPRS, or 4G (optional)

Technical Specifications

• Model: SUN-125K-SG02HP3-EU-GM10
• Rated AC Output Power: 125kW
• Maximum PV Input Power: 200kW
• Maximum PV Access Power: 250kW
• Maximum PV Input Voltage: 1000V
• MPPT Voltage Range: 150V – 850V
• Battery Voltage Range: 160V – 1000V
• Battery Type: Lithium-Ion
• Max Charge Current: 200A
• Max Discharge Current: 200A
• Number of MPPTs: 10
• Maximum Efficiency: 98.7%
• European Efficiency: 98.1%
• Protection Rating: IP65
• Cooling: Smart Cooling
• Grid Connection: Three Phase (3L+N+PE)
• Operating Temperature: -40°C to +60°C

Ideal Applications

The Deye 125kW Hybrid Inverter is suitable for:

• Commercial solar energy systems
• Industrial manufacturing facilities
• Shopping centres and retail complexes
• Warehouses and logistics centres
• Agricultural and farming operations
• Hotels and hospitality facilities
• Educational institutions
• Healthcare facilities
• Utility-scale energy storage projects
• Microgrid and backup power applications

Why Choose the Deye 125kW Hybrid Inverter?

The Deye 125kW High Voltage Hybrid Inverter combines advanced energy storage management, industry-leading efficiency, and exceptional scalability into one robust solution. Whether your goal is maximizing solar self-consumption, reducing peak demand charges, improving backup power resilience, or building a large-scale energy storage system, this inverter provides the flexibility and reliability required for modern commercial energy projects.
