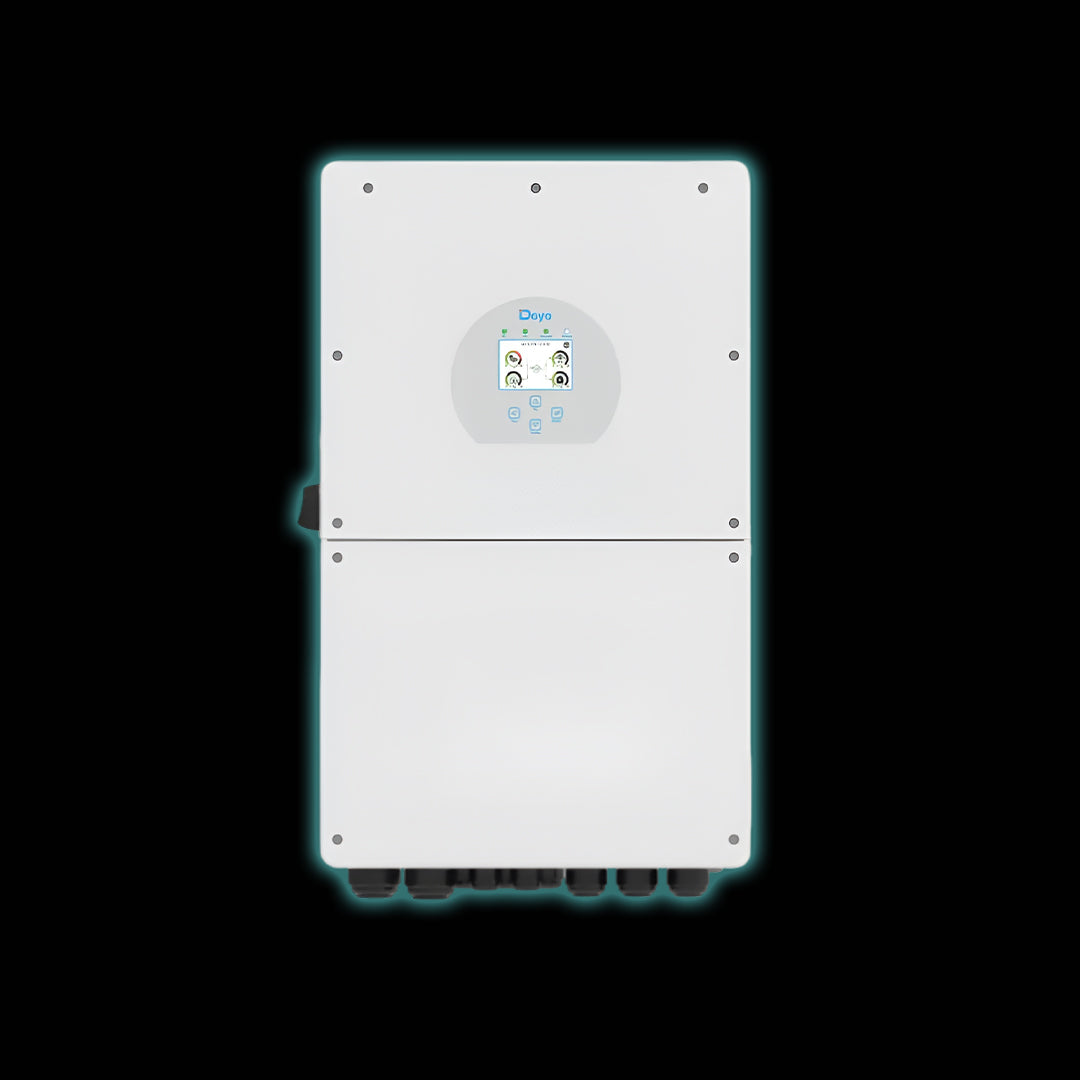

Deye 12kW Single Phase Low Voltage Hybrid Inverter - 1st Generation

The Deye 12kW Single Phase Low Voltage Hybrid Inverter is a premium energy management solution designed for residential, commercial, and backup power applications. Combining solar generation, battery storage, utility grid connectivity, and generator support into a single intelligent platform, this inverter helps maximise self-consumption, reduce electricity costs, and provide uninterrupted power during outages.

Supporting low-voltage 48V lithium-ion and lead-acid battery systems, the Deye SUN-12K-SG02LP1-EU-AM3 delivers exceptional flexibility for both new installations and retrofit projects. With an impressive 18,000W maximum PV input capacity, dual MPPT technology, and up to 97.6% efficiency, it ensures optimal solar energy harvest and system performance.

Key Features

• 12kW single-phase hybrid solar inverter
• Compatible with 48V lithium-ion and lead-acid batteries
• Maximum PV input power of 18,000W
• Dual MPPT trackers for improved solar production
• Up to 250A battery charging and discharging current
• Supports on-grid, off-grid, and backup power operation
• Generator integration for enhanced energy security
• AC coupling support for upgrading existing solar systems
• Parallel operation of up to 16 units for larger installations
• Six programmable charging and discharging schedules
• Colour touchscreen LCD display
• IP65-rated weather-resistant enclosure
• Advanced monitoring via WiFi, LAN, Bluetooth, 4G and RS485 options
• Comprehensive protection against overload, short circuits, surges, and grid faults=

Technical Specifications

• Model: SUN-12K-SG02LP1-EU-AM3
• Rated Output Power: 12,000W
• Maximum PV Input Power: 18,000W
• Maximum PV Input Voltage: 500V
• MPPT Voltage Range: 150V - 425V
• Battery Voltage Range: 40V - 60V
• Maximum Charge Current: 250A
• Maximum Discharge Current: 250A
• Maximum Efficiency: 97.6%
• Grid Voltage: 220V / 230V Single Phase
• Protection Rating: IP65
• Cooling System: Intelligent Air Cooling
• Operating Temperature: -40°C to +60°C
• Dimensions (W × H × D): 420 × 670 × 233 mm
• Weight: 35.6 kg

Applications

The Deye 12kW Hybrid Inverter is ideal for homes, offices, farms, retail stores, workshops, and small commercial facilities requiring reliable solar energy generation, energy storage, and backup power. Its scalable architecture allows it to grow with future energy demands.

Why Choose the Deye 12kW Hybrid Inverter?

The Deye SUN-12K-SG02LP1-EU-AM3 combines industry-leading efficiency, advanced battery management, seamless backup functionality, and robust protection features in a single inverter. Whether you are building a new solar installation or upgrading an existing system, it delivers dependable performance, lower energy costs, and greater energy independence.
