Deye 12kW Three Phase Low Voltage Hybrid Inverter - 1st Generation
Deye 12kW Three Phase Low Voltage Hybrid Inverter - 1st Generation
Couldn't load pickup availability
CONTACT US FOR RESELLER PRICING

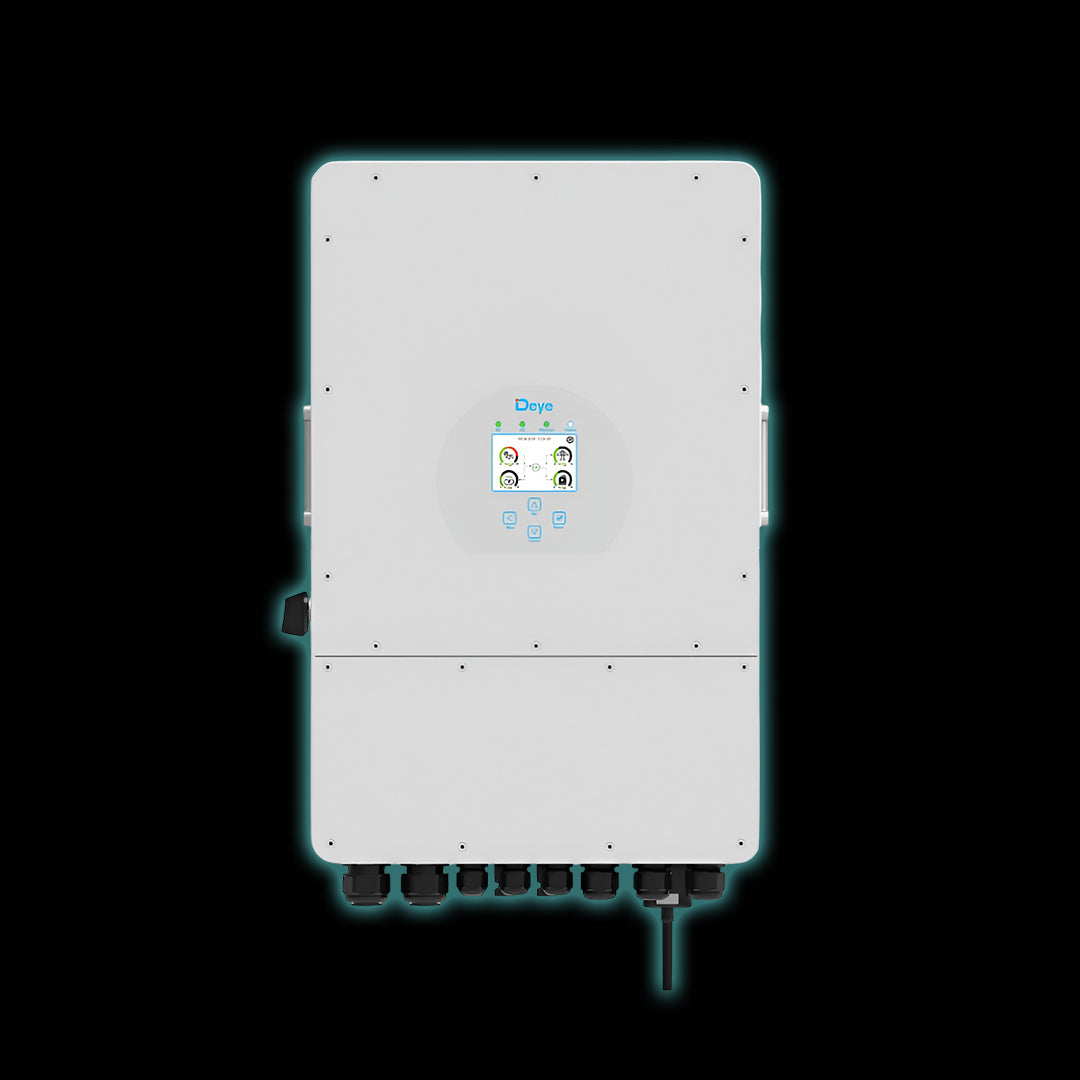

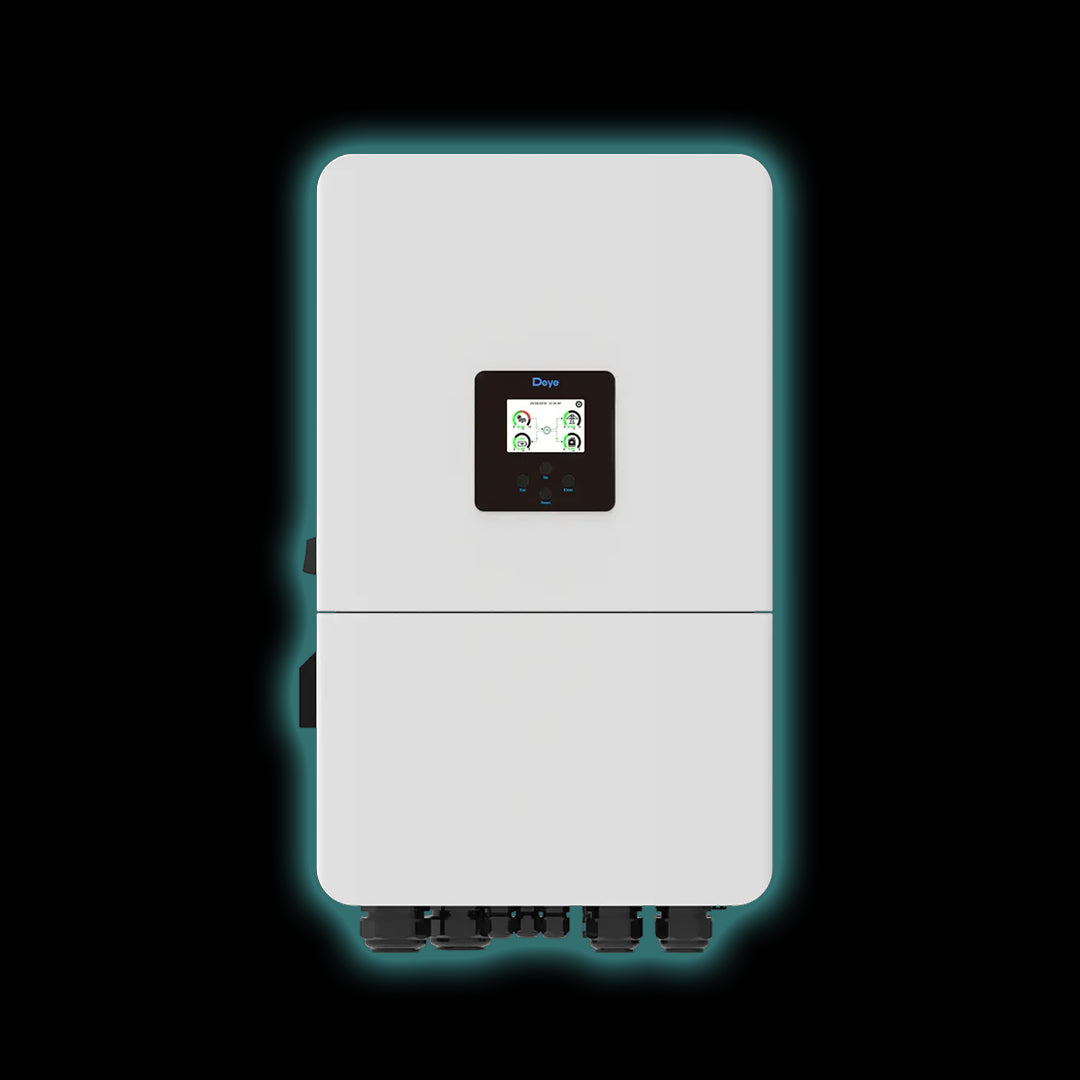

The Deye 12kW Three Phase Low Voltage Hybrid Inverter (SUN-12K-SG04LP3-EU) is a powerful and intelligent energy storage solution designed for residential, commercial, and light industrial solar installations. Engineered to seamlessly integrate solar panels, battery storage, the utility grid, and generator backup power, this advanced hybrid inverter maximizes energy efficiency while providing reliable power security.
Supporting both 48V lithium-ion and lead-acid batteries, the Deye 12kW Hybrid Inverter offers exceptional flexibility for modern solar energy systems. Its advanced energy management features enable users to reduce electricity costs, increase self-consumption of solar energy, and maintain power during grid outages.
Key Features
- 12kW three-phase hybrid solar inverter
- Compatible with 48V lithium-ion and lead-acid battery systems
- Maximum charging and discharging current of 240A
- Supports both on-grid and off-grid operation
- Up to 10 units can be connected in parallel
- 100% unbalanced output across all three phases
- AC coupling support for retrofitting existing solar installations
- Compatible with diesel generator backup systems
- Dual MPPT tracking for enhanced solar energy harvest
- Six programmable battery charging and discharging time periods
- Intelligent Battery Management System (BMS) communication via CAN and RS485
- IP65-rated enclosure suitable for indoor and outdoor installation
- Smart cooling system with low operating noise
- Advanced safety and grid protection features
Technical Specifications
- Model: SUN-12K-SG04LP3-EU
- Rated AC Output Power: 12,000W
- Maximum AC Output Power: 13,200W
- Battery Voltage Range: 40V-60V
- Battery Compatibility: Lithium-ion and Lead-acid
- Maximum Charging Current: 240A
- Maximum Discharging Current: 240A
- Maximum PV Input Power: 15,600W
- Rated PV Input Voltage: 550V
- MPPT Voltage Range: 200V-650V
- Maximum Efficiency: 97.6%
- MPPT Efficiency: 99.9%
- Operating Temperature: -40°C to +60°C
- Protection Rating: IP65
- Dimensions (W × H × D): 422 × 702 × 281 mm
- Weight: 33.6 kg
- Communication Ports: RS485, CAN
- Installation Type: Wall Mounted
Ideal Applications
The Deye 12kW Three Phase Low Voltage Hybrid Inverter is ideal for:
- Residential solar and battery backup systems
- Commercial and office solar installations
- Farms and agricultural operations
- Load-shedding backup power solutions
- Off-grid energy systems
- Hybrid solar and battery storage projects
- Energy management applications requiring three-phase power
Why Choose the Deye 12kW Hybrid Inverter?
The Deye SUN-12K-SG04LP3-EU delivers industry-leading flexibility, high efficiency, and advanced battery integration. With support for grid-tied, off-grid, and generator-assisted operation, it provides a complete energy management solution for homes and businesses seeking energy independence and reliable backup power. Its robust IP65-rated design, high charging capacity, and scalable parallel operation make it one of the most versatile three-phase hybrid inverters available today
Specifications Document
-
