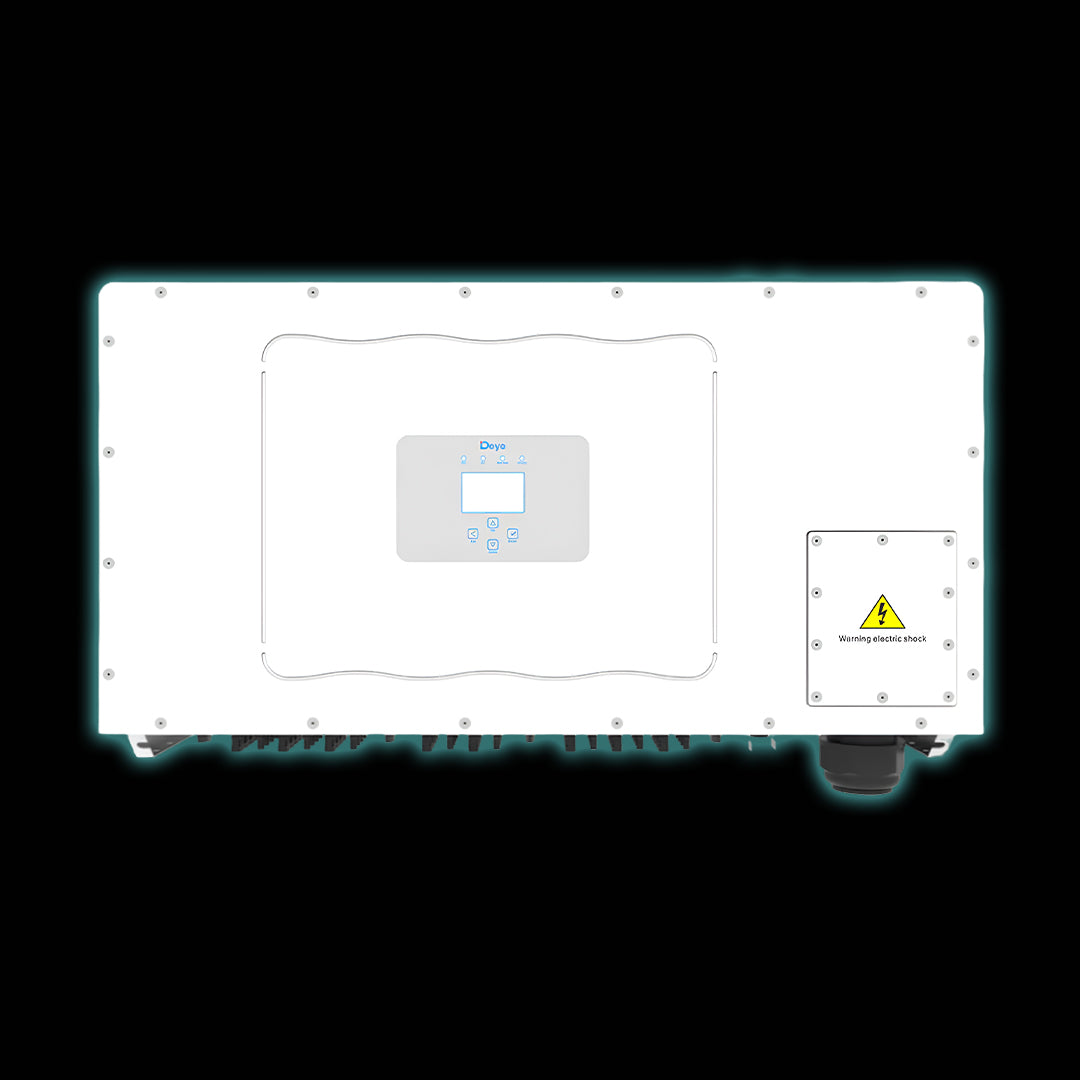

Deye 136kW Grid Tied Inverter Three Phase

The Deye SUN-136K-G01P3-EU-AM8 is a high-performance 136kW three-phase grid-tied string inverter designed for large-scale commercial, industrial, and utility solar installations. Engineered for maximum energy yield, reliability, and intelligent system management, this advanced inverter delivers up to 98.8% efficiency and features 8 independent MPPT trackers for superior energy harvesting across complex PV array layouts.

Built to support high-power solar applications, the Deye 136kW grid-tied inverter offers a maximum DC input voltage of 1100V and a wide MPPT voltage range of 200V to 1000V, ensuring optimal performance under varying environmental and operational conditions. The multi-MPPT design allows for improved energy production where arrays face different orientations or experience partial shading.

Designed for demanding environments, the inverter features an IP65-rated enclosure, intelligent air cooling, Type II DC and AC surge protection, anti-islanding protection, DC reverse polarity protection, short-circuit protection, thermal protection, and optional AFCI functionality for enhanced system safety.

The Deye SUN-136K-G01P3-EU-AM8 supports advanced smart grid functions, including zero-export capability, virtual synchronous generator (VSG) applications, and optional string-level intelligent monitoring. Multiple communication options, including RS485, RS232, WiFi, Bluetooth, GPRS, 4G, and LAN (optional), provide seamless integration into modern energy management systems.

Key Features

• 136kW rated AC output power
• Three-phase grid-connected operation
• Maximum efficiency up to 98.8%
• 8 MPPT trackers for maximum energy harvest
• Maximum DC input voltage: 1100V
• Wide MPPT operating range: 200V to 1000V
• IP65-rated weatherproof design
• Type II DC and AC surge protection
• Anti-islanding and residual current detection
• Intelligent air cooling system
• Optional AFCI protection
• Zero export functionality
• VSG (Virtual Synchronous Generator) support
• Optional intelligent string monitoring
• Multiple communication interfaces and monitoring options
• Designed for commercial, industrial, and utility-scale solar systems

Technical Specifications

• Model: SUN-136K-G01P3-EU-AM8
• Rated AC Output Power: 136kW
• Maximum AC Apparent Power: 136kVA
• Maximum PV Input Power: 204kW
• Maximum PV Input Voltage: 1100V
• Start-up Voltage: 250V
• Rated PV Input Voltage: 600V
• MPPT Voltage Range: 200V to 1000V
• Number of MPPT Trackers: 8
• Maximum Efficiency: 98.8%
• Euro Efficiency: 98.2%
• Protection Rating: IP65
• Cooling Method: Intelligent Air Cooling
• Operating Temperature: -25°C to +60°C
• Weight: 103kg
• Dimensions: 1006 × 516 × 325.5 mm
• Warranty: 5 Years

Applications

Ideal for commercial rooftop solar systems, industrial facilities, agricultural installations, warehouses, manufacturing plants, shopping centres, schools, hospitals, and utility-scale solar projects requiring reliable and efficient three-phase grid-connected power conversion.
