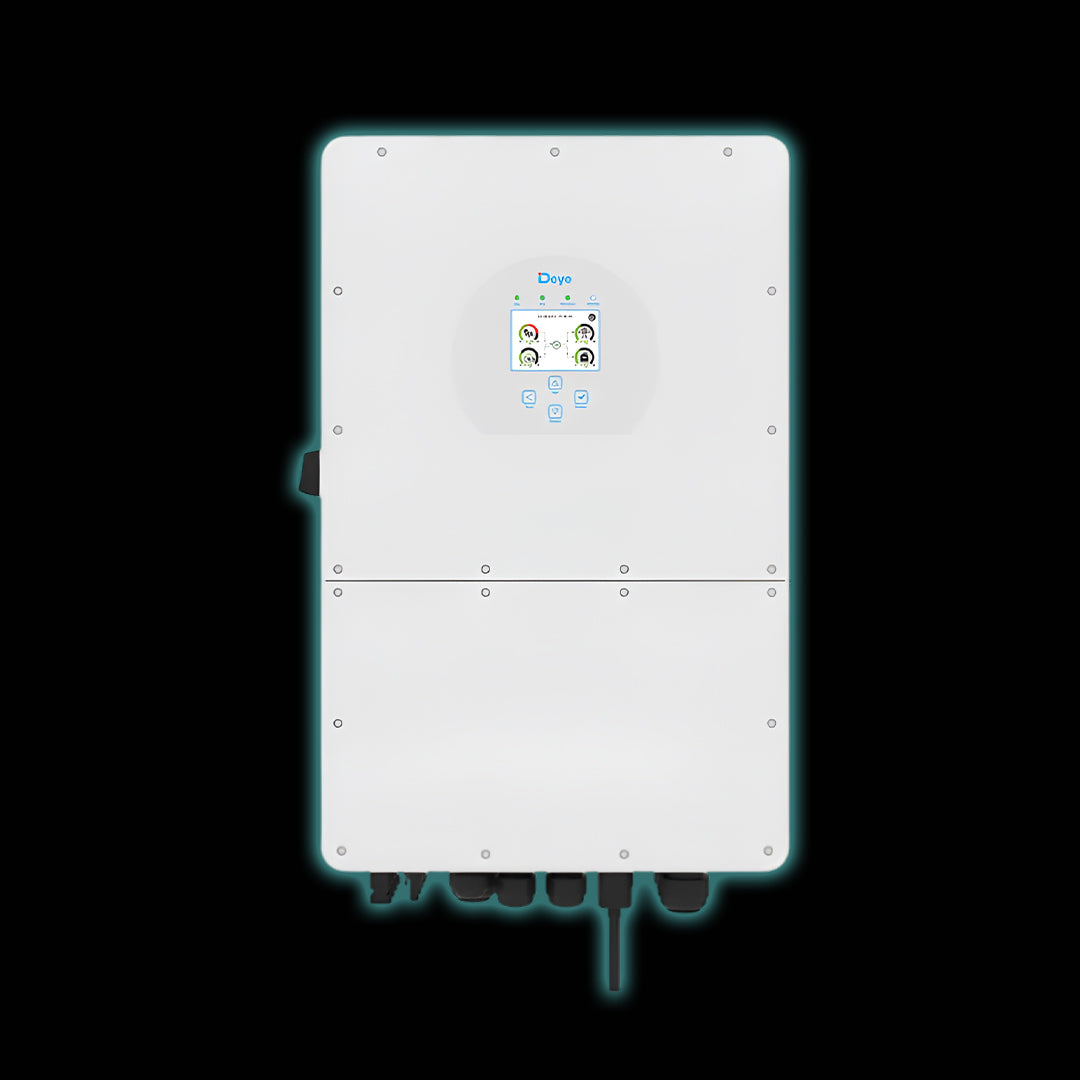

Deye 15kW Three Phase Low Voltage Hybrid Inverter - 1st Generation

The Deye 15kW Three Phase Low Voltage Hybrid Inverter is a high-performance energy management solution designed for residential, commercial, agricultural, and industrial solar systems. Combining advanced hybrid inverter technology with flexible battery storage integration, this inverter enables users to maximize solar energy utilization, reduce electricity costs, and maintain reliable backup power during grid outages.

Designed for both on-grid and off-grid applications, the Deye 15kW Hybrid Inverter seamlessly manages energy from solar panels, batteries, the utility grid, and diesel generators. Its intelligent energy management system ensures optimal power distribution while supporting energy independence and long-term savings.

Key Features

• 15kW three-phase hybrid solar inverter
• Compatible with lithium-ion battery systems
• Supports both grid-tied and off-grid operation
• Up to 100% unbalanced three-phase output
• High efficiency of up to 97.6%
• Dual MPPT trackers for maximum solar energy harvesting
• Maximum PV input power of 24,000W
• Maximum PV input voltage of 1000V DC
• Battery voltage range of 160V to 700V
• Supports generator charging and backup integration
• AC coupling capability for retrofitting existing solar installations
• Up to 10 units can be connected in parallel
• Six programmable charging and discharging time periods
• IP65-rated enclosure suitable for indoor and outdoor installations
• Remote monitoring via WiFi, Bluetooth, GPRS, or 4G communication options

Technical Specifications

• Model: SUN-15K-SG01HP3-EU-AM2
• Rated Output Power: 15,000W
• Maximum AC Apparent Power: 16,500VA
• Battery Type: Lithium-Ion
• Battery Voltage Range: 160V – 700V
• Maximum Charging Current: 37A
• Maximum Discharging Current: 37A
• Maximum PV Input Power: 24,000W
• Maximum PV Input Voltage: 1000V DC
• MPPT Voltage Range: 150V – 850V
• Number of MPPTs: 2
• Maximum Efficiency: 97.6%
• Protection Rating: IP65
• Cooling System: Intelligent Air Cooling
• Operating Temperature: -40°C to +60°C
• Communication Interfaces: RS485, RS232, CAN
• Dimensions: 408 x 638 x 237 mm
• Weight: 30.5 kg

Ideal Applications

The Deye 15kW Three Phase Low Voltage Hybrid Inverter is ideal for:

• Residential solar and battery backup systems
• Commercial and office buildings
• Farms and agricultural operations
• Warehouses and factories
• Schools and educational facilities
• Retail and hospitality businesses
• Hybrid solar and energy storage projects

Why Choose the Deye 15kW Hybrid Inverter?

The Deye 15kW Three Phase Low Voltage Hybrid Inverter offers industry-leading flexibility, high efficiency, intelligent battery management, and scalable system design. Whether you're installing a new solar energy system or upgrading an existing one, this inverter provides reliable performance, seamless energy storage integration, and advanced power management for long-term energy savings.
