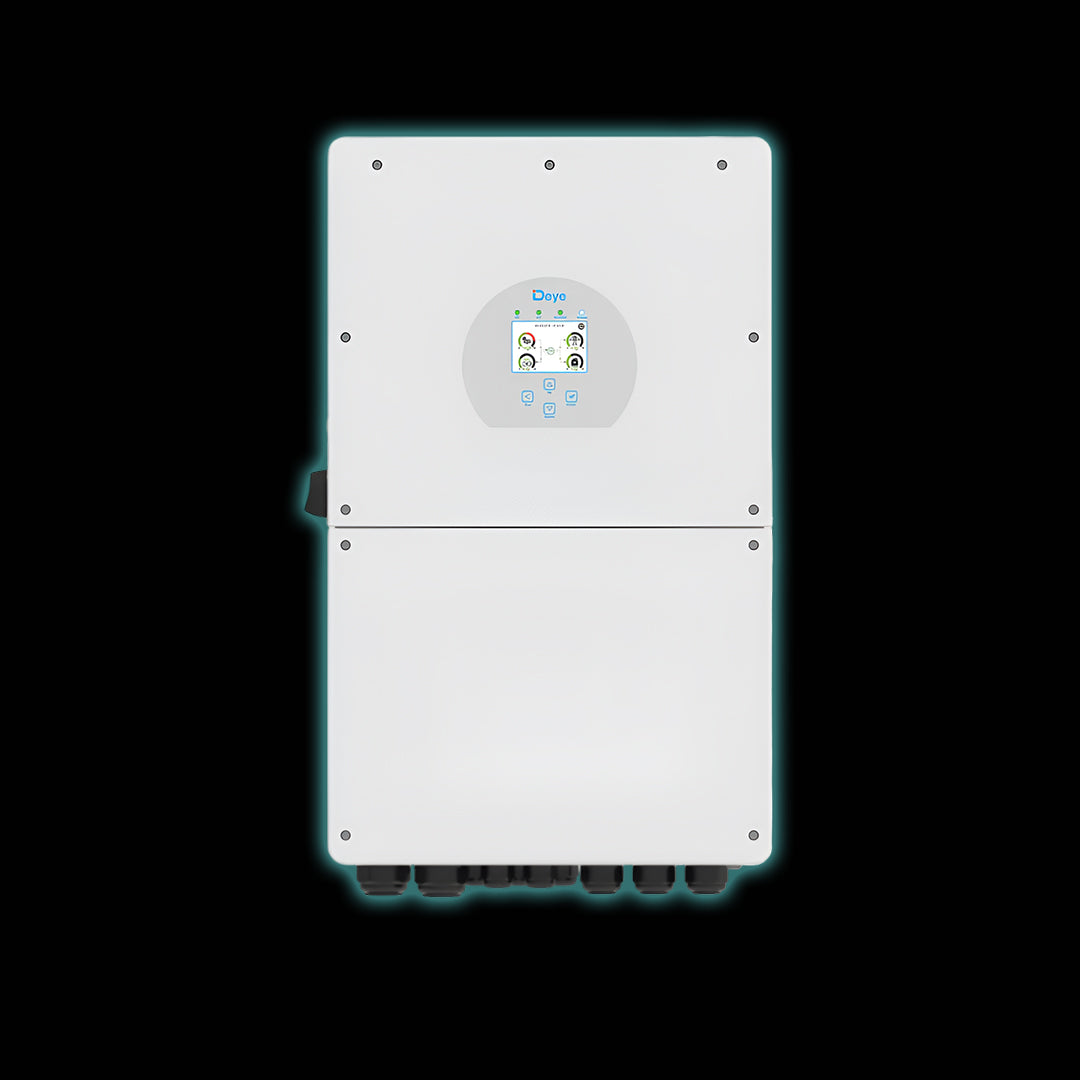

Deye 16kW Single Phase Low Voltage Hybrid Inverter - 1st Generation

The Deye 16kW Single Phase Low Voltage Hybrid Inverter is a powerful, high-efficiency energy management solution designed for residential, commercial, and backup power applications. Featuring advanced hybrid technology, this inverter intelligently manages solar power generation, battery storage, grid power, and generator input to maximize energy independence and reduce electricity costs.

Built for modern solar energy systems, the Deye SUN-16K-SG01LP1-EU supports low-voltage lithium-ion and lead-acid batteries, making it an ideal choice for homeowners and businesses seeking reliable energy storage and uninterrupted power supply during grid outages.

Key Features

• 16kW single-phase hybrid inverter
• Compatible with low-voltage (40V-60V) lithium-ion and lead-acid batteries
• Maximum battery charge and discharge current of 290A
• Supports up to 20.8kW of solar PV input power
• Dual battery inputs for increased storage flexibility
• AC coupling capability for retrofitting existing solar systems
• Supports diesel generator integration for enhanced backup power
• Up to 16 units can be connected in parallel for larger installations
• 6 programmable charging and discharging time periods
• Intelligent energy management for self-consumption optimization
• Colour touchscreen LCD display for easy monitoring and control
• IP65-rated enclosure suitable for indoor and outdoor installation
• Remote monitoring via WiFi, Bluetooth, LAN, GPRS, or 4G (optional)
• High conversion efficiency of up to 97.6%

Advanced Hybrid Energy Management

The Deye 16kW Hybrid Inverter seamlessly combines solar panels, battery storage, utility grid power, and generator input into a single intelligent system. During the day, excess solar energy can be stored in batteries for use at night or during load shedding, reducing dependence on the utility grid and lowering electricity expenses.

Its advanced battery management system works with compatible lithium batteries through CAN and RS485 communication, ensuring optimized charging, extended battery life, and maximum system performance.

Reliable Backup Power

Designed for regions experiencing unstable grid conditions and frequent power outages, the Deye SUN-16K-SG01LP1-EU delivers dependable backup power with off-grid functionality. The inverter can provide peak output power up to twice its rated capacity for short durations, enabling it to start demanding appliances and essential loads during outages.

Scalable Solar Storage Solution

Whether you're building a new solar energy system or upgrading an existing installation, the Deye 16kW Hybrid Inverter offers exceptional scalability. Parallel operation of up to 16 units allows system expansion for larger homes, farms, commercial buildings, offices, and industrial energy storage applications.

Technical Specifications

• Model: SUN-16K-SG01LP1-EU
• Rated Output Power: 16,000W
• Maximum PV Input Power: 20,800W
• Maximum PV Input Voltage: 500V
• MPPT Voltage Range: 150V – 425V
• Battery Voltage Range: 40V – 60V
• Maximum Charge Current: 290A
• Maximum Discharge Current: 290A
• Maximum Efficiency: 97.6%
• Protection Rating: IP65
• Communication Ports: RS485, RS232, CAN
• Monitoring Options: WiFi, Bluetooth, LAN, GPRS, 4G
• Dimensions (W × H × D): 464 × 763 × 282 mm
• Weight: 52kg
• Cooling Method: Intelligent Air Cooling

Ideal Applications

• Residential solar systems
• Load shedding and backup power solutions
• Energy storage systems (ESS)
• Off-grid and hybrid solar installations
• Small business and commercial power systems
• Solar retrofit projects
• Agricultural and farming operations

The Deye 16kW Single Phase Low Voltage Hybrid Inverter delivers exceptional performance, flexible battery compatibility, advanced monitoring capabilities, and reliable backup power, making it one of the leading hybrid inverter solutions for high-demand solar energy storage systems.
