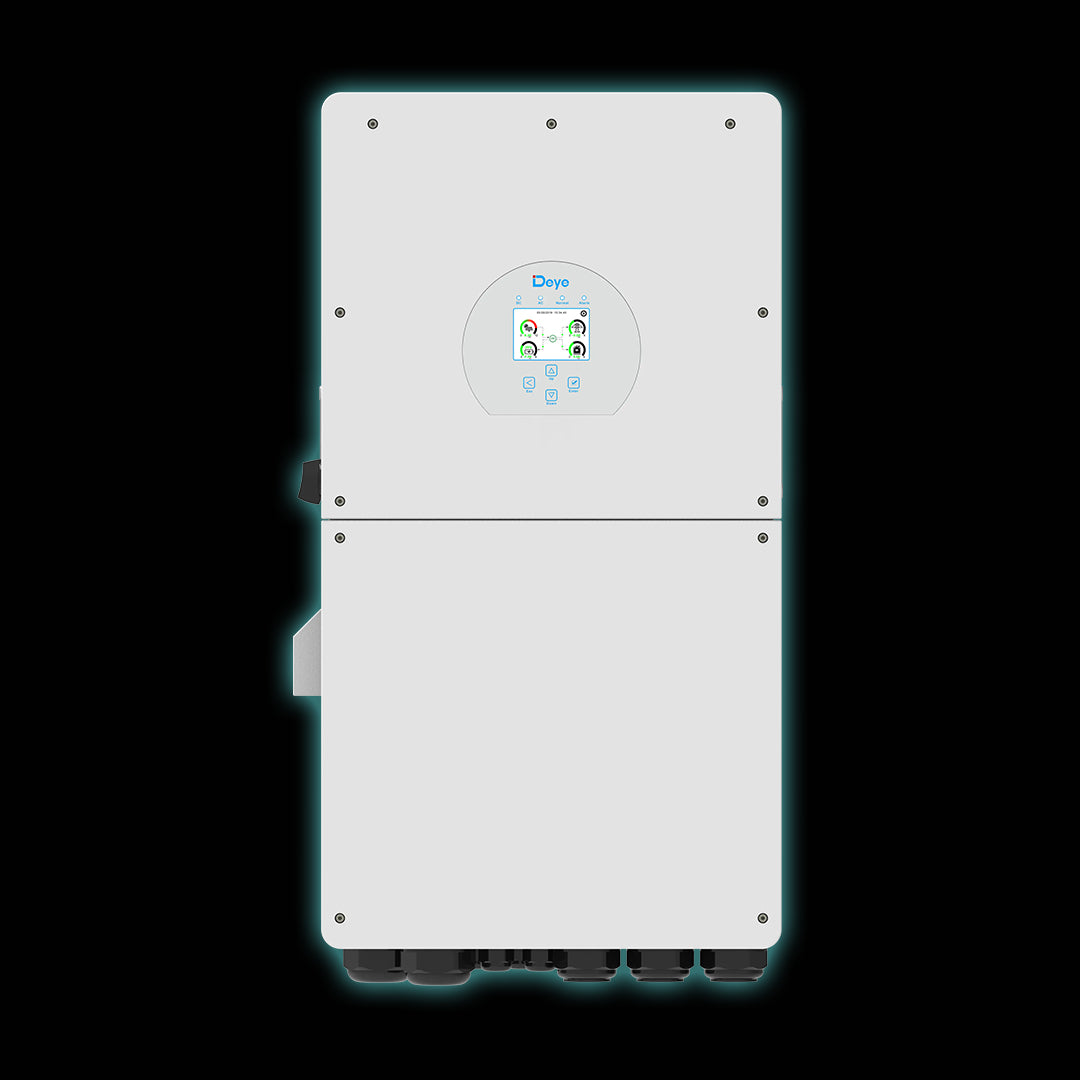

Deye 18kW Single Phase Hybrid Inverter SUN-18K-SG01LP1-EU-AM3-P

The Deye 18kW Single Phase Hybrid Inverter (SUN-18K-SG01LP1-EU-AM3-P) is a powerful, intelligent energy storage inverter designed for large residential, commercial, agricultural, and backup power applications. Combining advanced solar power conversion, battery storage integration, and grid-interactive functionality, this inverter enables maximum energy independence, reduced electricity costs, and reliable power during grid outages.

Engineered for high-performance solar systems, the Deye 18kW Hybrid Inverter supports up to 36,000W of PV input power, allowing oversized solar arrays to maximize energy production throughout the day. Featuring 3 independent MPPT trackers, it optimizes energy harvest from multiple roof orientations and varying sunlight conditions.

The inverter is compatible with both lithium-ion and lead-acid batteries and delivers an exceptional 350A maximum charge and discharge current, making it ideal for large-capacity energy storage systems. Intelligent battery management communicates directly with supported battery BMS systems for safe and efficient operation.

Designed for ultimate flexibility, the Deye 18kW supports on-grid, off-grid, and hybrid operation, while allowing up to 16 units to operate in parallel for larger installations. It also supports AC coupling, enabling existing solar systems to be upgraded with battery storage without replacing current solar inverters.

With a maximum efficiency of 97.6%, durable IP65 weatherproof protection, intelligent air cooling, and a responsive colour touchscreen LCD display, the inverter delivers reliable performance in demanding environments. Remote monitoring and system management are available through optional WiFi, Bluetooth, LAN, 4G, and GPRS communication modules.

Key Features

• 18kW Single Phase Hybrid Solar Inverter
• Supports Lithium-ion and Lead-acid Batteries
• 350A Maximum Battery Charging Current
• 350A Maximum Battery Discharging Current
• Up to 36kW Solar PV Input Capacity
• 3 MPPT Trackers for Enhanced Solar Yield
• Up to 16 Units in Parallel Operation
• On-Grid, Off-Grid and Backup Power Capability
• AC Coupling for Existing Solar Installations
• Generator Integration Support
• Six Programmable Battery Charge and Discharge Time Periods
• 97.6% Maximum Conversion Efficiency
• Colour Touchscreen LCD Display
• IP65 Weatherproof Rating
• WiFi, Bluetooth, LAN, 4G and GPRS Monitoring Options

Technical Specifications

• Model: SUN-18K-SG01LP1-EU-AM3-P
• Rated Output Power: 18,000W
• Maximum AC Output Power: 19,800W
• Maximum PV Input Power: 36,000W
• Maximum PV Input Voltage: 500V
• MPPT Voltage Range: 150V to 425V
• Battery Voltage Range: 40V to 60V
• Maximum Charging Current: 350A
• Maximum Discharging Current: 350A
• Number of MPPTs: 3
• Maximum Efficiency: 97.6%
• Protection Rating: IP65
• Cooling Method: Intelligent Air Cooling
• Communication Interfaces: RS485, RS232, CAN

Physical Dimensions

• Dimensions (W × H × D): 464 × 863 × 282 mm (excluding connectors and mounting brackets)
• Weight: 59.8 kg

Ideal Applications

The Deye 18kW Single Phase Hybrid Inverter is ideal for:

• Large residential solar and battery storage systems
• Luxury homes and estates
• Farms and agricultural operations
• Commercial and business premises
• Load-shedding and backup power solutions
• Energy storage and self-consumption projects
• Off-grid and hybrid solar installations

The Deye 18kW Single Phase Hybrid Inverter is a premium energy management solution that combines high solar input capacity, advanced battery support, intelligent monitoring, and scalable system design, making it one of the most capable single-phase hybrid inverters available for modern solar energy systems.
