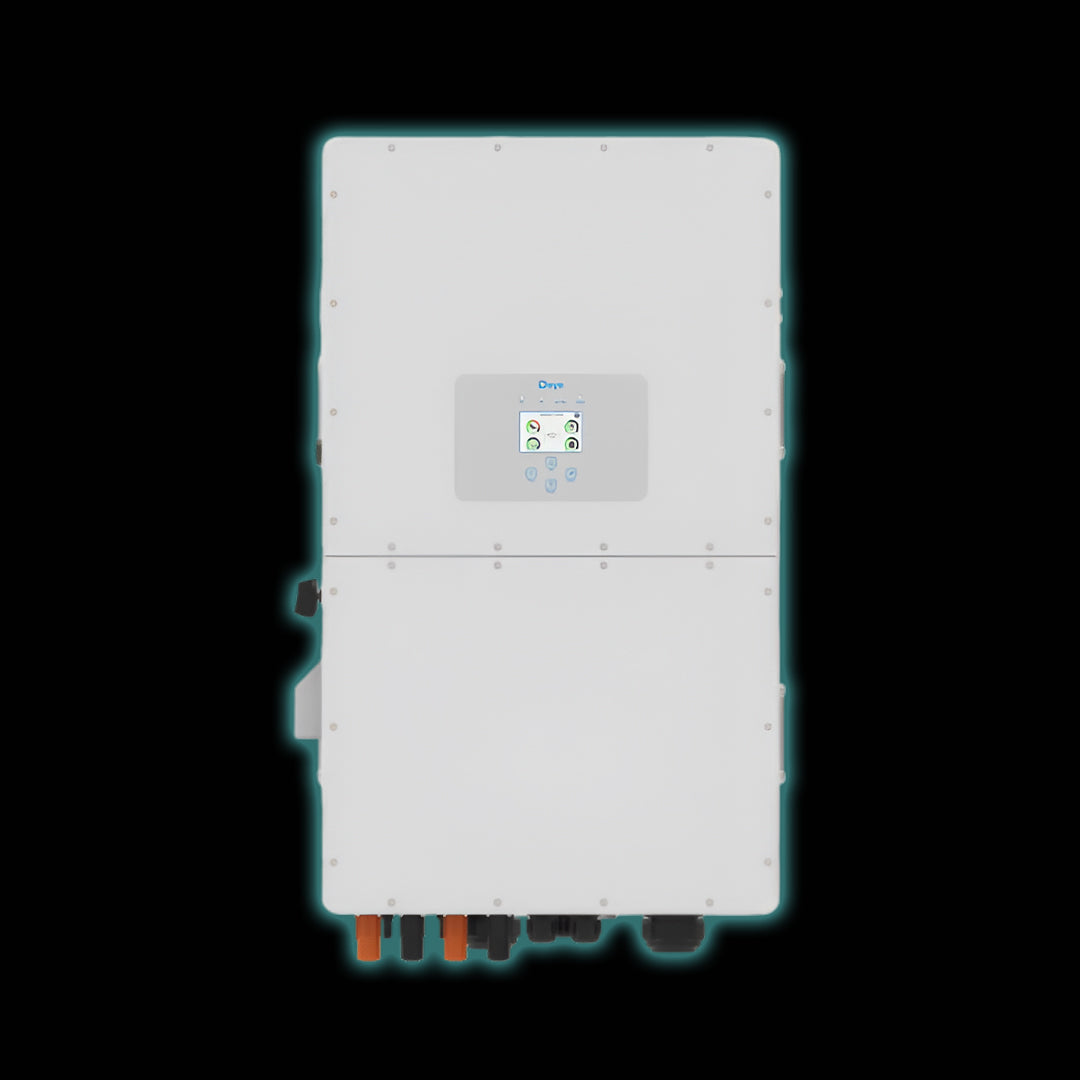

Deye 30kW Three Phase High Voltage Hybrid Inverter - 1st Generation

The Deye 30kW Three Phase High Voltage Hybrid Inverter is a powerful commercial and industrial energy management solution designed to maximize solar self-consumption, battery storage performance, and energy independence. Engineered for large residential, commercial, agricultural, and industrial solar installations, the SUN-30K-SG01HP3-EU-BM3 seamlessly integrates solar PV, high-voltage battery storage, grid power, and generator backup into a single intelligent system.

With a rated output power of 30kW, advanced hybrid functionality, and support for high-voltage lithium batteries from 160V to 800V, this inverter delivers exceptional efficiency, flexibility, and reliability for demanding energy applications.

The inverter features 3 MPPT trackers, allowing optimal energy harvesting from multiple roof orientations and solar array configurations. Its high conversion efficiency of up to 97.6% ensures maximum solar energy utilization while reducing operating costs.

Designed for both on-grid and off-grid applications, the Deye 30kW Hybrid Inverter supports battery charging and discharging currents of up to 100A, enabling fast energy storage and retrieval. It also supports generator integration, making it an ideal solution for areas with unstable grid supply or backup power requirements.

A key advantage of the Deye SUN-30K-SG01HP3-EU-BM3 is its ability to provide 100% unbalanced three-phase output, allowing each phase to deliver full power independently. This feature is particularly beneficial for commercial facilities with uneven phase loads.

The inverter supports parallel operation of up to 10 units, enabling system expansion for larger energy storage and solar installations. Its robust IP65-rated enclosure provides protection against dust and water, making it suitable for both indoor and outdoor installations.

Key Features

• 30kW Three Phase High Voltage Hybrid Inverter
• Compatible with high-voltage lithium batteries (160V–800V)
• Maximum battery charge/discharge current: 100A
• Up to 97.6% maximum efficiency
• 3 MPPT trackers for enhanced solar harvesting
• Supports on-grid, off-grid and backup power applications
• 100% unbalanced three-phase output
• AC coupling for retrofitting existing solar systems
• Generator integration for enhanced energy security
• Parallel operation of up to 10 inverters
• Intelligent battery management system (BMS) communication
• IP65 weatherproof protection rating
• Remote monitoring via WiFi, LAN, Bluetooth, 4G or GPRS (optional)
• RS485, RS232 and CAN communication interfaces
• Intelligent air cooling design
• Suitable for commercial, agricultural and industrial solar projects

Technical Specifications

• Model: SUN-30K-SG01HP3-EU-BM3
• Rated AC Output Power: 30,000W
• Maximum AC Output Power: 33,000W
• Battery Voltage Range: 160V–800V
• Maximum Charging Current: 100A
• Maximum Discharging Current: 100A
• Maximum PV Input Power: 39,000W
• Maximum PV Input Voltage: 1000V
• MPPT Voltage Range: 150V–850V
• Rated Grid Voltage: 230/400V Three Phase
• Grid Frequency: 50Hz / 60Hz
• Maximum Efficiency: 97.6%
• Protection Rating: IP65
• Cooling: Intelligent Air Cooling
• Dimensions: 527 × 894 × 294 mm
• Weight: 80 kg

Ideal Applications

The Deye 30kW Three Phase Hybrid Inverter is ideal for:

• Commercial solar energy systems
• Industrial facilities
• Farms and agricultural operations
• Warehouses and manufacturing plants
• Schools and institutions
• Large residential estates
• Grid-tied solar with battery backup
• Off-grid and hybrid power systems

The Deye SUN-30K-SG01HP3-EU-BM3 30kW High Voltage Hybrid Inverter delivers industry-leading flexibility, reliability and energy management capabilities, making it a trusted solution for large-scale solar and battery storage projects.
