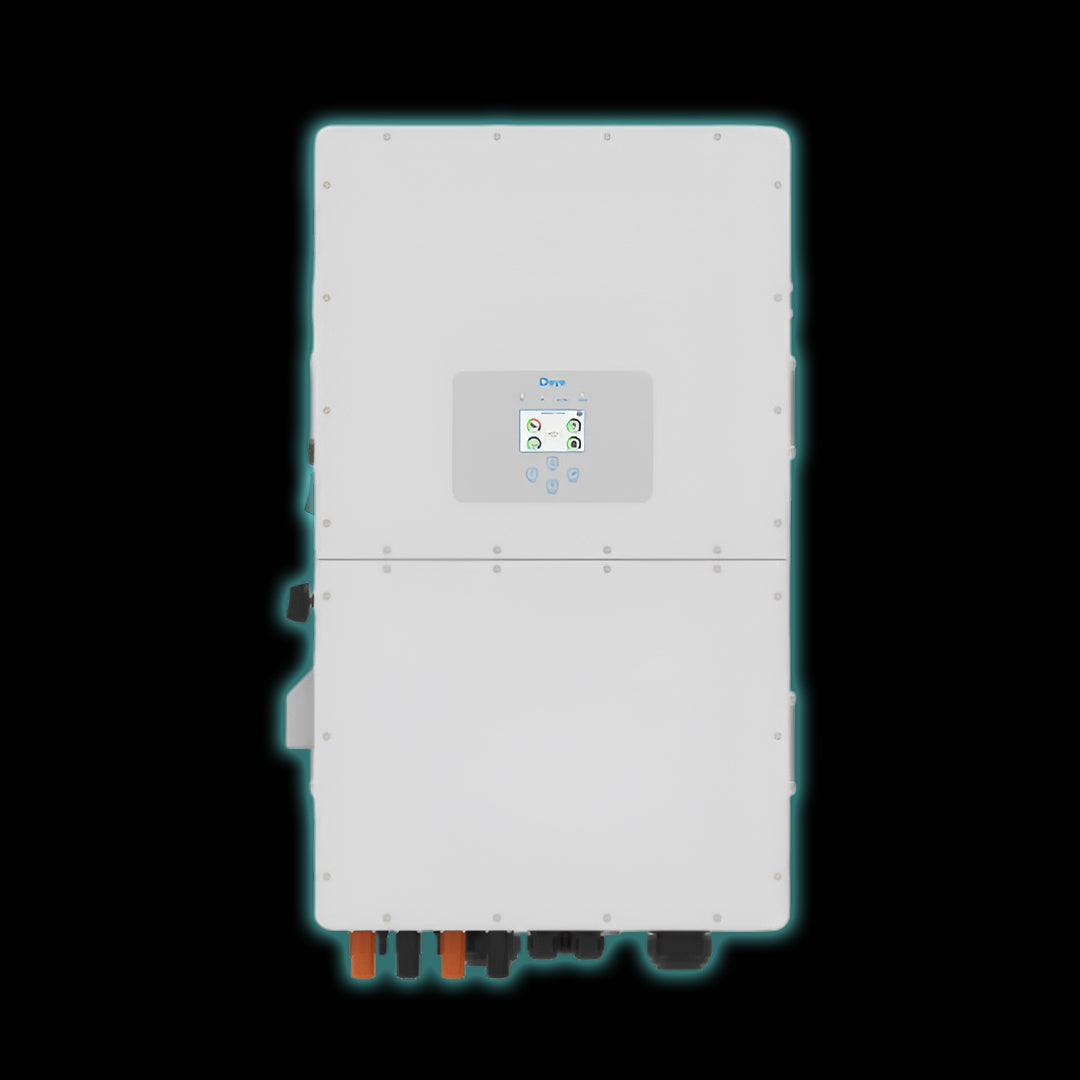

Deye 50kW Three Phase High Voltage Hybrid Inverter - 1st Generation

The Deye 50kW Three Phase High Voltage Hybrid Inverter (SUN-50K-SG01HP3-EU-BM4) is a premium commercial and industrial energy storage inverter designed for large-scale solar PV and battery systems. Combining advanced hybrid technology with high-voltage battery compatibility, this inverter enables businesses to maximize solar self-consumption, reduce electricity costs, and maintain reliable backup power during grid interruptions.

With a rated output power of 50kW and support for up to 65kW of solar PV input, the Deye 50kW Hybrid Inverter delivers exceptional performance for warehouses, factories, farms, office parks, schools, shopping centres, and commercial buildings. Its four MPPT trackers optimize energy harvest from multiple solar array orientations, ensuring maximum system efficiency throughout the day.

The inverter supports high-voltage lithium battery systems ranging from 160V to 800V, delivering improved efficiency and lower energy losses compared to low-voltage systems. It can operate in both grid-tied and off-grid modes and supports integration with diesel generators, making it ideal for areas with unreliable grid power.

Designed for scalability, the inverter supports parallel operation for larger energy storage systems and AC coupling for upgrading existing solar installations. Advanced protection features, intelligent cooling, and an IP65-rated enclosure ensure reliable operation in demanding environments.

Key Features

• 50kW three-phase hybrid inverter
• Supports high-voltage lithium batteries (160V to 800V)
• Maximum PV input power: 65kW
• Maximum DC input voltage: 1000V
• Four MPPT trackers for optimal solar production
• Up to 97.6% maximum efficiency
• 99.9% MPPT tracking efficiency
• 100% unbalanced output capability on each phase
• Grid-tied and off-grid functionality
• Generator integration support
• AC coupling for retrofitting existing solar systems
• Smart load management capability
• Parallel operation support for expanded systems
• Integrated protection against overcurrent, short circuit, reverse polarity and surge events
• CAN communication with battery BMS
• Remote monitoring and intelligent energy management

Technical Specifications

• Model: SUN-50K-SG01HP3-EU-BM4
• Rated AC Output Power: 50,000W
• Maximum AC Output Power: 55,000W
• Maximum PV Input Power: 65,000W
• Battery Voltage Range: 160V to 800V
• Maximum Charging Current: 100A
• Maximum Discharging Current: 100A
• Maximum PV Input Voltage: 1000V
• MPPT Voltage Range: 150V to 850V
• Grid Voltage: 220/380V or 230/400V Three Phase
• Frequency: 50Hz / 60Hz
• Maximum Efficiency: 97.6%
• Protection Rating: IP65
• Communication: CAN
• Cooling: Smart Cooling
• Installation: Wall-Mounted

Dimensions & Weight

• Dimensions (W × H × D): 527 × 894 × 294 mm
• Weight: 80 kg

The Deye 50kW Three Phase High Voltage Hybrid Inverter is a future-ready energy solution that combines advanced battery integration, high conversion efficiency, intelligent energy management, and robust protection features. It is ideally suited for commercial and industrial solar projects requiring reliable, scalable, and efficient energy storage performance.
