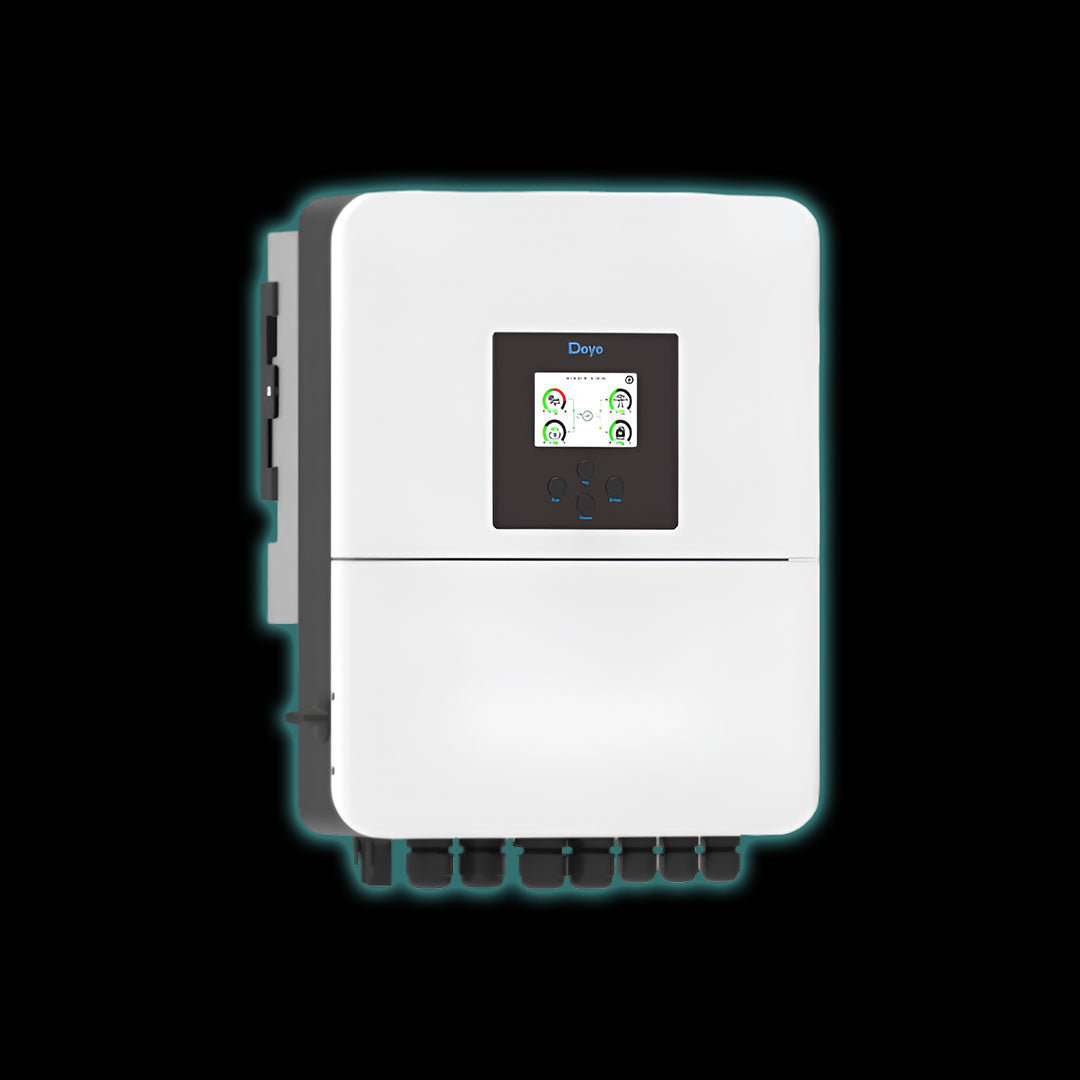

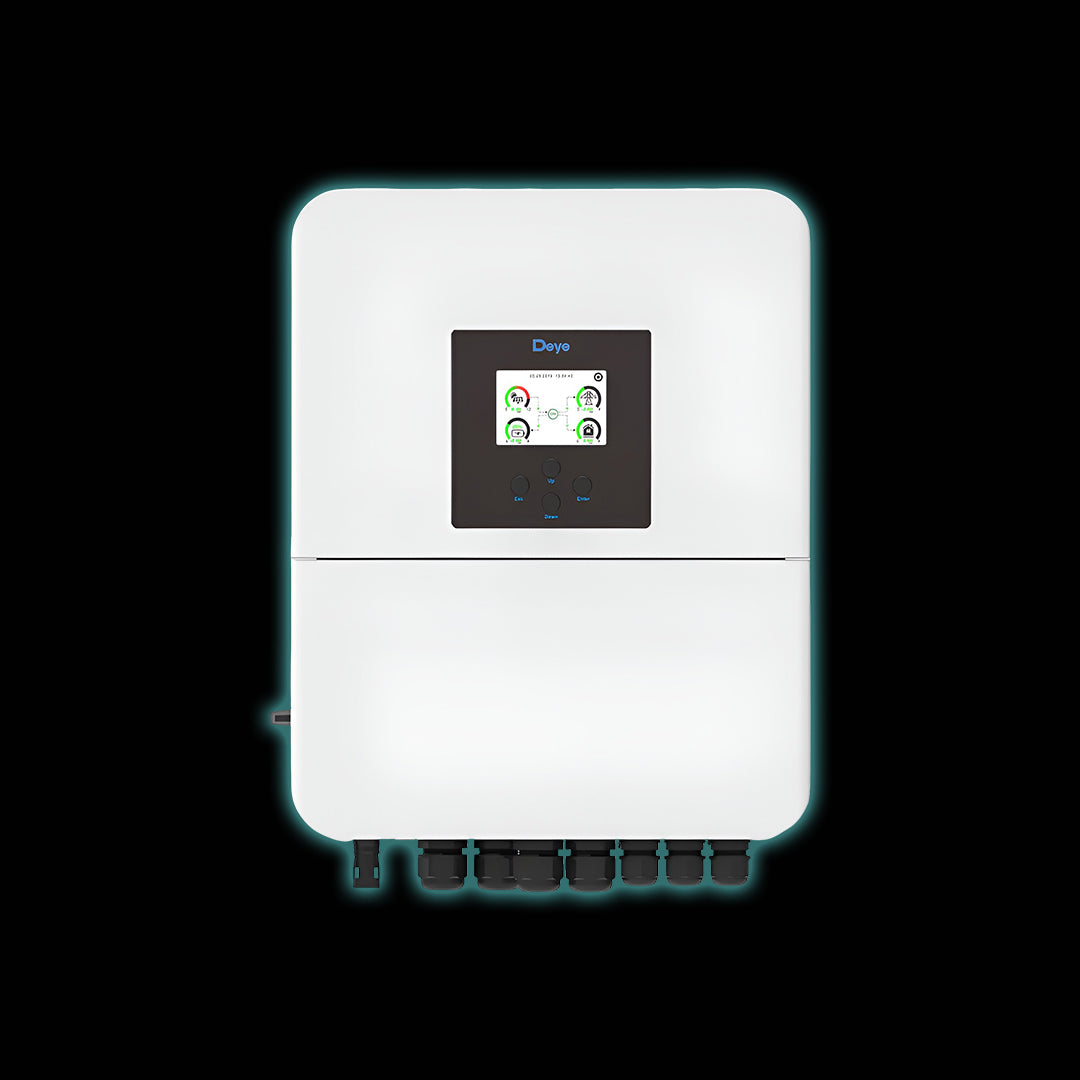

Deye 5kW Single Phase Low Voltage Hybrid Inverter - 2nd Generation

The Deye 5kW Single Phase Low Voltage Hybrid Inverter (2nd Generation) is a powerful and intelligent energy management solution designed for residential and light commercial solar installations. Combining solar power generation, battery storage, grid connectivity, and backup power functionality in a single unit, this advanced hybrid inverter helps maximise energy independence while reducing electricity costs.

Built for compatibility with both lithium-ion and lead-acid batteries, the inverter supports low-voltage battery systems (40V–60V) and delivers up to 140A charging and discharging current for fast battery performance and reliable backup power. Its advanced energy management capabilities allow seamless switching between solar, battery, grid, and generator power sources.

With support for both on-grid and off-grid operation, the Deye 5kW Hybrid Inverter is ideal for homes and businesses looking to protect themselves against power outages, load shedding, and rising energy costs. The system can also be expanded through parallel operation of up to 16 units, making it suitable for larger energy storage requirements.

Key Features

• 5kW single-phase hybrid solar inverter
• Low-voltage battery compatibility (40V–60V)
• Supports lithium-ion and lead-acid batteries
• Maximum charging current: 140A
• Maximum discharging current: 140A
• Dual MPPT technology for increased solar harvest
• Maximum PV input power: 10,000W
• Maximum inverter efficiency: 97.6%
• Supports on-grid, off-grid and backup power applications
• Parallel operation of up to 16 units
• AC coupling support for retrofitting existing solar systems
• Generator integration support
• Six programmable battery charging and discharging schedules
• Colour touchscreen LCD display
• IP65-rated weather-resistant design
• Optional WiFi, Bluetooth, LAN, 4G and GPRS monitoring

Advanced Energy Management

The Deye 5kW Hybrid Inverter intelligently manages energy flow between solar panels, batteries, household loads, the utility grid, and generators. This ensures optimal self-consumption of solar energy, reduced reliance on the grid, improved battery lifespan, and uninterrupted power supply during outages.

Applications

• Residential solar and battery backup systems
• Load shedding and power outage protection
• Hybrid solar energy systems
• Off-grid solar installations
• Energy storage projects
• Existing solar system upgrades using AC coupling

Technical Specifications

• Rated Output Power: 5,000W
• Maximum PV Input Power: 10,000W
• Battery Voltage Range: 40V–60V
• Maximum Charge Current: 140A
• Maximum Discharge Current: 140A
• Maximum Efficiency: 97.6%
• MPPT Efficiency: >99%
• Protection Rating: IP65
• Dimensions: 376 × 470 × 241.5 mm
• Weight: 19kg

The Deye 5kW Single Phase Low Voltage Hybrid Inverter – 2nd Generation offers a reliable, scalable, and future-ready solution for solar energy storage, backup power, and energy independence. Its combination of high efficiency, flexible battery compatibility, advanced monitoring, and robust protection features makes it one of the most popular hybrid inverter choices for modern residential and commercial solar installations.
