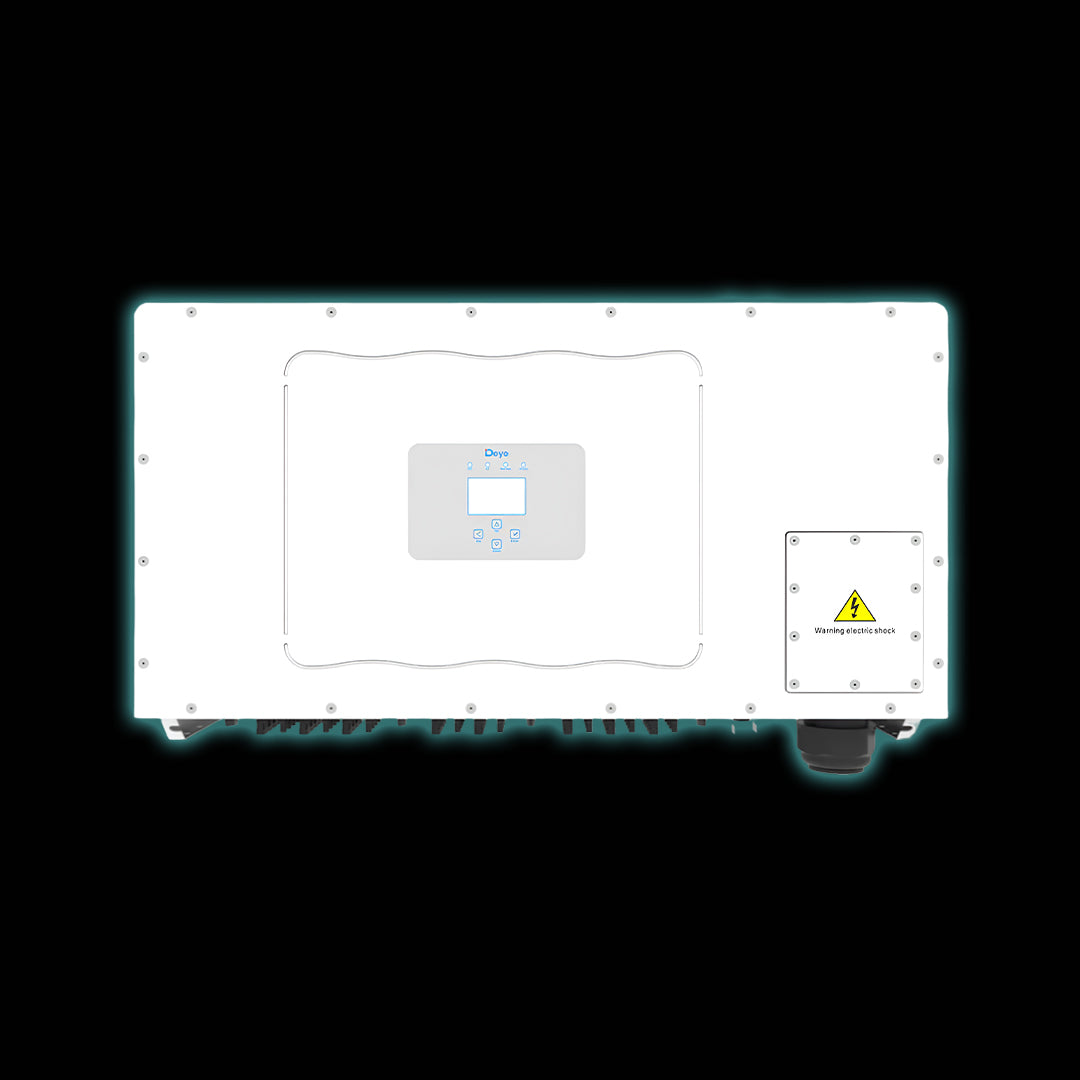

Deye 60kW Grid Tied Inverter Three Phase Low Voltage

Deye 60kW Grid Tied Inverter Three Phase Low Voltage

R 41,772.00 ZAR
R 41,772.00 ZAR
Sale Sold out
Tax included.

CONTACT US FOR RESELLER PRICING

The Deye SUN-60K-G01P3-EU-AM8-LV 60kW Three Phase Low Voltage Grid-Tied Inverter is a high-efficiency commercial solar inverter engineered for businesses, agricultural facilities, industrial operations, and large-scale photovoltaic installations. Designed to deliver reliable performance and maximum energy production, this advanced three-phase string inverter achieves up to 98.7% efficiency and features 8 MPPT trackers for superior solar energy harvesting across complex PV array configurations.

Built specifically for low-voltage three-phase systems, the inverter supports 127V/220V and 133V/230V grid configurations, making it an ideal solution for commercial and industrial solar projects requiring efficient grid integration and dependable energy conversion. The wide MPPT voltage range of 200V to 700V ensures optimal performance in varying weather conditions and throughout the day.

The Deye 60kW Grid-Tied Inverter incorporates advanced protection features including DC reverse polarity protection, AC overcurrent protection, AC overvoltage protection, short-circuit protection, thermal protection, insulation monitoring, ground fault monitoring, residual current detection, and anti-islanding protection. Integrated Type II DC and AC surge protection helps safeguard the system against electrical disturbances and lightning-related events.

With its IP65-rated enclosure and intelligent air-cooling system, this inverter is designed for reliable outdoor operation in demanding environments. Optional smart monitoring functions and communication capabilities via RS485, RS232, WiFi, Bluetooth, 4G, and LAN enable remote system management and real-time performance tracking.

Key Features

  • 60kW three-phase low-voltage grid-tied solar inverter
  • Supports 127V/220V and 133V/230V three-phase systems
  • Maximum efficiency of 98.7%
  • 8 independent MPPT trackers for maximum energy yield
  • Maximum PV input voltage of 800V
  • Wide MPPT voltage range of 200V to 700V
  • Intelligent air-cooling technology
  • IP65-rated weather-resistant design
  • Type II DC and AC surge protection
  • Anti-islanding and earth fault detection
  • Optional AFCI (Arc Fault Circuit Interrupter) protection
  • Zero export application support
  • Virtual Synchronous Generator (VSG) functionality
  • Advanced monitoring via WiFi, Bluetooth, 4G, LAN, RS485 and RS232

Technical Specifications

  • Model: Deye SUN-60K-G01P3-EU-AM8-LV
  • Rated AC Output Power: 60kW
  • Maximum AC Apparent Power: 60kVA
  • Maximum PV Input Voltage: 800V
  • Start-Up Voltage: 250V
  • MPPT Voltage Range: 200V – 700V
  • Rated PV Input Voltage: 500V
  • Number of MPPT Trackers: 8
  • Maximum Efficiency: 98.7%
  • MPPT Efficiency: Greater than 99%
  • Protection Rating: IP65
  • Operating Temperature: -25°C to +60°C
  • Cooling Method: Intelligent Air Cooling
  • Dimensions (W Ă— H Ă— D): 1006 Ă— 516 Ă— 325.5 mm
  • Weight: 103 kg
  • Warranty: 5 Years

The Deye 60kW Grid Tied Inverter Three Phase Low Voltage is an excellent choice for commercial and industrial solar projects requiring high efficiency, advanced monitoring, robust protection, and dependable low-voltage three-phase operation. Its combination of intelligent energy management, durable construction, and industry-leading performance makes it a trusted solution for modern solar power systems.
