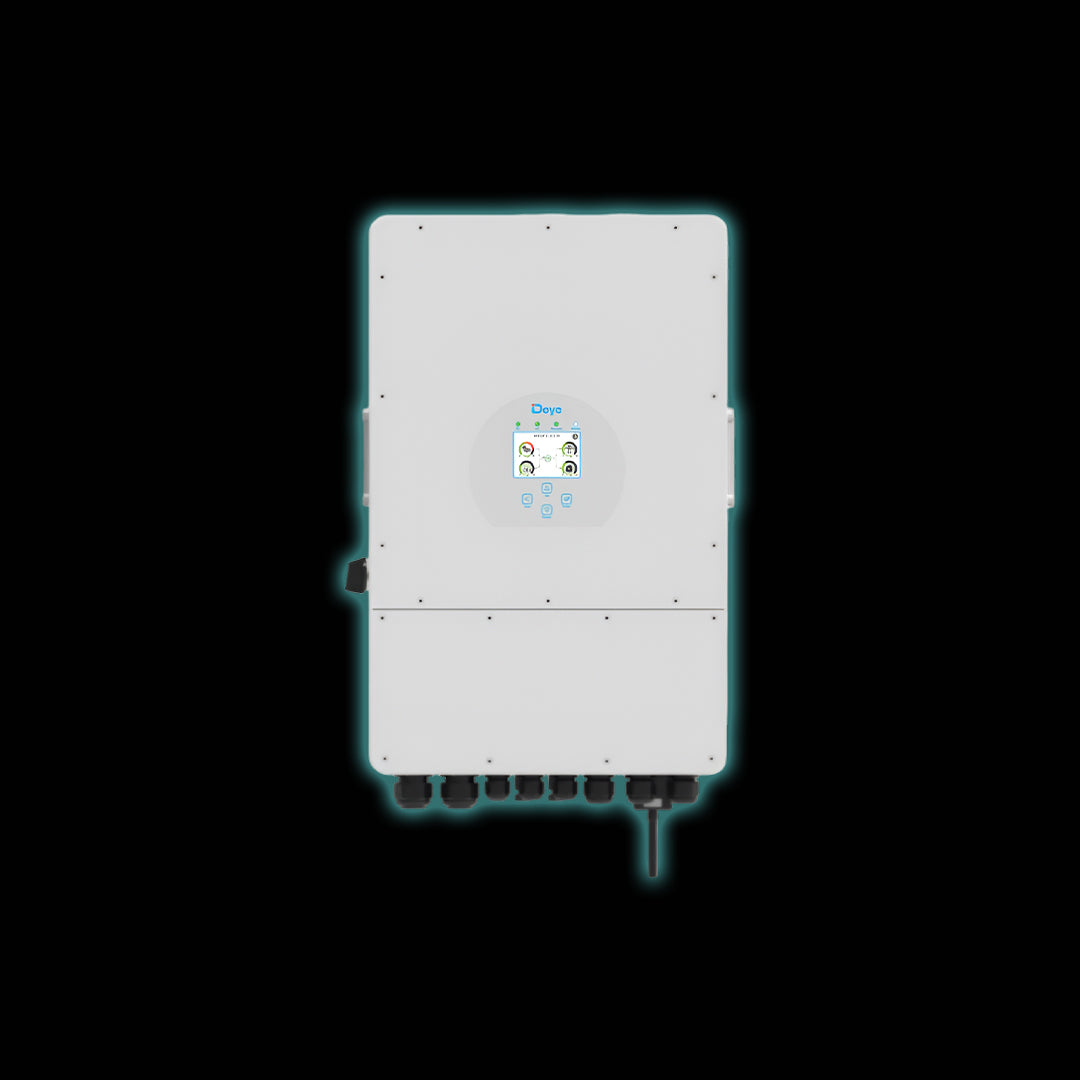

Deye 6kW Single Phase Low Voltage Hybrid Inverter - 1st Generation

The Deye 6kW Single Phase Low Voltage Hybrid Inverter is a high-performance energy storage solution designed for residential and light commercial solar power systems. Combining solar generation, battery storage, grid connectivity, and generator support in a single intelligent platform, this inverter helps maximise energy independence, reduce electricity costs, and ensure reliable backup power during load shedding and power outages.

Compatible with 48V lithium-ion and lead-acid batteries, the Deye SUN-6K-SG01LP1 delivers a rated output power of 6,000W and achieves up to 97.6% efficiency for optimal energy conversion. Dual MPPT technology maximises solar energy harvest by tracking multiple solar array inputs independently, improving overall system performance even when panels face different directions.

Designed for both new installations and retrofitting existing solar systems, the inverter supports AC coupling and DC coupling, providing exceptional flexibility. Advanced energy management features include programmable charging and discharging schedules, generator integration, UPS functionality, and support for up to 16 inverters in parallel for larger installations.

Key Features

• 6kW Single Phase Hybrid Inverter
• Compatible with 48V Lithium-ion and Lead-acid Batteries
• Up to 97.6% Maximum Efficiency
• Dual MPPT Solar Tracking Technology
• Maximum PV Input Power: 7,800W
• Maximum Battery Charge Current: 135A
• Maximum Battery Discharge Current: 135A
• Supports AC-Coupled and DC-Coupled Systems
• Generator Integration for Backup Power Applications
• Seamless UPS Functionality
• Parallel Operation of up to 16 Units
• Colour Touchscreen LCD Display
• IP65-Rated Weatherproof Design
• Integrated DC and AC Surge Protection
• Smart Cooling System with Low Noise Operation
• RS485 and CAN Communication for Advanced Battery Integration

Technical Specifications

• Model: SUN-6K-SG01LP1
• Rated AC Output Power: 6,000W
• Maximum AC Output Power: 6,600W
• Battery Voltage Range: 40V - 60V
• Maximum PV Input Power: 7,800W
• MPPT Voltage Range: 125V - 425V
• Number of MPPT Trackers: 2
• Maximum Efficiency: 97.6%
• Protection Rating: IP65
• Communication Ports: RS485, CAN
• Weight: 32kg
• Dimensions: 420 × 670 × 233 mm (W × H × D)
• Mounting Type: Wall Mounted
• Warranty: 5 Years

Ideal Applications

The Deye 6kW Low Voltage Hybrid Inverter is ideal for homes, small businesses, farms, and hybrid solar installations that require efficient solar energy management, battery backup, and reliable power continuity. Its scalable design and advanced energy management capabilities make it one of the most versatile hybrid inverters available for modern solar energy systems.
