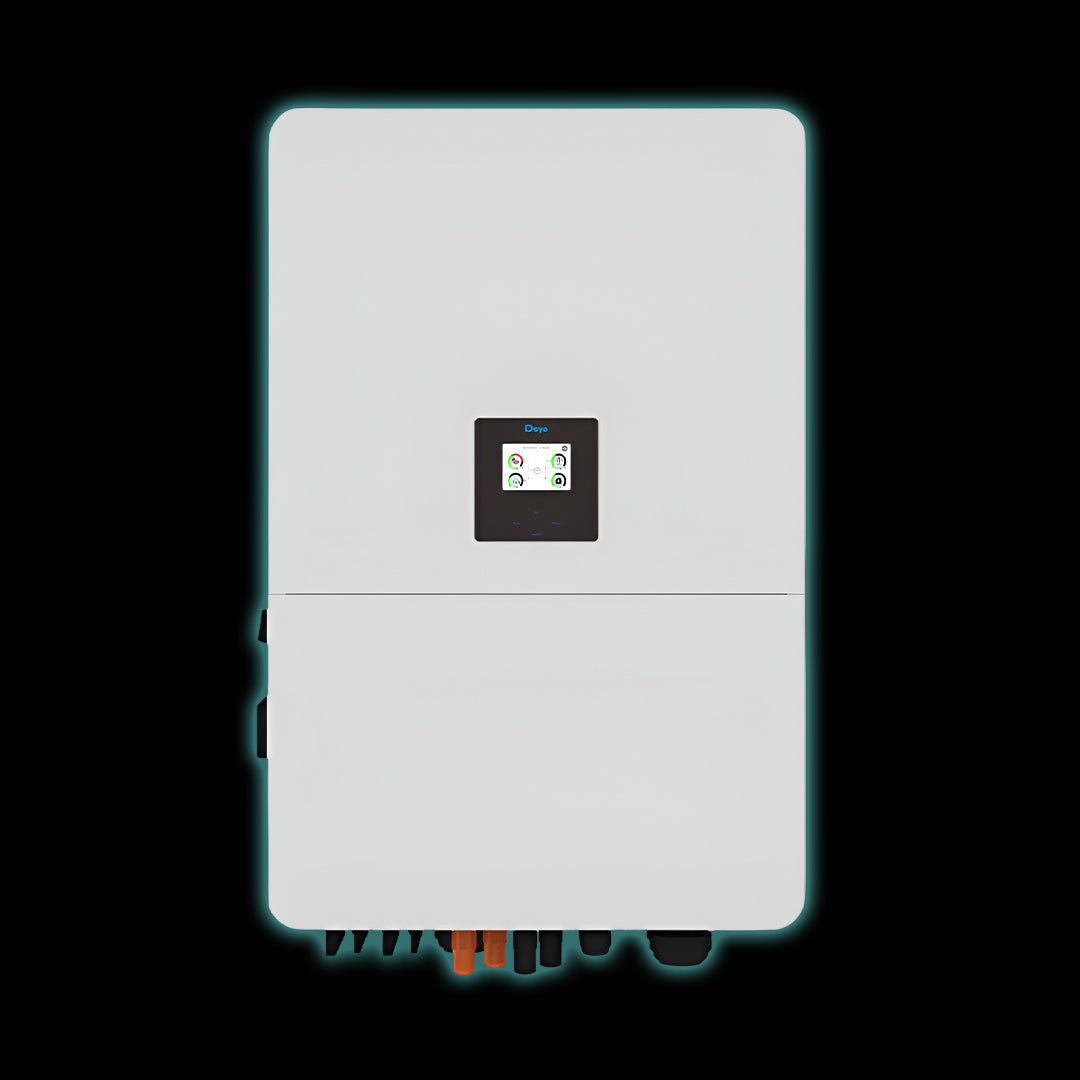

Deye 80kW Three Phase High Voltage Hybrid Inverter - 1st Generation

The Deye 80kW Three Phase High Voltage Hybrid Inverter (SUN-80K-SG02HP3-EU-EM6) is a premium commercial and industrial energy storage solution designed for large-scale solar applications. Combining solar PV, high-voltage battery storage, grid connectivity, and generator support into a single intelligent platform, this inverter delivers exceptional performance, reliability, and energy management capabilities.

With a rated output power of 80kW, support for high-voltage lithium batteries from 160V to 1000V, and a maximum PV input capacity of 160kW, this inverter is ideal for factories, warehouses, office parks, shopping centres, agricultural operations, schools, hospitals, and commercial energy storage projects.

Key Features

• 80kW three-phase high-voltage hybrid inverter.
• Supports lithium battery voltage range of 160V to 1000V.
• Maximum solar PV input power of 160kW.
• Up to 160A battery charging and discharging capability.
• 6 MPPT trackers for superior solar harvesting and flexible array design.
• Maximum efficiency of 97.6%.
• Supports up to 10 units in parallel for scalable systems.
• 100% unbalanced output across all three phases.
• AC coupling support for retrofitting existing solar installations.
• Compatible with diesel generator charging and backup systems.
• Six programmable battery charging and discharging time periods.
• IP65-rated enclosure for indoor and outdoor installations.
• Advanced communication options including WiFi, Bluetooth, 4G, LAN, RS485, RS232, and CAN.

Technical Specifications

• Model: SUN-80K-SG02HP3-EU-EM6
• Rated Output Power: 80kW
• Maximum PV Input Power: 160kW
• Battery Voltage Range: 160V – 1000V
• Maximum Efficiency: 97.6%
• MPPT Trackers: 6
• Maximum Charging/Discharging Current: 160A
• Grid Connection: Three Phase (3L+N+PE)
• Ingress Protection Rating: IP65
• Cooling Method: Intelligent Air Cooling
• Operating Temperature: -40°C to +60°C
• Dimensions (W x H x D): 606 × 927 × 314 mm (excluding connectors and brackets)
• Weight: 97.5 kg
• Communication Interfaces: RS485, RS232, CAN, WiFi, Bluetooth, 4G, LAN

Intelligent Energy Management

Designed for advanced energy optimisation, the Deye 80kW Hybrid Inverter enables peak shaving, load shifting, self-consumption optimisation, backup power management, and energy arbitrage. Businesses can reduce electricity costs while improving energy independence and operational resilience.

Safety and Protection

The inverter includes comprehensive protection features such as DC reverse polarity protection, AC overcurrent protection, short-circuit protection, thermal protection, surge protection, anti-islanding protection, insulation monitoring, ground fault detection, and optional Arc Fault Circuit Interruption (AFCI).

Applications

Ideal for commercial solar systems, industrial facilities, warehouses, manufacturing plants, agricultural operations, shopping centres, schools, healthcare facilities, and large-scale energy storage projects that require reliable three-phase power and advanced battery integration.

The Deye 80kW Three Phase High Voltage Hybrid Inverter offers industry-leading efficiency, flexible system design, intelligent energy management, and dependable performance, making it a trusted choice for commercial and industrial solar energy solutions.
