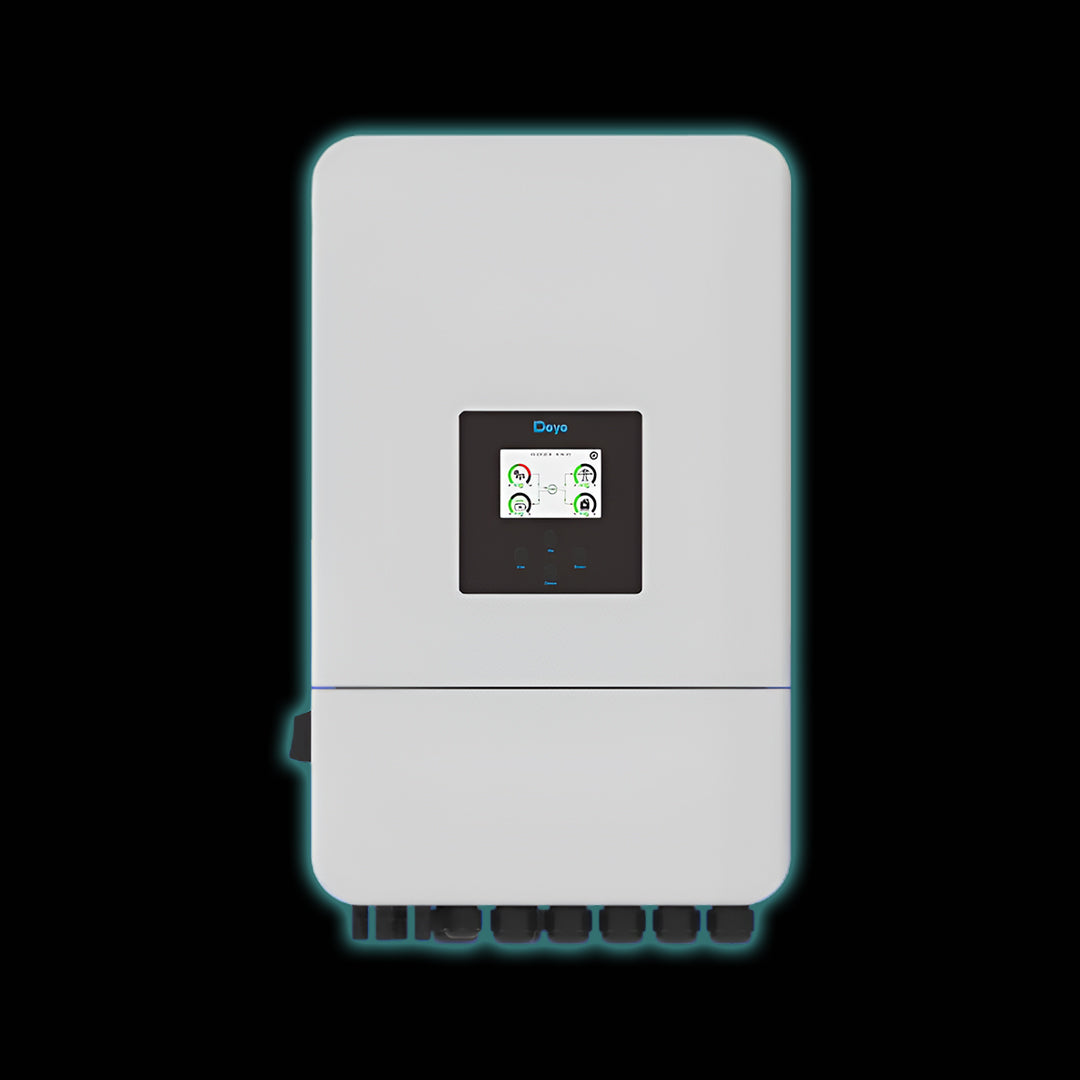

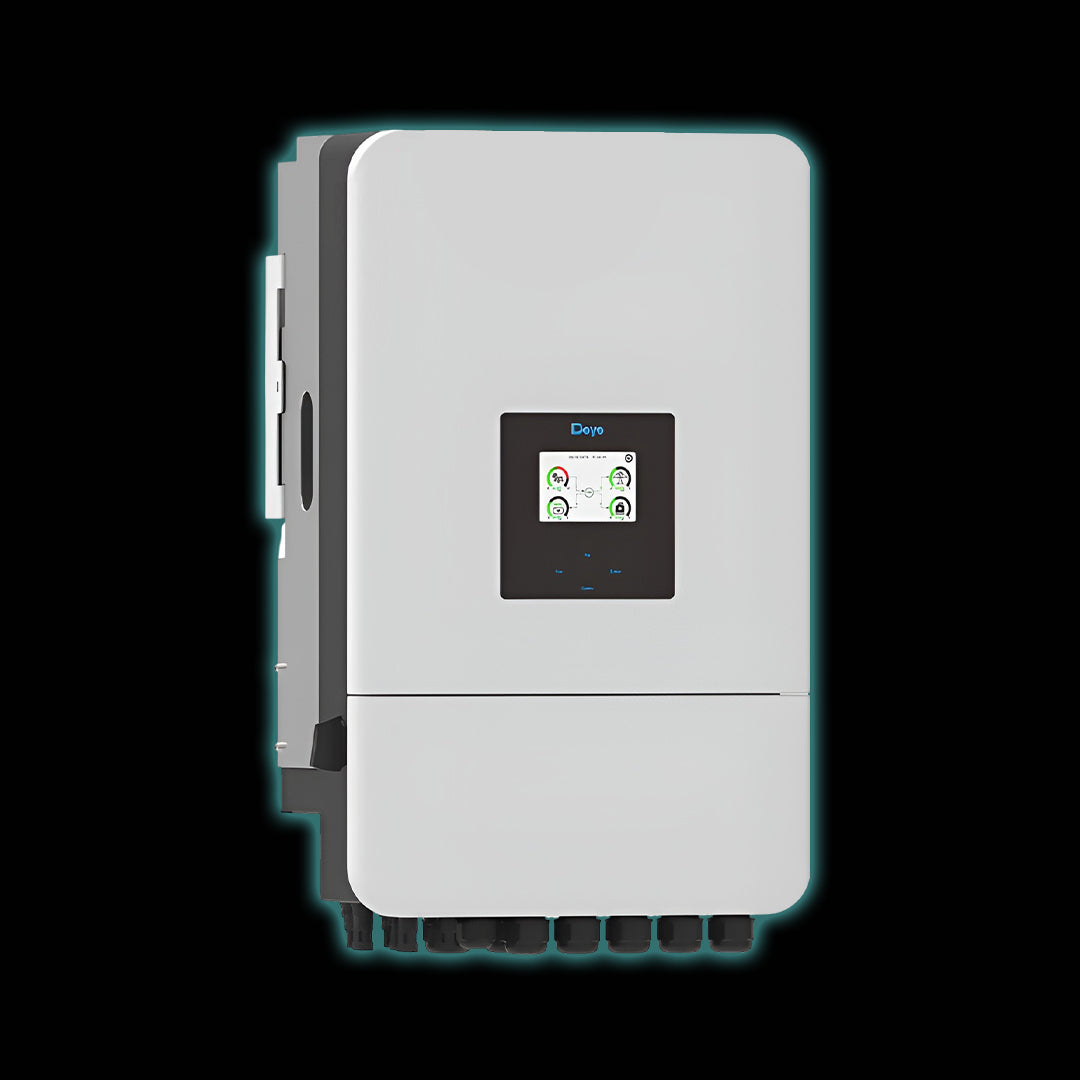

Deye 8kW Single Phase Low Voltage Hybrid Inverter - 2nd Generation

The Deye 8kW Single Phase Low Voltage Hybrid Inverter (2nd Generation) is a premium hybrid solar inverter designed to deliver reliable, intelligent energy management for residential and light commercial installations. Combining solar power generation, battery storage, grid integration, and generator support into a single advanced solution, this inverter helps maximise energy independence while reducing electricity costs.

Designed for compatibility with 48V lithium-ion and lead-acid battery systems, the Deye SUN-8K-SG05LP1-EU-SM2 offers an impressive 8kW rated output power and supports up to 16 units in parallel for larger energy storage applications. Its advanced dual MPPT technology optimises solar energy production by tracking multiple solar arrays independently, ensuring maximum efficiency throughout the day.

With a maximum PV input of 16,000W, charging and discharging currents of up to 190A, and an efficiency rating of up to 97.6%, this hybrid inverter is engineered for high-performance solar energy systems. The inverter also supports AC coupling, allowing easy integration into existing solar installations, while generator charging functionality provides added flexibility during extended power outages.

The integrated colour touch-screen LCD provides intuitive monitoring and control, while optional WiFi, Bluetooth, LAN, 4G, and GPRS connectivity enable remote system management and real-time performance tracking. Its IP65-rated enclosure and intelligent air-cooling system ensure long-term durability in a wide range of environmental conditions.

Key Features

• 8kW single-phase hybrid solar inverter
• Compatible with 48V lithium-ion and lead-acid batteries
• Maximum PV input power: 16,000W
• Dual MPPT trackers for enhanced solar harvesting
• Maximum charging current: 190A
• Maximum discharging current: 190A
• Supports up to 16 inverters in parallel
• AC coupling for retrofit solar systems
• Generator charging and backup support
• Six programmable battery charge and discharge schedules
• Colour touch-screen LCD display
• Remote monitoring via WiFi, Bluetooth, LAN, 4G, or GPRS (optional)
• IP65-rated protection for indoor and outdoor installation
• Peak efficiency up to 97.6%
• Comprehensive safety and protection features

Technical Specifications

• Model: SUN-8K-SG05LP1-EU-SM2
• Rated Output Power: 8,000W
• Maximum AC Output Power: 8,800W
• Battery Voltage Range: 40V-60V
• Maximum PV Input Voltage: 500V
• MPPT Voltage Range: 150V-425V
• Number of MPPTs: 2
• Cooling: Intelligent Air Cooling
• Protection Rating: IP65
• Dimensions: 366 × 589.5 × 237 mm
• Weight: 26.8 kg

Ideal for homes, businesses, farms, and backup power systems, the Deye 8kW Single Phase Low Voltage Hybrid Inverter 2nd Generation delivers exceptional performance, energy efficiency, and reliable power security. Whether installed in a new solar project or integrated into an existing system, it provides a future-ready solution for modern energy storage and solar power management.
