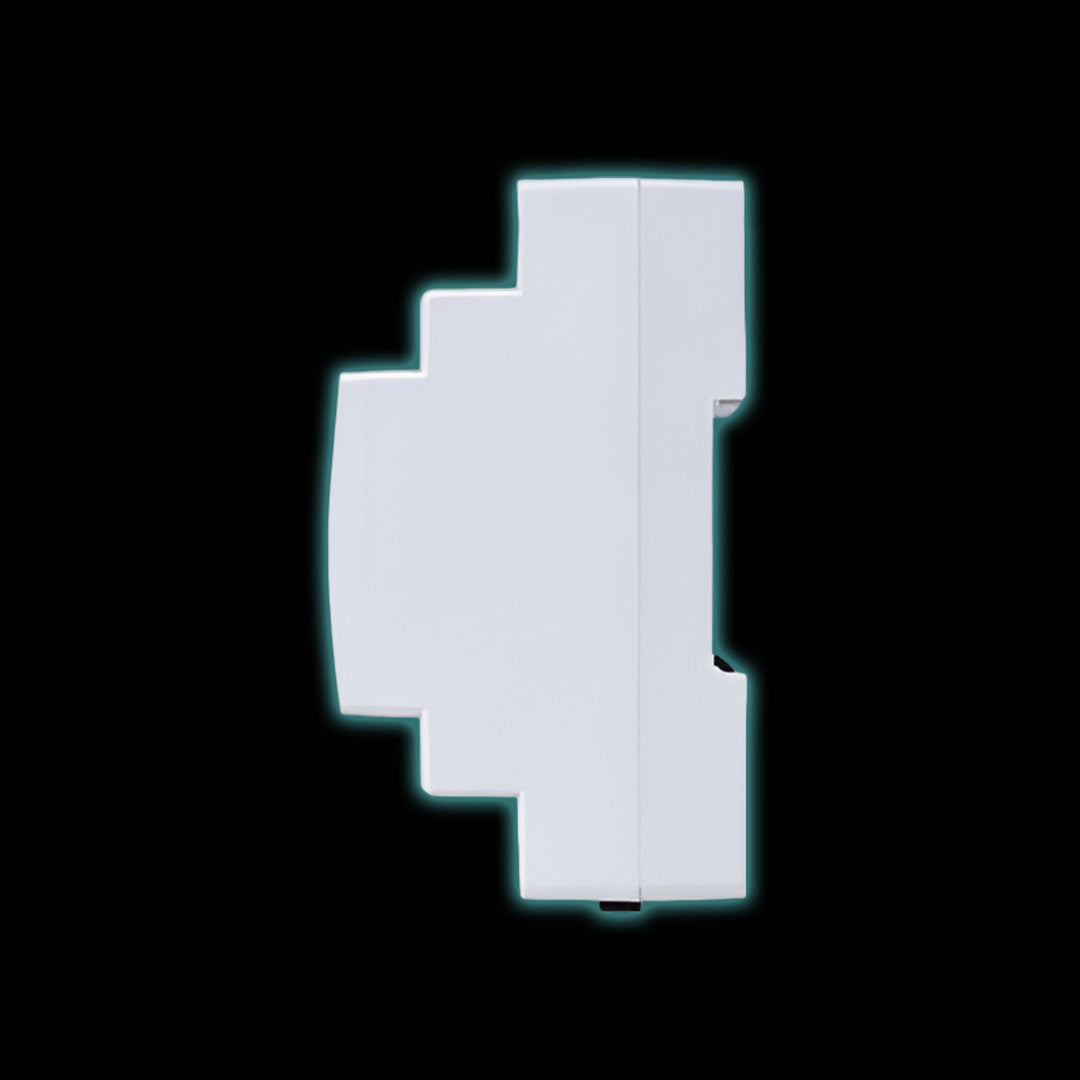

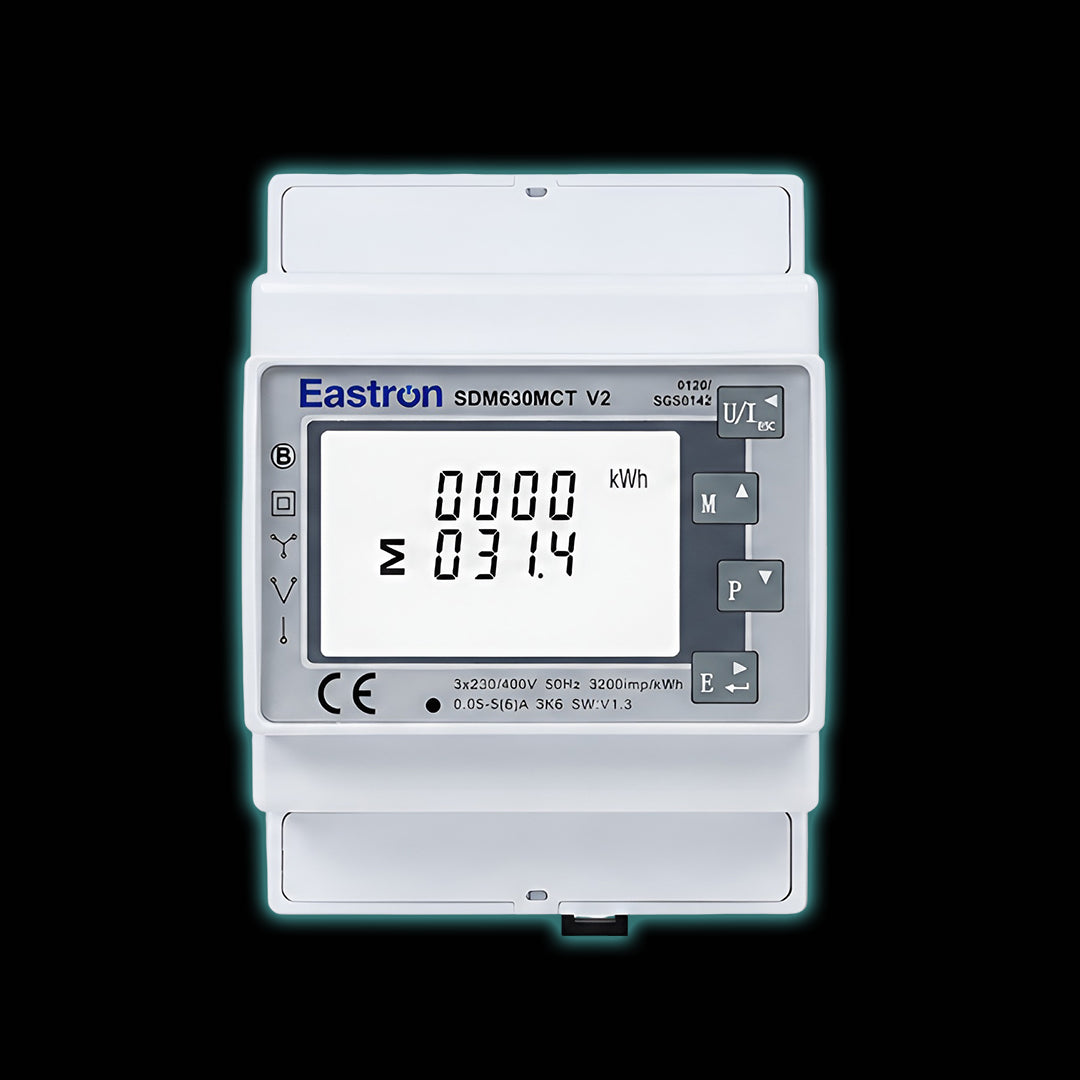

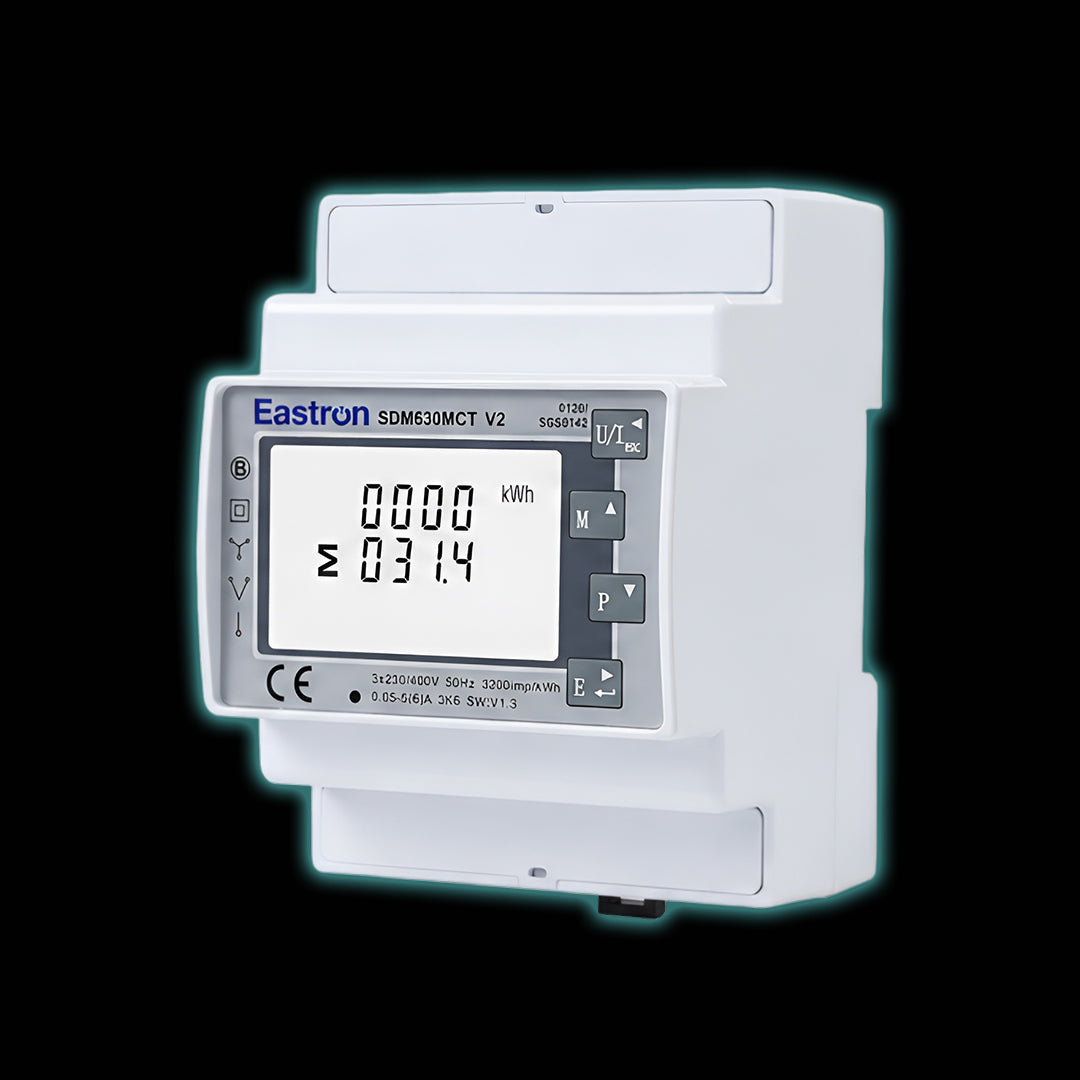

Eastron DIN Rail Mounted Three Phase CT SDM630MCT

The Eastron SDM630MCT is a high-performance DIN rail mounted three-phase energy meter designed for accurate electrical energy monitoring in commercial, industrial, and renewable energy installations. Operating with external current transformers (CTs), this multifunction energy meter delivers precise measurement of energy consumption and electrical parameters, making it ideal for sub-metering, energy management systems, tenant billing, building automation, and power monitoring applications.

Designed for flexibility and reliability, the SDM630MCT supports three-phase four-wire, three-phase three-wire, and single-phase systems. The meter provides comprehensive real-time monitoring of active energy (kWh), reactive energy (kVarh), voltage, current, active power, reactive power, apparent power, frequency, power factor, demand, and total harmonic distortion (THD).

The integrated backlit LCD display allows easy viewing of system measurements, while RS485 Modbus RTU communication enables seamless integration with Building Management Systems (BMS), Energy Management Systems (EMS), SCADA platforms, and industrial automation networks. Bi-directional energy measurement supports both imported and exported energy monitoring, making it suitable for solar PV and other distributed energy systems.

Key Features

• Three-phase CT-operated energy meter

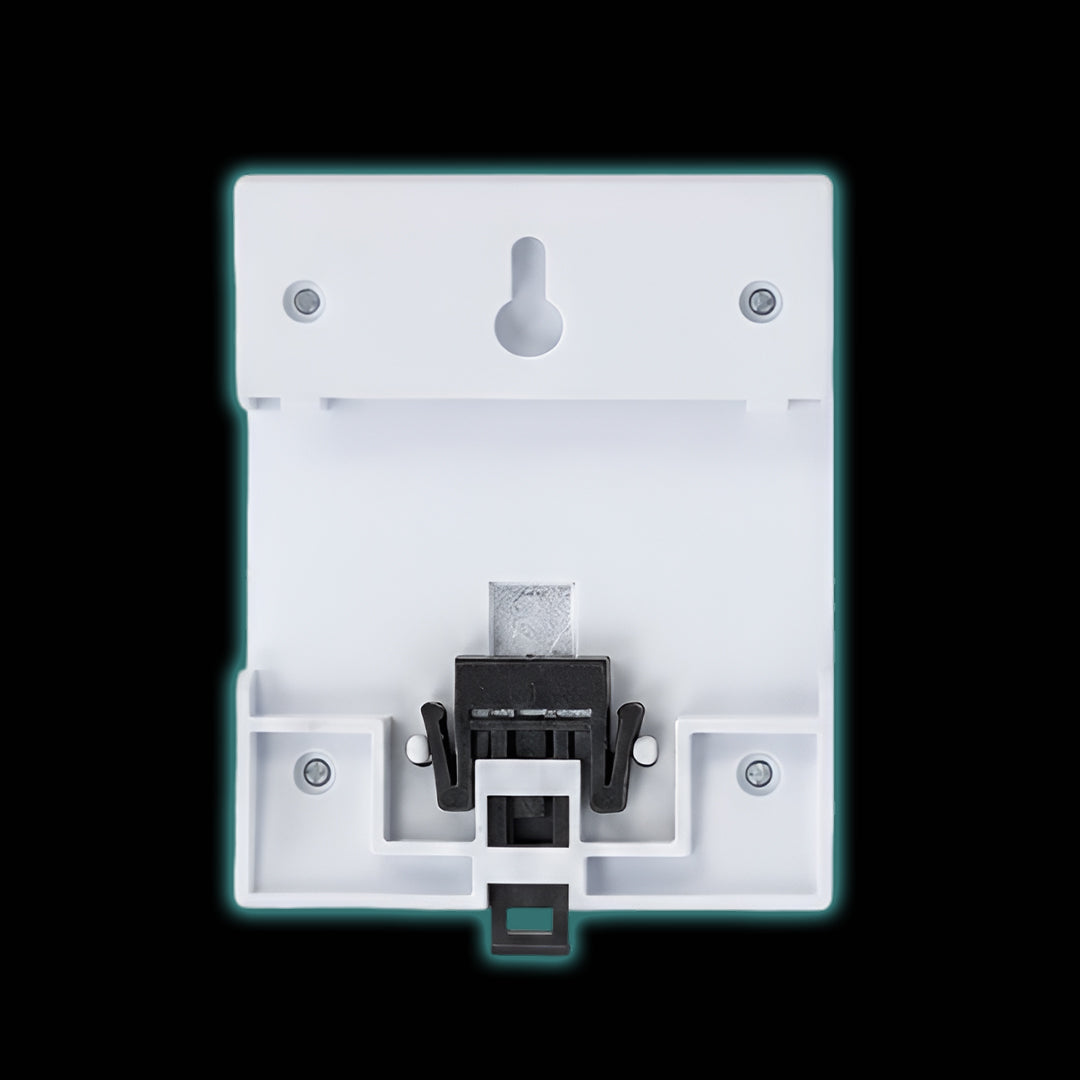

• DIN rail mounting for quick and secure installation
• Supports 1A and 5A current transformer inputs
• Measures kWh, kVarh, voltage, current, power, power factor, frequency, demand, and THD
• Bi-directional energy monitoring for import and export energy measurement
• RS485 Modbus RTU communication
• Dual configurable pulse outputs
• Class 1.0 active energy accuracy
• Backlit LCD display for clear data visibility
• Suitable for commercial, industrial, and renewable energy applications
• IP51 protection rating for indoor installations

Typical Applications

• Energy sub-metering
• Commercial building energy management
• Industrial power monitoring
• Tenant billing and cost allocation
• Solar PV monitoring
• Electrical distribution panels
• Building Management Systems (BMS)
• Factory and process automation systems

Technical Specifications

• Nominal Voltage: 3 × 230/400V AC
• Current Input: 1A or 5A CT operated
• Frequency: 50/60Hz
• Communication: RS485 Modbus RTU
• Pulse Outputs: 2 configurable outputs
• Accuracy Class: Class 1.0 Active Energy
• Display: Backlit LCD
• Mounting Type: DIN Rail Mounted
• Protection Rating: IP51

The Eastron SDM630MCT is a trusted solution for accurate three-phase energy measurement, advanced power monitoring, and intelligent energy management. Its combination of CT-operated flexibility, Modbus connectivity, and comprehensive electrical parameter measurement makes it an excellent choice for modern energy monitoring and smart building applications.
